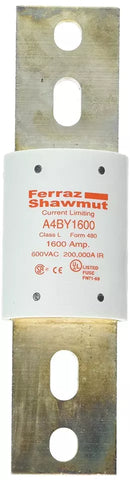

A4BY1600 - Mersen 1600A 600V Class L Time Delay Fuse, Current Limiting, 4 Second Delay

A4BY1600

A4BY1600 is a Mersen Class L time delay fuse rated for 1600 amps and 600 volts AC, designed for reliable current limiting protection.This fuse features a 4 second time delay and current limiting capability, with a physical size of 3 inches diameter by 10 3/4 inches length. It is UL Class L listed and CSA certified, suitable for harsh environments with a glass melamine body and plated terminals. The fuse has an AC interrupting rating of 200,000 AIC and DC interrupting rating of 100,000 AIC, with blade-stamped catalog numbers for permanent identification and unique dimensions to prevent replacement by other fuse classes.

Key Specifications
• Amperage: 1600 Amps
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Class L, Time Delay
• Interrupt Rating: 200,000 AIC AC, 100,000 AIC DC
• Physical Size: 3" diameter x 10 3/4" length
• Mounting Type: Blade
• Body Material: Glass Melamine
• Terminal Material: Plated Copper
• Certifications: UL Listed (File E2137), CSA Certified
• Current Limiting: Yes
• Time Delay: 4 seconds
• Unique Dimensions to prevent interchangeability

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BY1600
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : AKR Series
• Type : A4BY
• Voltage : 600
• Amperage : 1600
• AIC rating : 200kA@600V
• Diameter : 3
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 782001939205
• GTIN : 00782001939205
• Weight : 10
