A4BY1500 - Mersen Ferraz Shawmut 1500A 600V Class L Time Delay Fuse

A4BY1500

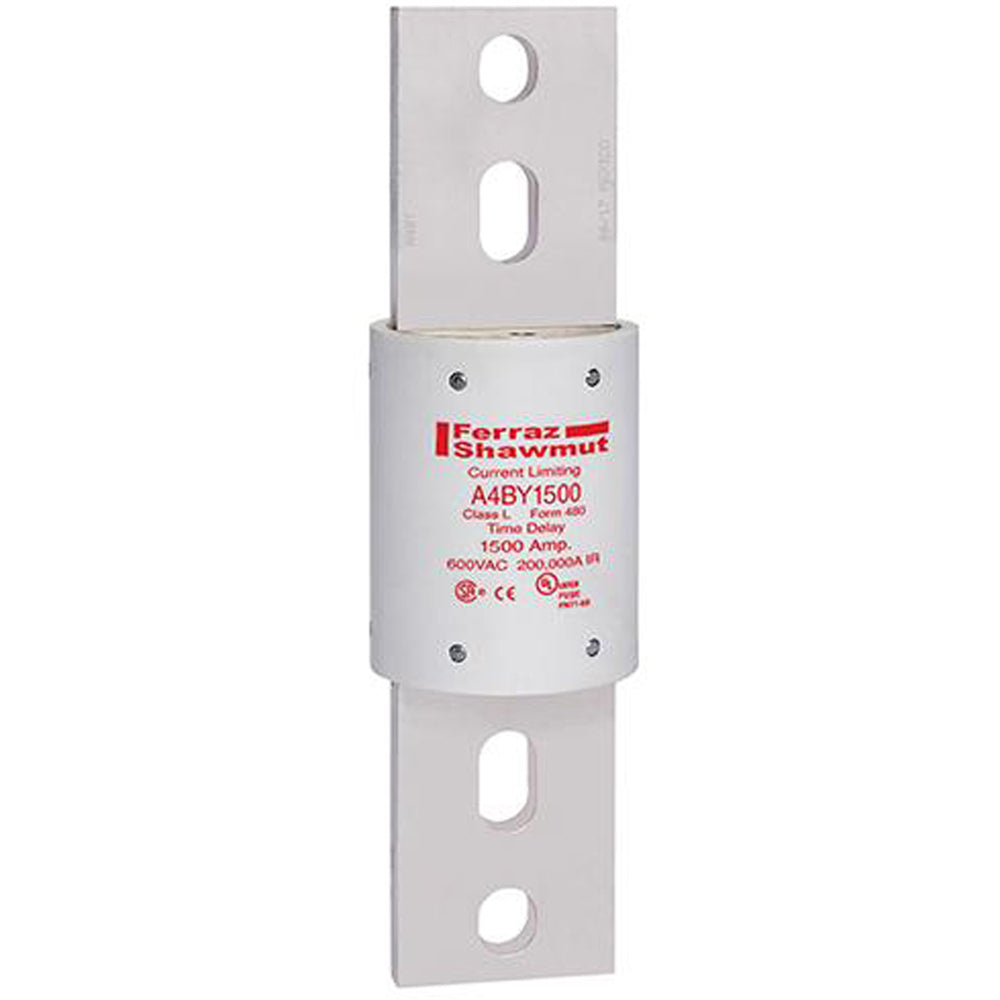

A4BY1500 is a 1500 Amp, 600 Volt AC Class L time delay fuse from Mersen Ferraz Shawmut designed for reliable circuit protection.This fuse features a 4-second time delay and current limiting capabilities, with a UL Class L rating and a blade-type silver-plated copper terminal for bolted mounting. It has an interrupt rating of 200,000 AIC at 600 VAC and 100,000 AIC at 300 VDC. The fuse body is made of glass melamine for durability in harsh environments and is UL listed to standard 248-10 and CSA certified. It measures 3 inches in diameter and 10.75 inches in length.

Key Specifications
• Amperage: 1500 A
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Class: Class L
• Time Delay: 4 seconds
• Interrupt Rating: 200,000 AIC (AC), 100,000 AIC (DC)
• Mounting Type: Bolted blade terminals
• Body Material: Glass Melamine
• Terminal Material: Silver-Plated Copper
• Dimensions: 3 in diameter x 10.75 in length
• Certifications: UL Listed (UL 248-10), CSA Certified
• ROHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BY1500
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : AKR Series
• Type : A4BY
• Voltage : 600
• Amperage : 1500
• AIC rating : 200kA@600V
• Diameter : 3
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 782001939199
• GTIN : 00782001939199
• Weight : 10
