Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

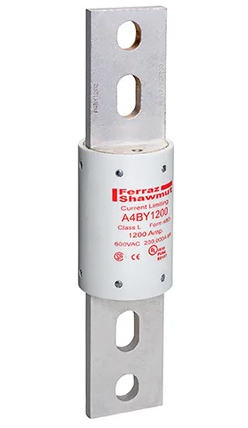

A4BY1200-BG
A4BY1200-BG is a Class L time-delay current-limiting fuse rated for 1200A at 600VAC/300VDC, designed for service entrance equipment, feeder circuits, and circuit breaker protection. This Amp-Trap fuse features a 4-second minimum time delay at 500% rating, allowing it to pass normal current surges while coordinating with ground fault relays. The fuse is 100% rated and suitable for continuous currents up to its ampere rating. Key Specifications
- Ampere Rating: 1200A
- Voltage Rating: 600VAC / 300VDC
- Fuse Class: Class L
- Speed/Characteristic: Time Delay
- Interrupting Rating: 200kA at 600VAC, 100kA at 300VDC
- Connection Type: Blade
- Mounting: Bolted
- Body Material: GMG (insulating material)
- Terminal Material: Silver-Plated Copper
- Frequency: 50/60 Hz
- Product Diameter: 2.5 inches
- Product Length: 10.75 inches
Specifications
- Part Number: A4BY1200-BG
- Manufacturer : Mersen
- Brand : Ferraz Shawmut
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4BY
- Voltage : 600
- Amperage : 1200
- AIC rating : 200kA@600V
Product Data
- UPC : 78200193838
- GTIN : 00782001938383
- Weight : 5
