Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

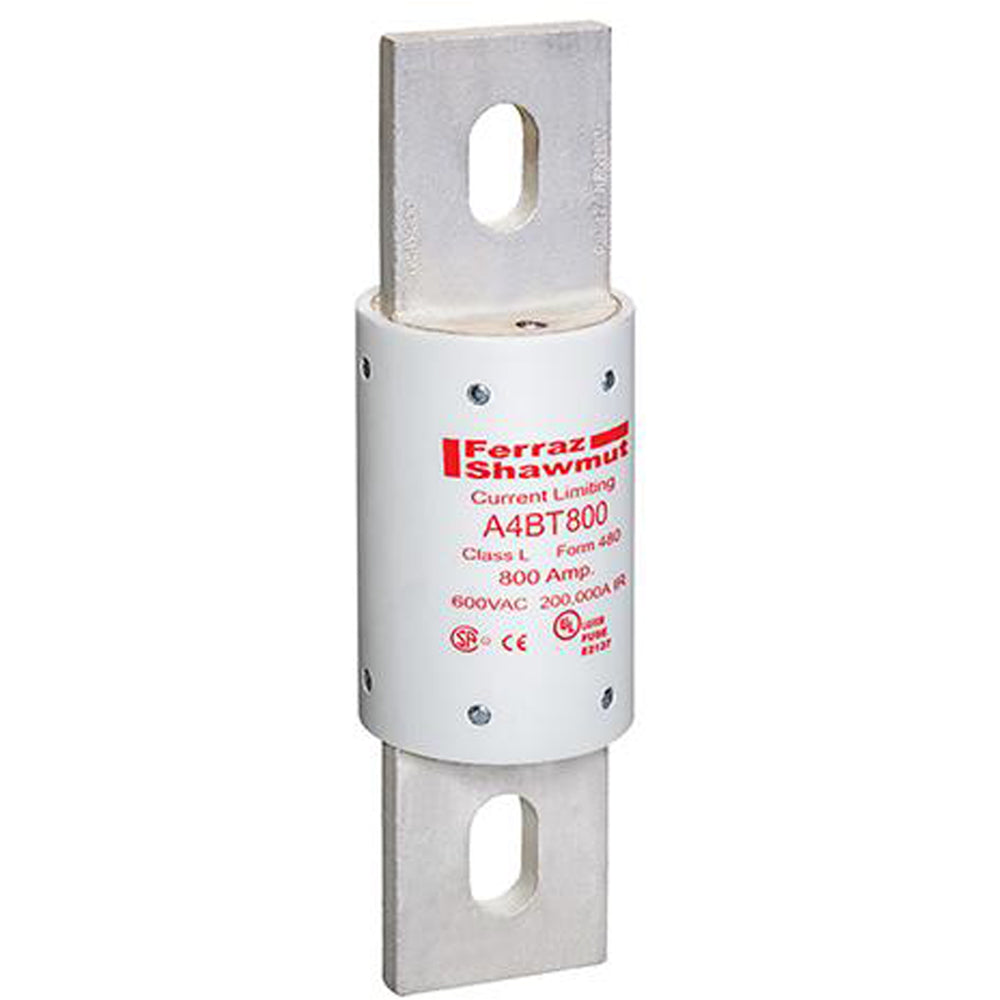

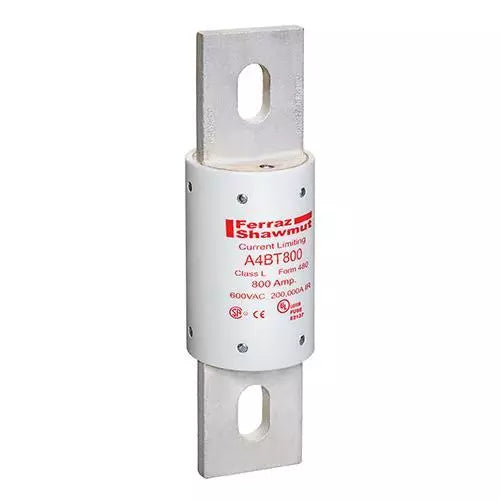

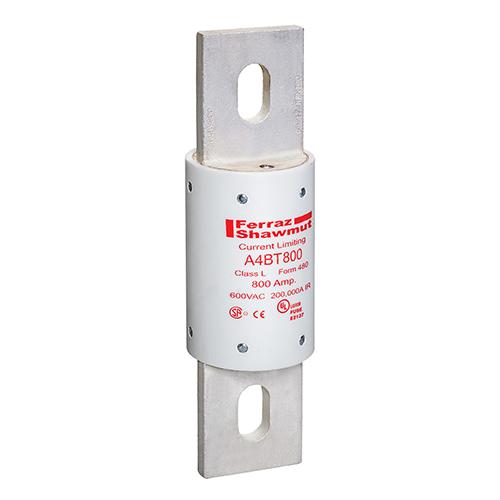

A4BT800
A4BT800 is an 800 amp, 600 volt AC Class L time delay fuse from Mersen's Amp-Trap series designed for reliable current limiting protection.This fuse features a 10 second time delay, current limiting capability, and a high interrupt rating of 200,000 AIC at 600 VAC and 100,000 AIC at 500 VDC. It has a glass melamine body with plated terminals for durability in harsh environments and unique dimensions to prevent replacement by other fuse classes. It is UL listed to standard 248-10 and CSA certified for safety and performance.
- Key Specifications
- Amperage: 800A
- Voltage Rating: 600 VAC / 500 VDC
- Fuse Class: L
- Time Delay: 10 seconds
- Interrupt Rating: 200,000 AIC (AC), 100,000 AIC (DC)
- Dimensions: 2.5" diameter x 8.625" length
- Mounting Type: Blade
- Series: Amp-Trap A4BT
- Certifications: UL Listed, CSA Certified
- Body Material: Glass Melamine
- Terminals: Plated
Specifications
- Part Number: A4BT800
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4BT
- Voltage : 600
- Amperage : 800
- AIC rating : 200kA@600V
- Diameter : 2.5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 782001939908
- GTIN : 00782001939908
- Country of Origin : Mexico
- Dimensions : x 8.63 in x
- Weight : 3
- Certification : UL, CSA
