A4BT600 - Mersen 600A 600V AC/DC Class L Time Delay Fuse, 200kA Interrupt, Bolt Mount, 10 Second Delay

A4BT600

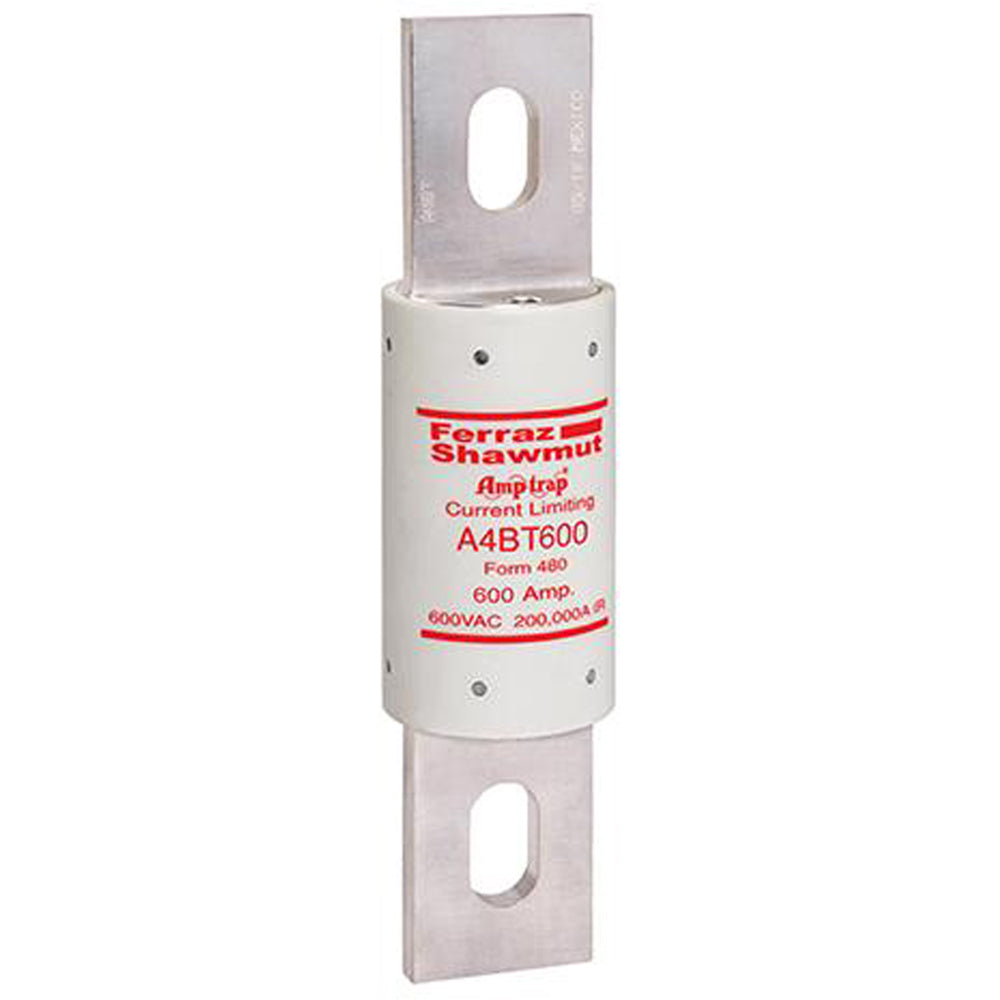

A4BT600 is a 600A, 600V AC/DC Class L time delay fuse designed for high-performance power distribution and motor protection applications. This cylindrical cartridge fuse features a 10-second time delay at 500% of rated current, making it ideal for loads with high inrush currents such as large motors. The fuse is current limiting with a 200,000A AC interrupting rating and 100,000A DC interrupting rating, ensuring reliable protection in demanding environments. Constructed with a glass melamine body and plated terminals, the A4BT600 is built for durability and long service life in harsh conditions. It is UL Listed to standard 248-10 and CSA Certified to standard C22.2 No. 248.10, and self-certified for DC per UL248. Unique dimensions prevent replacement by other fuse classes, ensuring correct installation and safety.

• Part Number: A4BT600
• Manufacturer: Mersen
• Ampere Rating: 600A
• Voltage Rating: 600V AC / 500V DC
• Fuse Class: Class L
• Speed Characteristic: Time Delay (10 seconds at 500% rating)
• Interrupting Rating: 200,000A AC / 100,000A DC
• Mounting Type: Bolt Mount
• Body Material: Glass Melamine (GMG)
• Terminal Material: Copper, Silver Plated
• Physical Size: 2" x 8.63" (50.8mm x 219.2mm)
• Certifications: UL Listed 248-10, CSA Certified C22.2 No. 248.10

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BT600
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A4BT
• Voltage : 600
• Amperage : 600
• AIC rating : 200kA@600V
• Diameter : 2
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 782001939861
• GTIN : 00782001939861
• Weight : 2
• Certification : UL, CSA, CE
