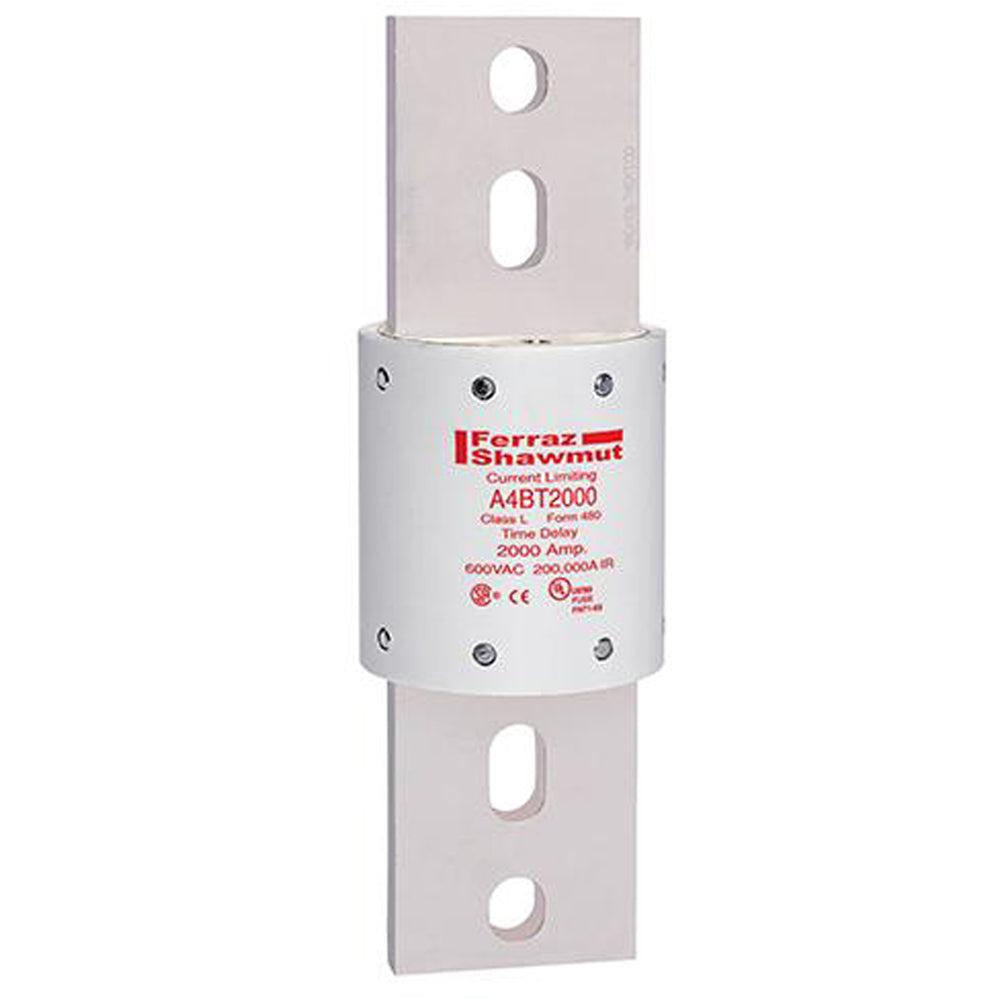

A4BT2000 - Mersen 2000A 600V Class L Time Delay Fuse 1 Pole Current Limiting UL CSA

A4BT2000

A4BT2000 is a Mersen 2000 Amp, 600 Volt AC Class L time delay fuse designed for current limiting protection.This fuse features a 10 second time delay, a 3 1/2 inch diameter by 10 3/4 inch length glass melamine body with plated terminals for harsh environments. It is UL Listed to standard 248-10 and CSA Certified to C22.2 No. 248.10. The fuse has an AC interrupting rating of 200,000 AIC and DC interrupting rating of 100,000 AIC, suitable for both AC and DC applications up to 600V and 500V respectively. Its unique dimensions prevent replacement by other fuse classes, ensuring proper fit and safety.

Key Specifications
• Amperage: 2000A
• Voltage Rating: 600V AC, 500V DC
• Fuse Type: Class L, Time Delay (10 second)
• Interrupting Rating: 200kA AC, 100kA DC
• Poles: 1
• Mounting Type: Barrel fuse
• Body Material: Glass melamine
• Certifications: UL Listed 248-10, CSA Certified C22.2 No. 248.10
• Dimensions: 3.5 inch diameter x 10.75 inch length
• Current Limiting
• Blade stamped catalog numbers for permanent ID
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A4BT2000
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A4BT
• Voltage : 600
• Amperage : 2000
• AIC rating : 200kA@600V
• Diameter : 3.5
• Class Rating : L
• Barrels : 1



Product Data

• UPC : 078200193998
• GTIN : 00782001939984
• Weight : 8
• Certification : UL, CSA, CE
