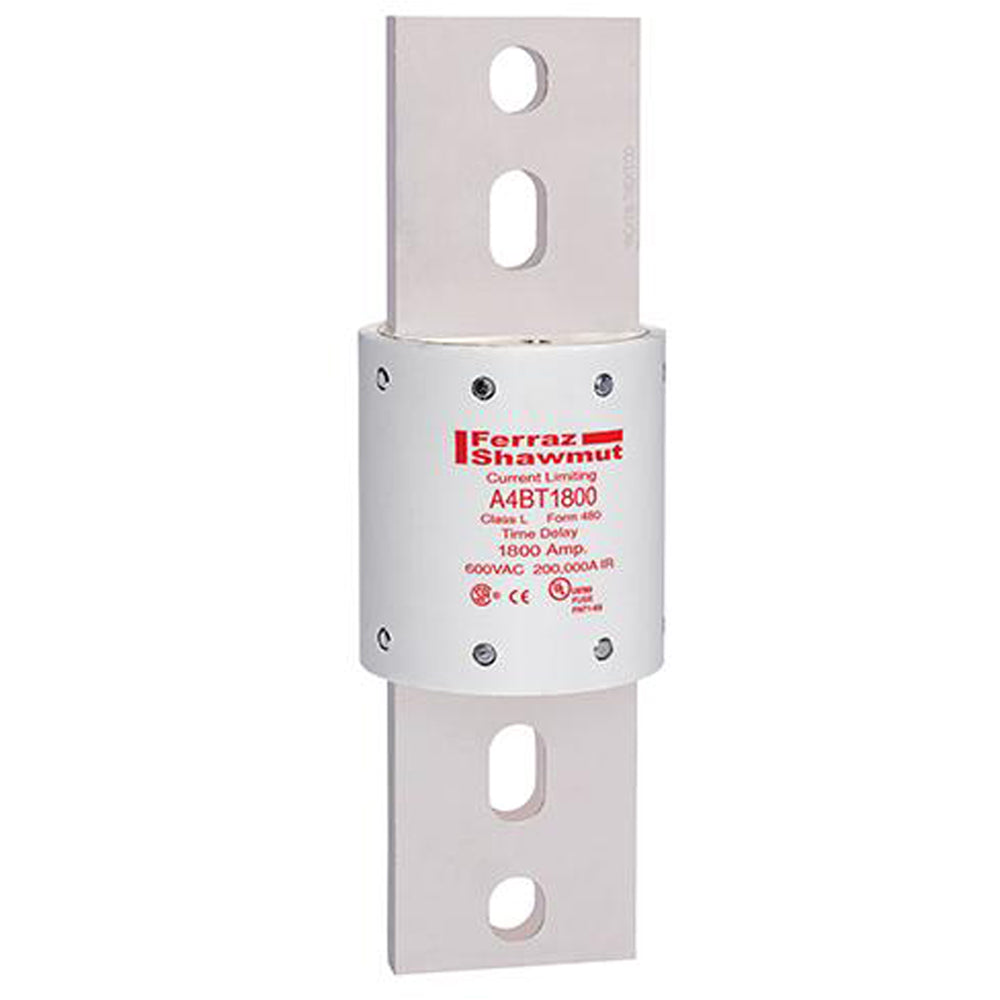

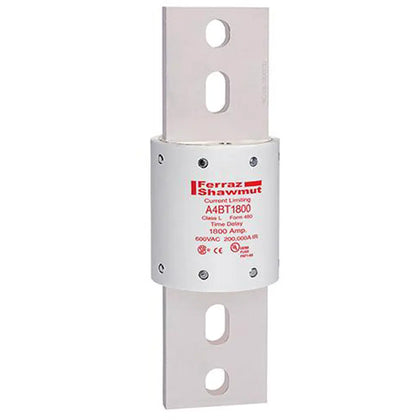

A4BT1800 - Eaton 1800A 600V Class L Time Delay Fuse, Current Limiting, Bolt Mount

A4BT1800

A4BT1800 is a high-performance Eaton Class L time delay fuse rated for 1800 amps and 600 volts AC, designed for reliable current limiting protection.This fuse features a 10-second time delay ideal for large motors and high inrush current loads. It has a glass melamine body with plated terminals for durability in harsh environments. The fuse is UL listed to standard 248-10 and CSA certified, with an AC interrupt rating of 200,000 AIC and DC interrupt rating of 100,000 AIC. Its unique dimensions prevent replacement by other fuse classes, and it mounts via bolt for secure installation.

• Amperage: 1800A
• Voltage: 600 VAC / 500 VDC
• Class L Time Delay
• Current Limiting
• AC Interrupt Rating: 200,000 AIC
• DC Interrupt Rating: 100,000 AIC
• Physical Size: 3.5" diameter x 10.75" length
• Mounting Type: Bolt Mount
• Glass Melamine Body with Plated Terminals
• UL Listed (UL 248-10) and CSA Certified
• Blade Stamped Catalog Numbers for Permanent ID
• Unique Dimensions to Prevent Cross-Class Replacement

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BT1800
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A4BT
• Voltage : 600
• Amperage : 1800
• AIC rating : 200kA@600V
• Diameter : 3.5
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 078200193997
• GTIN : 00782001939977
• Weight : 8
• Certification : UL, CSA, CE
