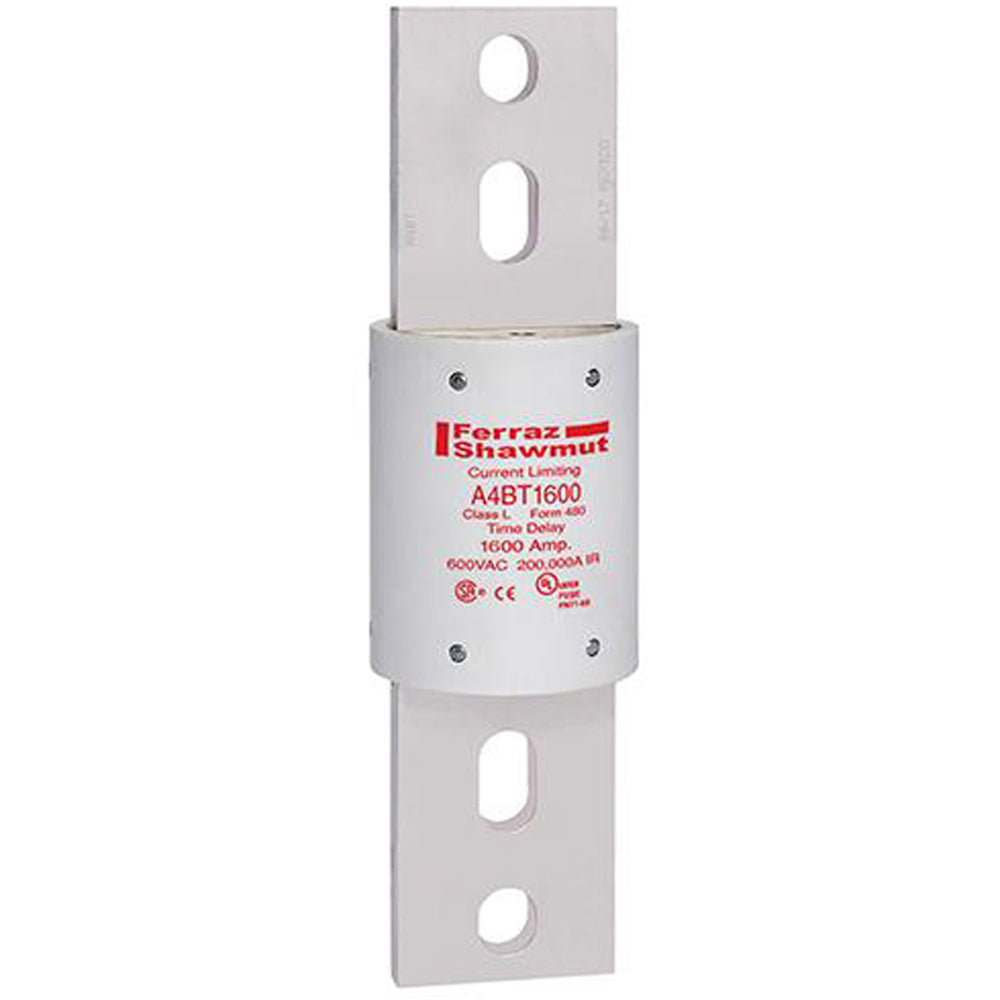

A4BT1600 - Mersen Ferraz Shawmut 1600A 600V Class L Time-Delay Fuse with 200kA Interrupt Rating

A4BT1600

A4BT1600 is a Mersen Ferraz Shawmut 1600 Amp, 600 Volt AC Class L time-delay fuse designed for high interrupting capacity and current limiting protection.This A4BT series fuse features a 10-second time delay at 500% of rating, making it ideal for motor and transformer protection with high inrush currents. It has a 200,000 amp interrupting rating at 600 VAC and 100,000 amp at 500 VDC, with a bolt-on mounting and blade terminal connection. The glass melamine body and plated terminals ensure durability in harsh environments. UL Listed to standard 248-10 and CSA certified, it prevents replacement by other fuse classes due to unique dimensions.

• Amperage: 1600 Amps
• Voltage Rating: 600 VAC, 500 VDC
• Fuse Class: Class L
• Time Delay: 10 seconds at 500% rating
• Interrupt Rating: 200 kA AC, 100 kA DC
• Mounting Type: Bolt-On
• Terminal Connection: Blade
• Construction: Glass Melamine Body, Plated Terminals
• Dimensions: 3" diameter x 10.75" length
• Certifications: UL Listed 248-10, CSA Certified C22.2 No. 248.10
• Series: A4BT
• Application: Motors, transformers, mains, feeders

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BT1600
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A4BT
• Voltage : 600
• Amperage : 1600
• AIC rating : 200kA@600V
• Diameter : 3
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 078200193996
• GTIN : 7.82002E+11
• Weight : 6
• Certification : UL, CSA, CE
