A4BT1200 - Mersen 1200A 600V Class L Time Delay Fuse, Bolt-On, 200kA Interrupt Rating

A4BT1200

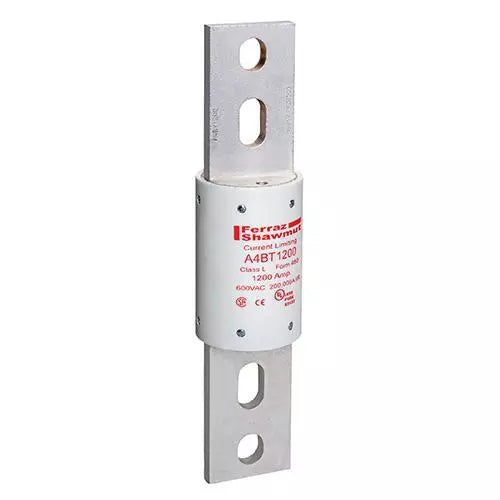

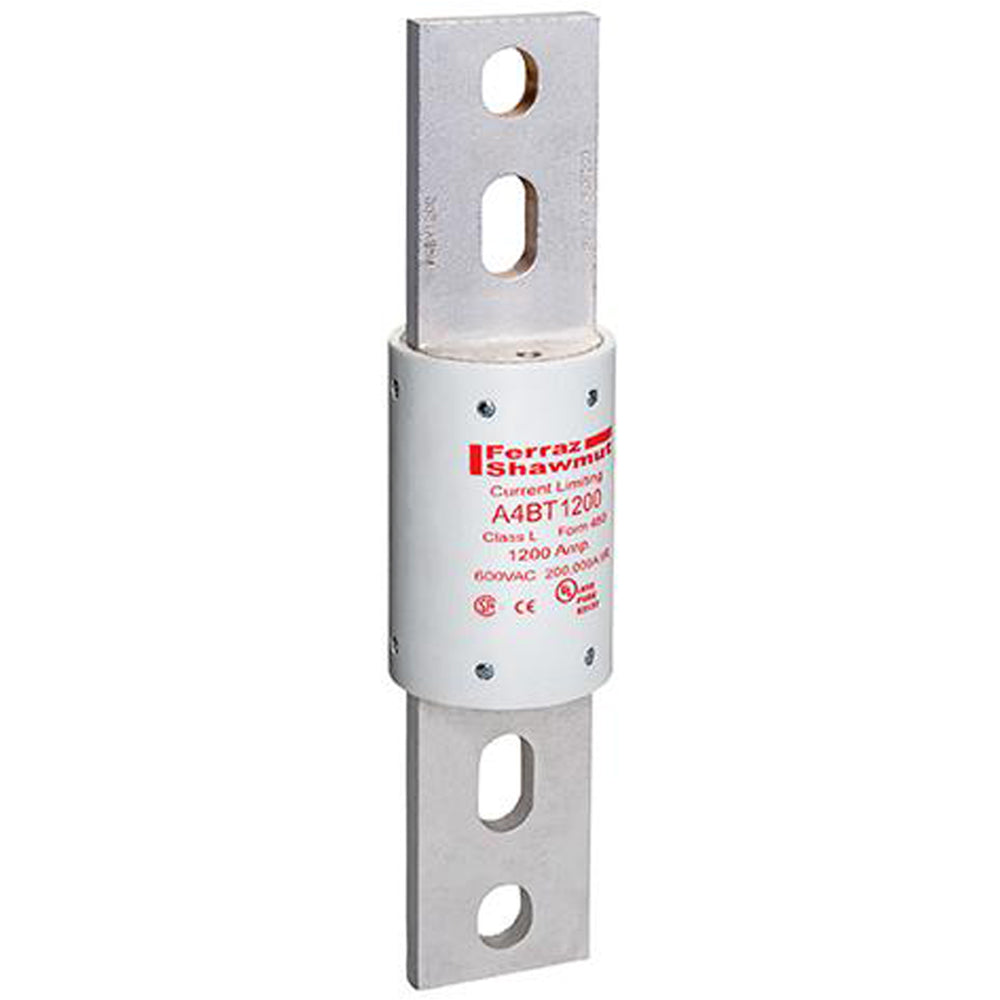

A4BT1200 is a Mersen Class L time delay fuse rated for 1200 amps and 600 volts AC with bolt-on mounting.This fuse features a 10-second time delay and current limiting design, suitable for harsh environments with a glass melamine body and plated terminals. It has a 200,000 AIC interrupt rating at 600 VAC and 100,000 AIC at 500 VDC. The fuse is UL Listed to standard 248-10 and CSA Certified, with silver-plated copper blade terminals for reliable connection.

• Amperage: 1200A
• Voltage Rating: 600 VAC, 500 VDC
• Fuse Class: Class L
• Time Delay: 10 seconds
• Interrupt Rating: 200,000 AIC (AC), 100,000 AIC (DC)
• Mounting Type: Bolt-On
• Body Material: Glass Melamine
• Terminal Material: Silver-Plated Copper Blade
• Dimensions: 2.5 in diameter x 10.75 in length
• Certifications: UL Listed 248-10, CSA Certified C22.2 No. 248.10

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BT1200
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A4BT
• Voltage : 600
• Amperage : 1200
• AIC rating : 200kA@600V
• Diameter : 2.5
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 078200193993
• GTIN : 00782001939939
• Country of Origin : Mexico
• Dimensions : x 10-3/4 in x
• Weight : 4
• Certification : UL, CSA, CE
