A4BQ800 - Mersen 800A 600V Class L Time Delay Fuse Bolt-On 200kAIC

A4BQ800

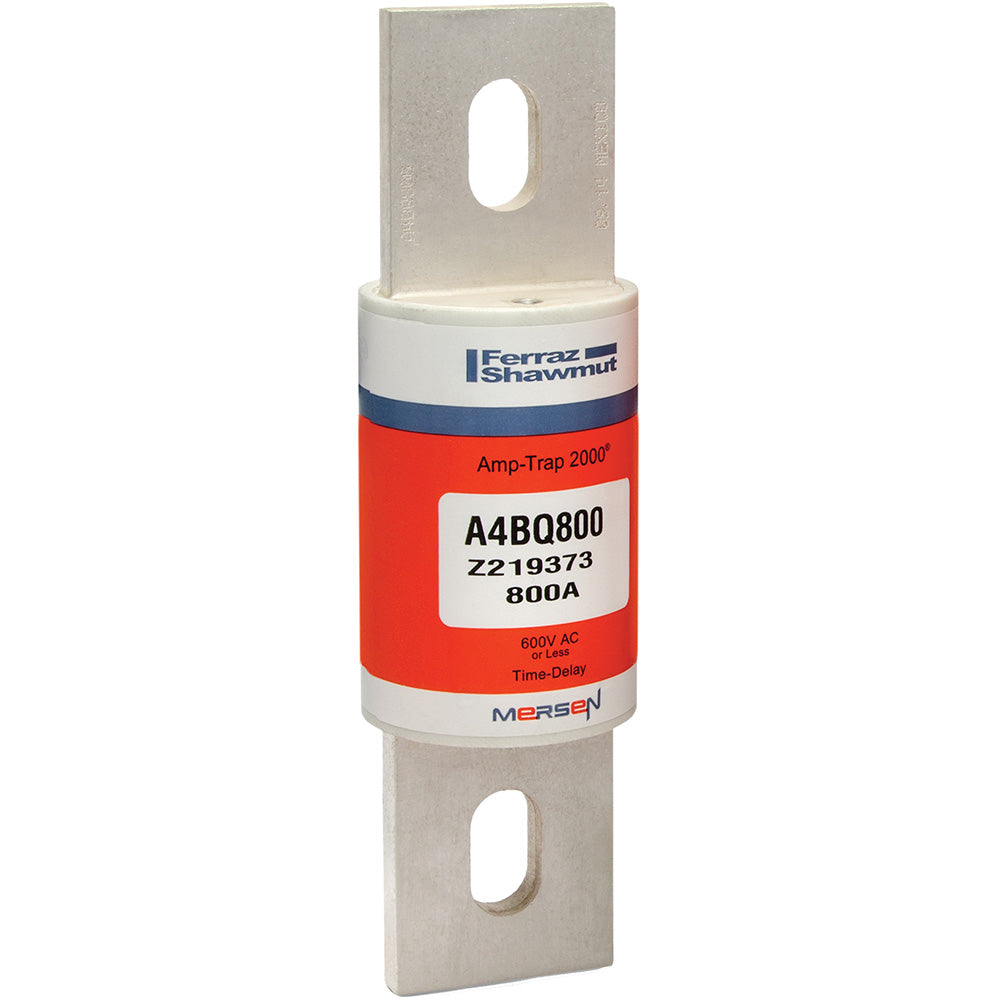

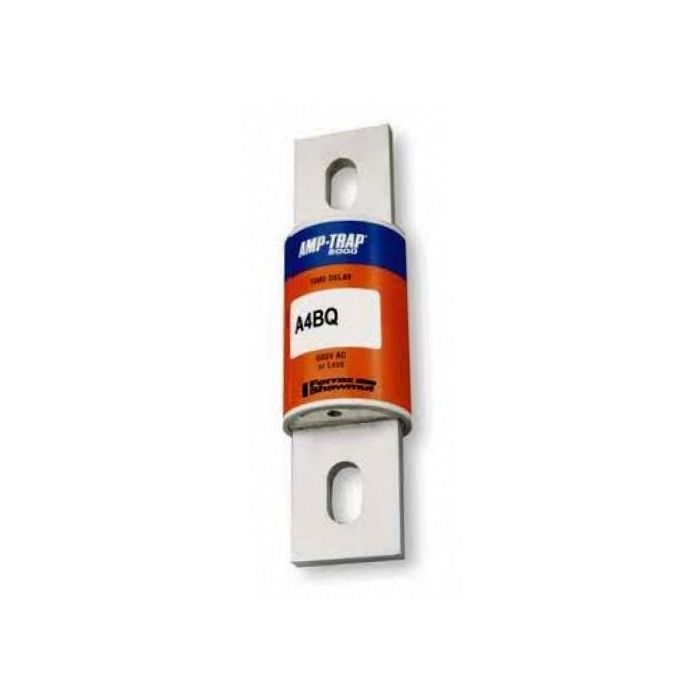

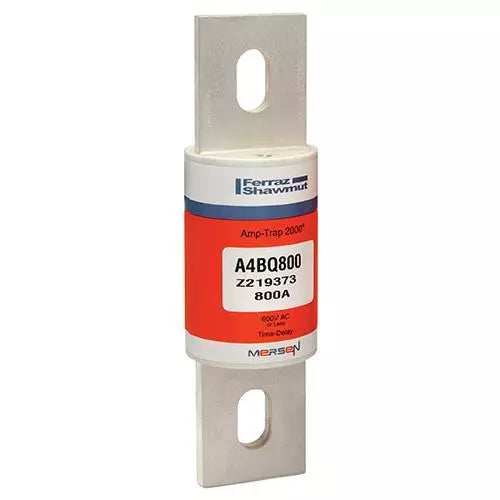

A4BQ800 is an 800 Amp, 600 Volt AC Class L time delay fuse designed for reliable current limiting protection.This Mersen A4BQ800 fuse features a 4 second time delay, bolt-on mounting type, and a high interrupting rating of 200,000 AIC AC and 100,000 AIC DC. It is UL listed to standard 248-10 and CSA certified, with a physical size of 2 1/2" diameter by 8 5/8" length. The fuse uses pure silver elements for superior performance and is recognized for its industry-leading current limiting capabilities.

Key Specifications
• Amperage: 800A
• Voltage Rating: 600V AC, 500V DC
• Fuse Class: Class L
• Time Delay: 4 seconds
• Mounting Type: Bolt-On
• Interrupting Rating: 200,000 AIC AC, 100,000 AIC DC
• Dimensions: 2 1/2" x 8 5/8"
• Certifications: UL Listed (248-10), CSA Certified (C22.2 No. 248.10)
• Element Material: Pure Silver
• Series: A4BQ
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A4BQ800
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Section : Fuses
• Family : Amp-Trap 2000
• Type : A4BQ
• Voltage : 600
• Amperage : 800
• AIC rating : 200kA@600V
• Diameter : 2.5
• Class Rating : L
• Barrels : 1



Product Data

• UPC : 078200193937
• GTIN : 00782001939373
• Country of Origin : Mexico
• Dimensions : x 8-5/8" x
• Weight : 3
• Certification : CSA, UL
