Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A4BQ750

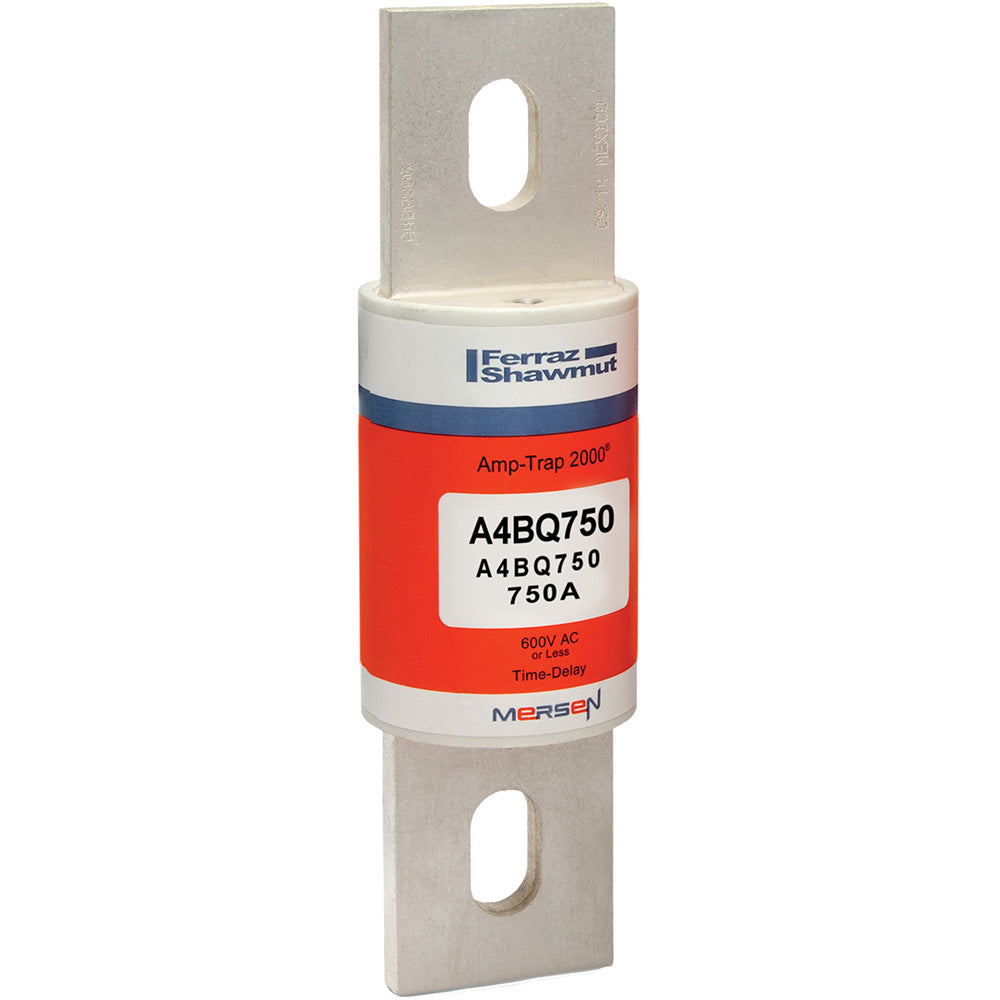

A4BQ750 is a Mersen Amp-Trap 2000 Class L time-delay fuse rated for 750A, 600VAC, and 500VDC, designed for industrial power distribution and protection applications. This fuse features a fiberglass GMG body, silver-plated copper blade terminals, and a 200kA AC interrupting rating, making it suitable for high fault current environments. The A4BQ series provides superior current-limiting performance and is UL listed and CSA certified for safety and reliability.
- Amperage Rating: 750A
- AC Voltage Rating: 600VAC
- DC Voltage Rating: 500VDC
- Interrupting Rating: 200kA AC, 100kA DC
- Series/Frame: Amp-Trap 2000 A4BQ
- Mounting Type: Bolted
- Connection Type: Blade
- Time-Delay: Yes
- UL Listed: Yes
- CSA Certified: Yes
- Body Material: GMG Fiberglass
- Terminal Material: Silver-Plated Copper
Specifications
- Part Number: A4BQ750
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A4BQ
- Voltage : 600
- Amperage : 750
- AIC rating : 200kA@600V
- Diameter : 2.5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 782001930035
- GTIN : 00782001930035
- Weight : 3
- Certification : UL, CSA, CE
