Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A4BQ700

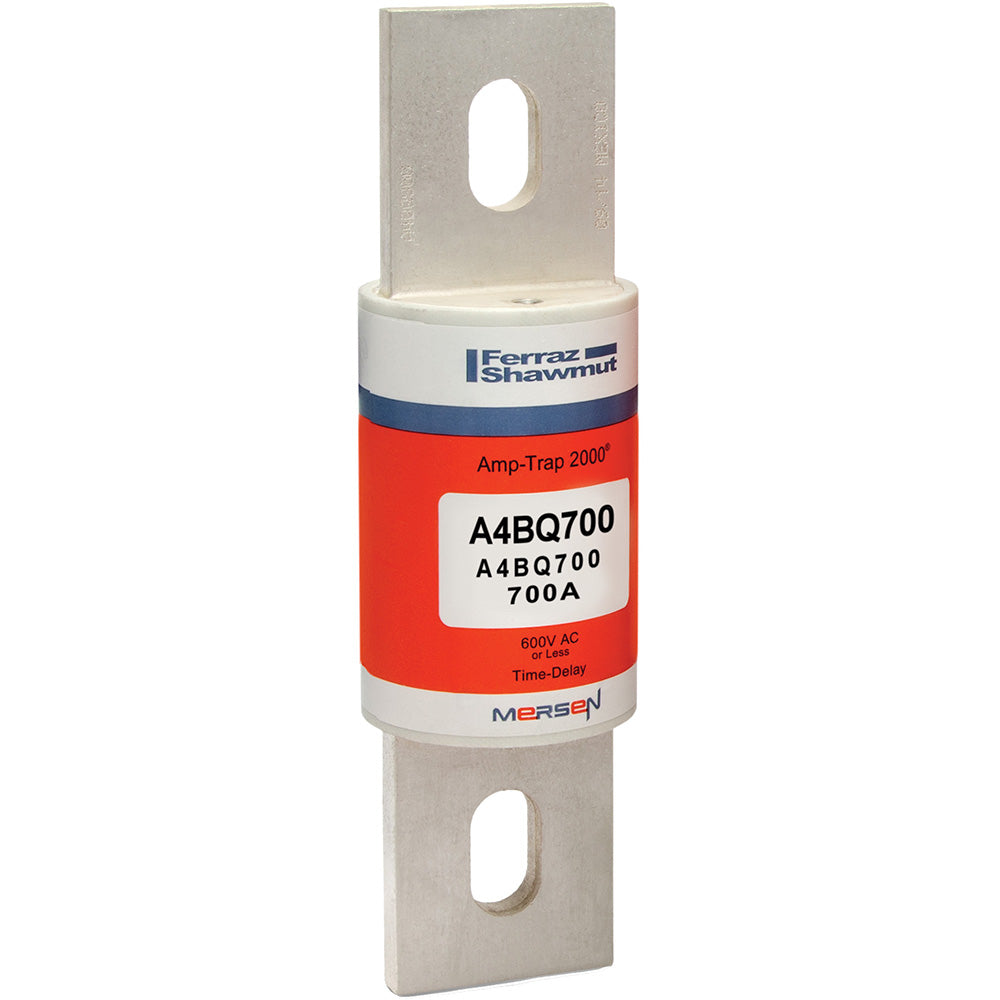

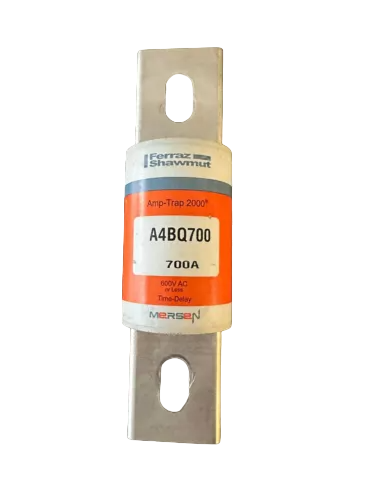

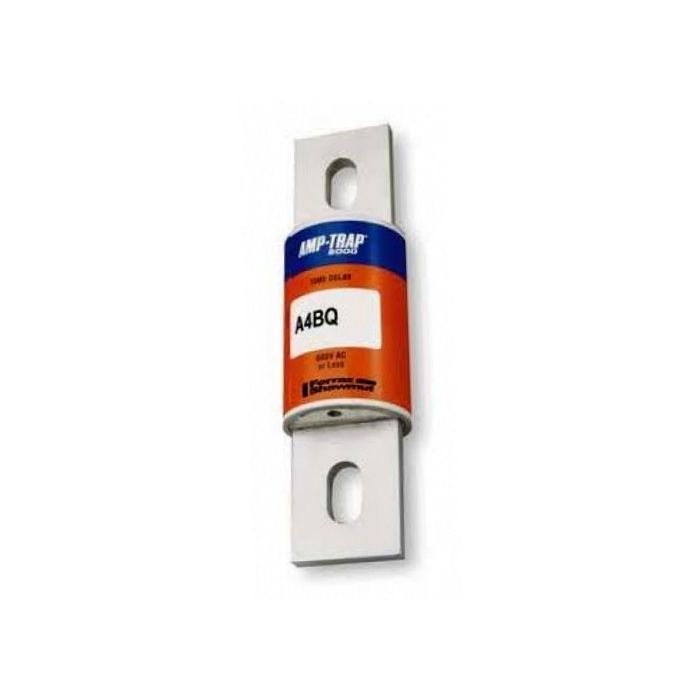

A4BQ700 is a Class L, time-delay, current-limiting fuse from Ferraz Shawmut's Amp-Trap 2000 series, designed for high-performance protection in industrial power distribution systems. This fuse features a 700A ampere rating, 600VAC/500VDC voltage rating, and a 200kA interrupting capacity at 600VAC. It is constructed with a blade terminal and bolted mounting for secure installation, and is UL 248/248-10 and CSA C22.2 approved for safety and reliability.
- Part Number: A4BQ700
- Manufacturer: Ferraz Shawmut
- Series: Amp-Trap 2000
- Fuse Class: Class L
- Speed/Characteristic: Time-Delay
- Ampere Rating: 700A
- Voltage Rating: 600VAC / 500VDC
- Interrupting Rating: 200kA AC / 100kA DC
- Mounting Type: Bolted
- Terminal Type: Blade
- Approvals: UL 248/248-10, CSA C22.2
- Body Material: GMG
Specifications
- Part Number: A4BQ700
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Section : Fuses
- Family : Amp-Trap 2000
- Type : A4BQ
- Voltage : 600
- Amperage : 700
- AIC rating : 200kA@600V
- Diameter : 2.5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 782001930028
- GTIN : 00782001930028
- Country of Origin : Mexico
- Dimensions : x 8-5/8" x
- Weight : 3
- Certification : CSA, UL
