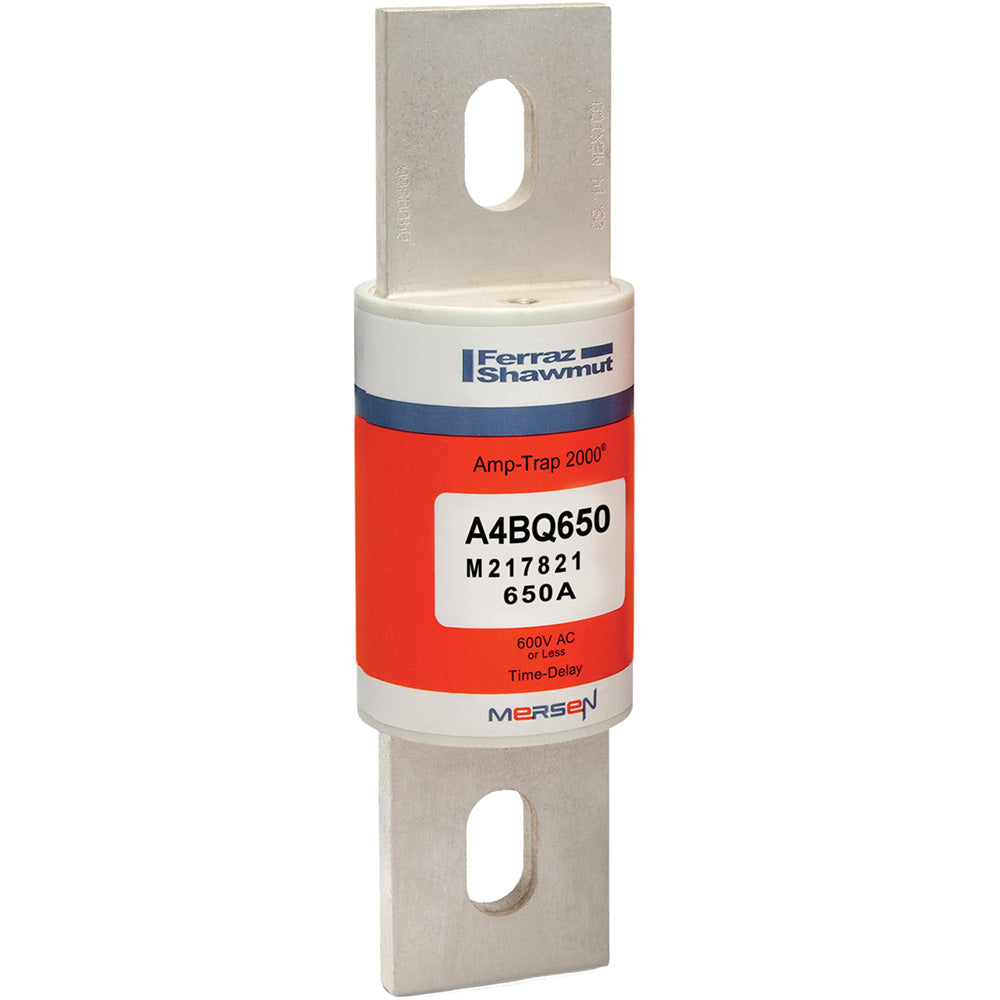

A4BQ650 - Mersen Class L Time-Delay Fuse 650A 600V AC Blade

A4BQ650

A4BQ650 is a Class L time-delay power fuse rated for 650 amperes at 600 volts AC, designed for industrial and commercial power distribution applications.

The A4BQ650 Amp-Trap 2000 fuse features a blade connection type with silver-plated copper terminals and operates at 500 volts DC. This time-delay fuse provides superior current-limiting performance, delivering 20 percent more current limiting than competing Class L fuses. The cylindrical body measures 2-1/2 inches in diameter by 8-5/8 inches in length, making it suitable for standard Class L fuse holders. The fuse is non-indicating and UL-listed for arc flash mitigation in main distribution applications.

• Amperage Rating: 650A
• AC Voltage Rating: 600V
• DC Voltage Rating: 500V
• Fuse Class: L
• Speed: Time-Delay
• Connection Type: Blade
• Terminal Material: Silver-Plated Copper
• Physical Size: 2-1/2 in dia x 8-5/8 in length
• Body Type: Cylindrical
• Visual Indication: Non-Indicating
• Series: Amp-Trap 2000
• Certification: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BQ650
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Section : Fuses
• Family : Amp-Trap 2000
• Type : A4BQ
• Voltage : 600
• Amperage : 650
• AIC rating : 200kA@600V
• Diameter : 2.5
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 782001930011
• GTIN : 00782001930011
• Weight : 5
