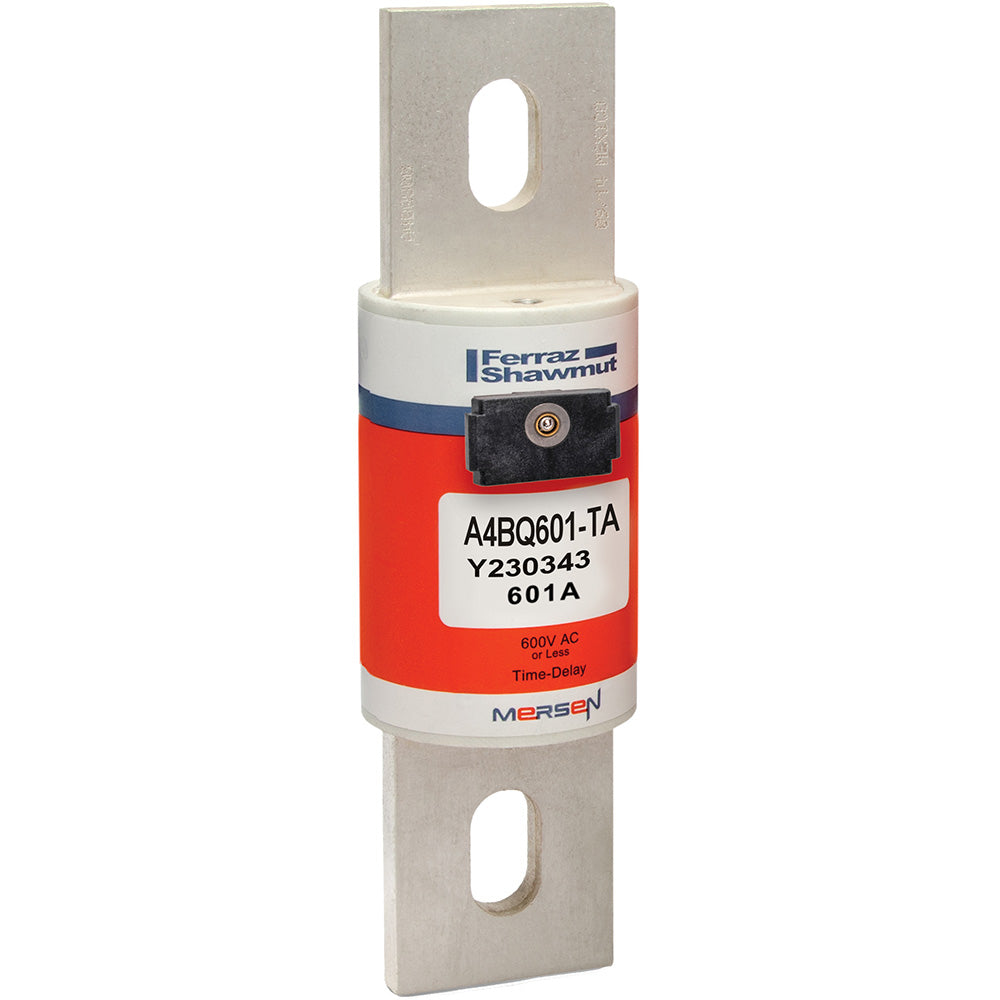

A4BQ601-TA - Eaton 601A 600V Class L Time Delay Fuse with Remote Blown Fuse Trigger Actuator

A4BQ601-TA

A4BQ601-TA is a 601 Amp, 600 Volt AC Class L time delay fuse with a remote blown fuse trigger actuator, designed for superior current limiting and protection.This Eaton A4BQ601-TA fuse features a 4-second time delay to accommodate harmless inrush currents, making it ideal for motors and transformers. It offers a 200,000 AIC interrupting rating at 600V AC and 100,000 AIC at 500V DC, with pure silver elements for low let-thru current and longer fuse life. The fuse has a bolt mounting type and a fiberglass body for durability in harsh industrial environments. It is UL listed to standard 248-10 and CSA certified, ensuring compliance with safety standards.

• Amperage: 601 Amps
• Voltage Rating: 600V AC, 500V DC
• Fuse Class: UL Class L
• Time Delay: 4 seconds
• Interrupt Rating: 200,000 AIC AC, 100,000 AIC DC
• Mounting Type: Bolt
• Fuse Series: Amp-Trap 2000 A4BQ
• Remote Blown Fuse Trigger Actuator (TA) included
• Pure silver elements for current limiting
• Fiberglass body for dimensional stability
• UL and CSA certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BQ601-TA
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A4BQ
• Voltage : 600
• Amperage : 601
• AIC rating : 200kA@600V
• Diameter : 2.5
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 078200129398
• GTIN : 00782001293987
• Weight : 3
• Certification : UL, CSA
