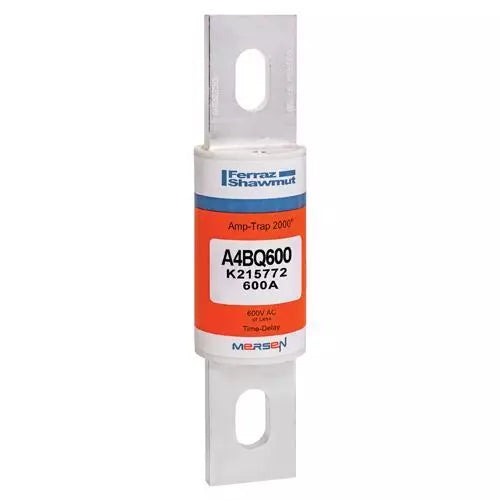

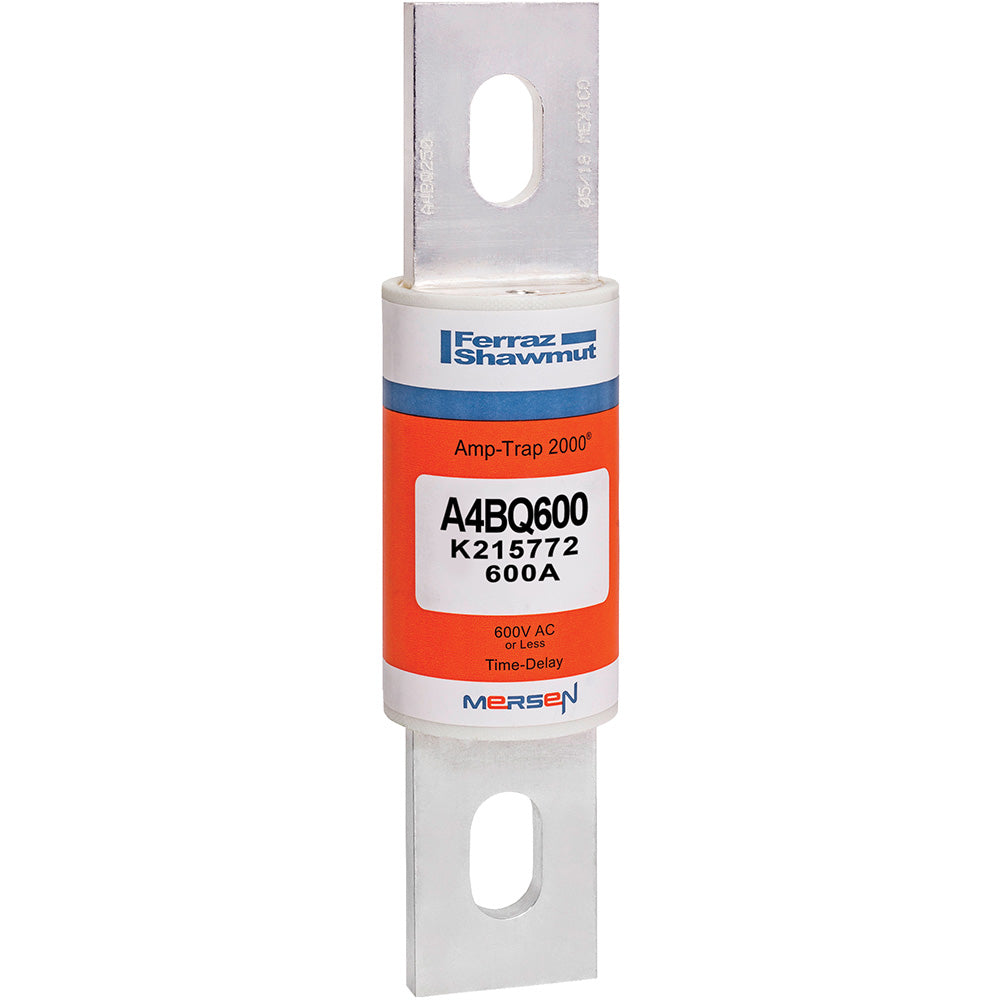

A4BQ600 - Ferraz Shawmut 600A 600V Class L Time Delay Fuse, 2in x 8.63in, 200kA Interrupt Rating

A4BQ600

A4BQ600 is a Ferraz Shawmut Class L time delay fuse rated for 600 amps and 600 volts AC with a 4-second time delay and high current limiting capability.This fuse features a 2 inch diameter and 8.63 inch length, with a 200,000 AIC AC interrupting rating and 100,000 AIC DC interrupting rating. It is UL listed to standard 248-10 and CSA certified, designed with pure silver elements for superior current limiting and longer fuse life. The fuse is bolted mount type with silver-plated copper blade terminals, suitable for protecting service entrance equipment and downstream components from short circuit currents.

Key Specifications
• Amperage: 600 A
• Voltage Rating: 600 V AC / 500 V DC
• Fuse Class: Class L
• Time Delay: 4 seconds
• Interrupting Rating: 200,000 AIC AC / 100,000 AIC DC
• Mounting Type: Bolted
• Dimensions: 2 in diameter x 8.63 in length
• Terminal Material: Silver-Plated Copper
• UL Listed: UL 248-10 (File E2137)
• CSA Certified: C22.2 No. 248.10
• Pure Silver Elements for Current Limiting
• RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BQ600
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Section : Fuses
• Family : Amp-Trap 2000
• Type : A4BQ
• Voltage : 600
• Amperage : 600
• AIC rating : 200kA@600V
• Diameter : 2
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 782001930714
• GTIN : 00782001930714
• Country of Origin : Mexico
• Dimensions : x 8-5/8 in x
• Weight : 3
• Certification : CSA, UL
