A4BQ500 - Ferraz Shawmut 500A 600V Class L Time Delay Fuse Amp-Trap 2000

A4BQ500

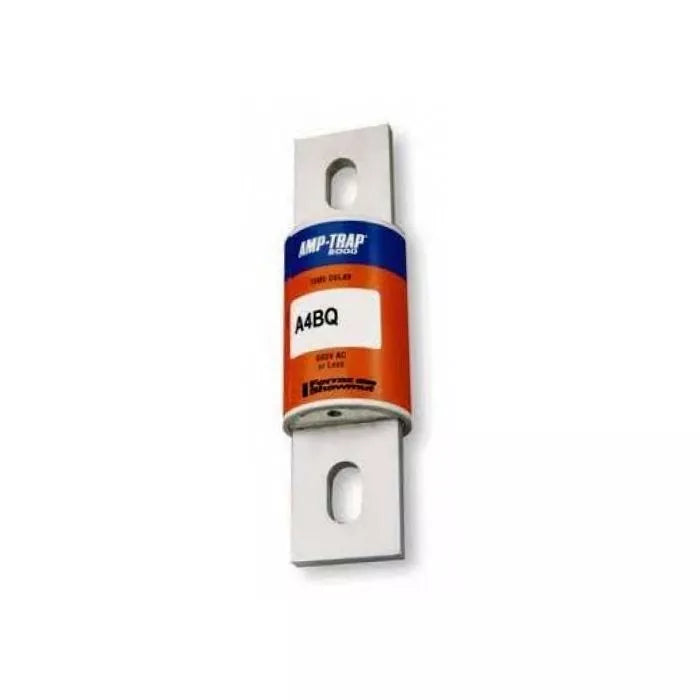

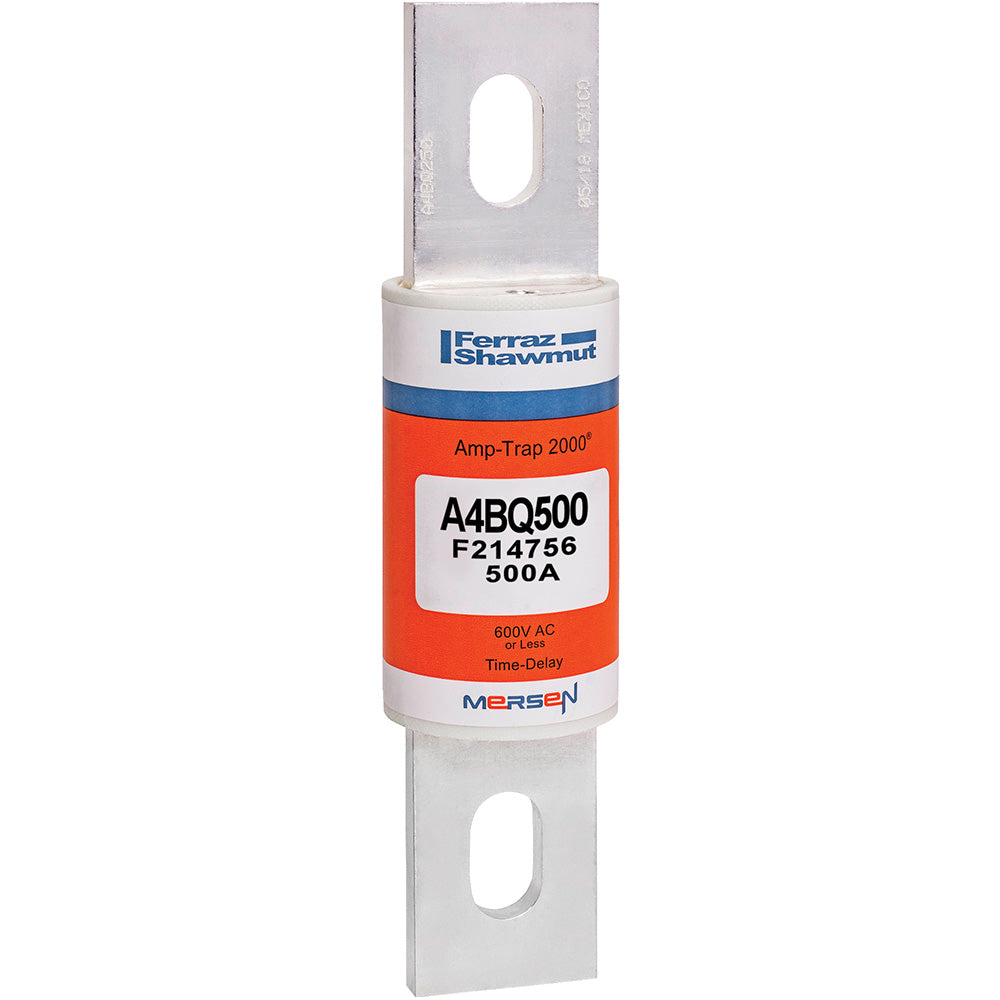

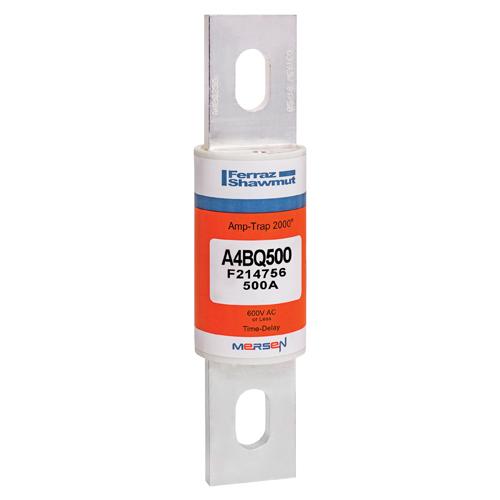

A4BQ500 is a 500 Amp, 600 Volt Class L time delay fuse from Ferraz Shawmut's Amp-Trap 2000 series designed for reliable current limiting protection.

This fuse features a 4-second time delay and is UL Class L rated, providing 20% more current limiting than other Class L fuses. It is suitable for mains, feeders, large motors, lighting, heating, and general load applications. The fuse has a 2 inch diameter and measures 8-5/8 inches in length. It carries UL 248-10 and CSA C22.2 certifications and offers an interrupt rating of up to 200,000 amperes AC. The A4BQ500 fuse supports both AC (600V) and DC (500V) voltage ratings.

Key Specifications
• Amperage: 500 Amps
• Voltage Rating: 600 VAC / 500 VDC
• Fuse Type: Class L, Time Delay
• Series: Amp-Trap 2000 A4BQ
• Interrupt Rating: 200 kA AC
• Dimensions: 2 inch diameter x 8-5/8 inch length
• Certifications: UL 248-10, CSA C22.2
• Mounting Type: Blade style
• Current Limiting: Yes, 20% more than standard Class L
• Applications: Mains, feeders, motors, lighting, heating, general loads

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BQ500
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Section : Fuses
• Family : Amp-Trap 2000
• Type : A4BQ
• Voltage : 600
• Amperage : 500
• AIC rating : 200kA@600V
• Diameter : 2
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 782001930707
• GTIN : 00782001930707
• Country of Origin : Mexico
• Dimensions : x 8-5/8 in x
• Weight : 4
• Certification : CSA, UL
