Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

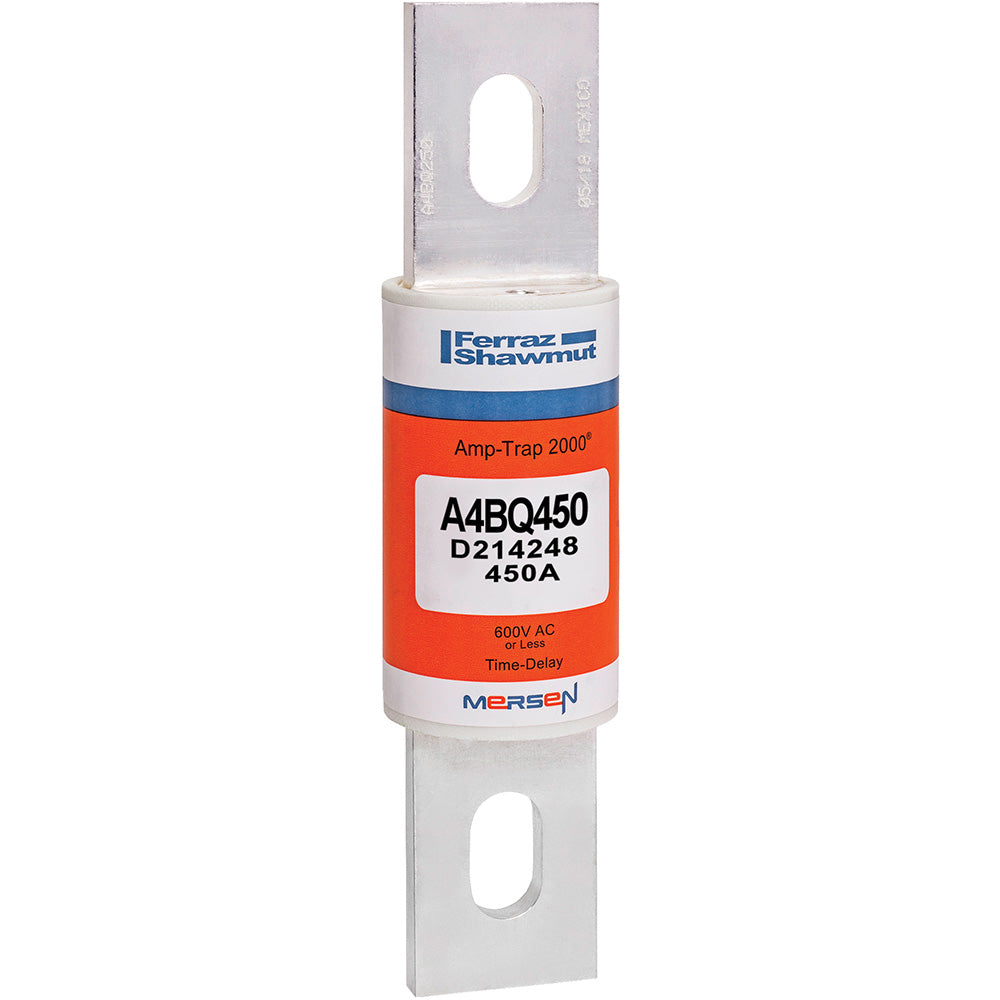

A4BQ450
A4BQ450 is a Class L time-delay fuse designed for industrial power distribution applications requiring superior current limitation and arc flash mitigation. This Amp-Trap 2000 fuse delivers 20 percent more current limiting performance than any other Class L fuse on the market, making it ideal for mains, feeders, and branch circuit protection in facilities seeking to reduce arc flash energy hazards. The fuse features a fiberglass body with pure silver links for optimal let-thru current control and extended fuse life, combined with high-grade silica filler for rapid arc quenching. Its rejection-style design prevents installation errors, while the high-visibility orange label ensures instant recognition in the field. Key Specifications
- Amperage Rating: 450A
- Voltage Rating: 600VAC, 500VDC
- Interrupting Rating: 200kA AC, 100kA DC
- Fuse Class: UL Class L
- Time Delay: Yes
- Terminal Type: Blade
- Body Material: Fiberglass
- Physical Dimensions: 2 inches x 8.63 inches
- Mounting: Bolted
- Certifications: UL listed, CSA certified, DC listed to UL standard
- Series: Amp-Trap 2000
Specifications
- Part Number: A4BQ450
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A4BQ
- Voltage : 600
- Amperage : 450
- AIC rating : 200kA@600V
- Diameter : 2
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 78200193069
- GTIN : 00782001930691
- Weight : 3
