Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A4BQ400

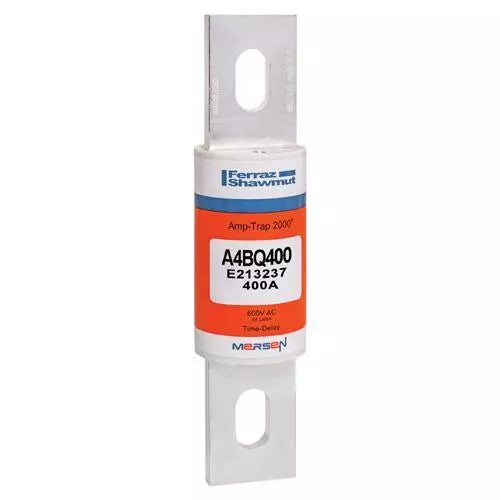

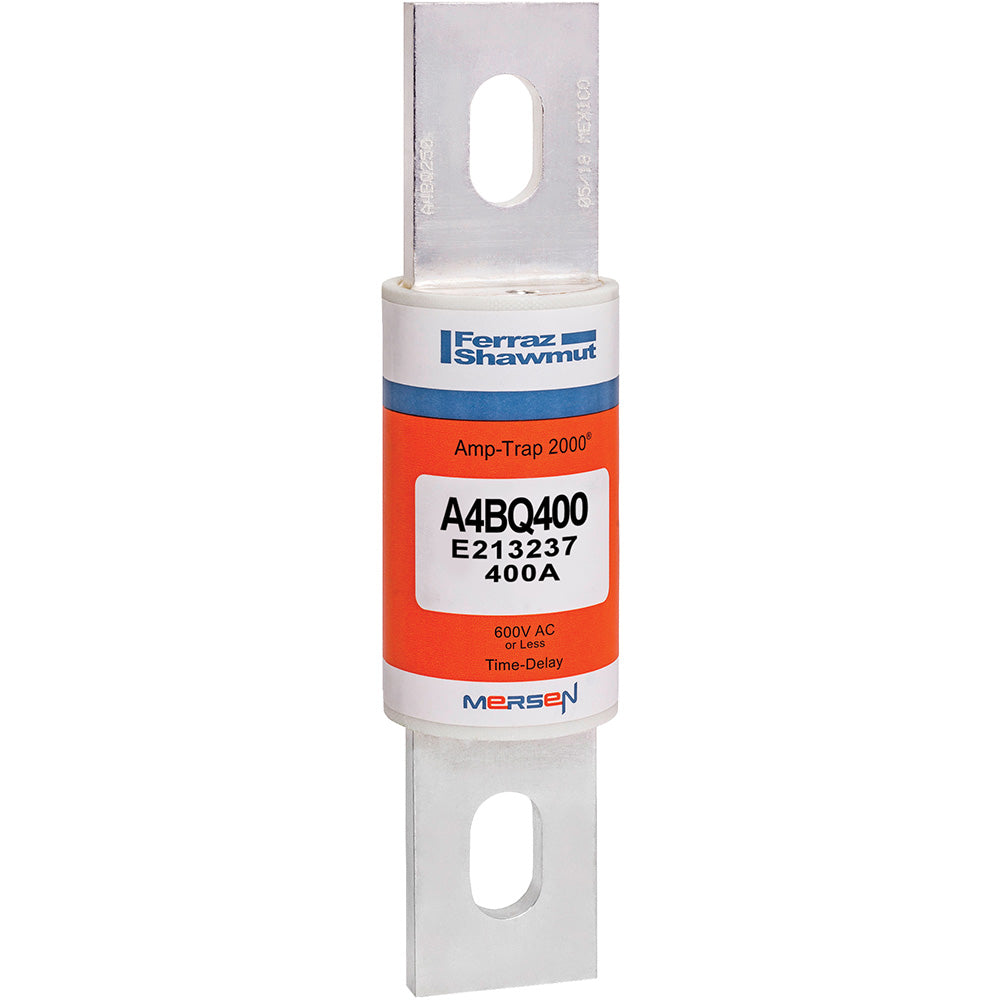

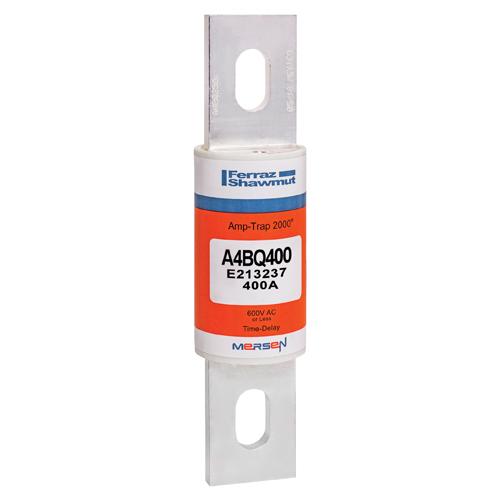

A4BQ400 is a 400 Amp, 600 Volt Class L time-delay fuse from Ferraz Shawmut's Amp-Trap 2000 series designed for superior current limiting and protection.This fuse features a 4-second time delay at 500% rated load, 200 kA interrupt rating, and pure silver links for low let-thru current and extended fuse life. It measures 8-5/8 inches in length with a 2-inch diameter and is UL 248-10 and CSA C22.2 certified for reliable performance in industrial and commercial applications.
- Amperage: 400A
- Voltage Rating: 600VAC, 500VDC
- Fuse Class: Class L
- Time Delay: 4 seconds at 500% rated current
- Interrupt Rating: 200 kA (AC)
- Series: Amp-Trap 2000
- Length: 8.63 inches (219 mm)
- Diameter: 2 inches (51 mm)
- Mounting Type: Blade terminal
- Certifications: UL 248-10, CSA C22.2
- Pure silver fuse links for low let-thru current
Specifications
- Part Number: A4BQ400
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A4BQ
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Diameter : 2
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 782001930684
- GTIN : 00782001930684
- Country of Origin : Mexico
- Dimensions : x 8-5/8 in x
- Weight : 3
- Certification : CSA, UL
