Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

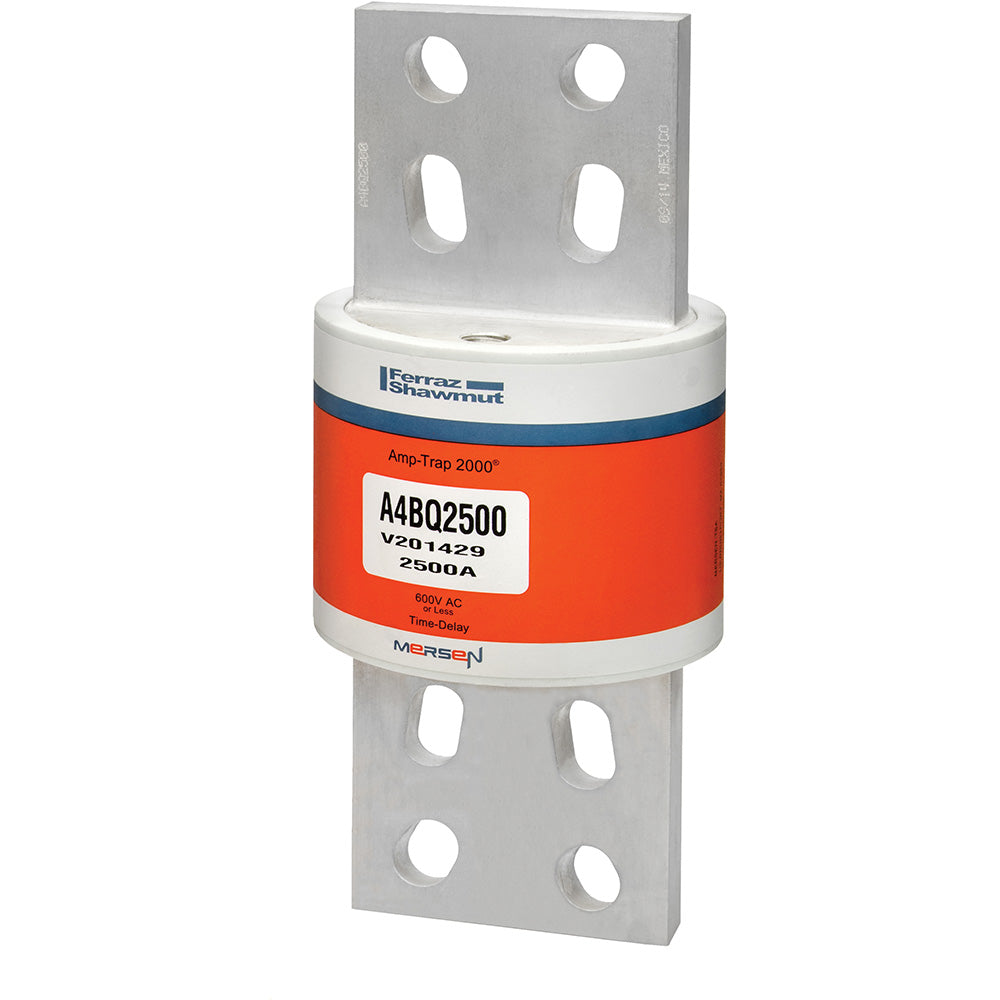

A4BQ2500
A4BQ2500 is a 2500 Amp, 600 Volt Class L time delay fuse designed for superior current limiting and protection. A4BQ2500 fuses provide 20% more current limiting than other Class L fuses, with a 4-second time delay to accommodate harmless inrush currents without nuisance opening. They feature a 300kA interrupting rating, pure silver links for longer fuse life, and a fiberglass body for durability in industrial environments.
- Amperage: 2500A
- Voltage: 600V AC / 500V DC
- Poles: 1
- Mounting Type: Bolted
- Interrupt Rating: 300,000 AIC (UL self-certified)
- Fuse Class: Class L
- Time Delay: 4 seconds at 500% rated current
- Frame Type: A4BQ
- Body Material: Fiberglass
- Certifications: UL Listed, CSA Certified
- Pure silver fuse elements for lowest let-thru current
- Rejection-style design to prevent replacement errors
Specifications
- Part Number: A4BQ2500
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Section : Fuses
- Family : Amp-Trap 2000
- Type : A4BQ
- Voltage : 600
- Amperage : 2500
- AIC rating : 200kA@600V
- Diameter : 4.5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 782001930134
- GTIN : 00782001930134
- Country of Origin : Mexico
- Dimensions : x 10-3/4 in x
- Weight : 18
- Certification : CSA, UL
