Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

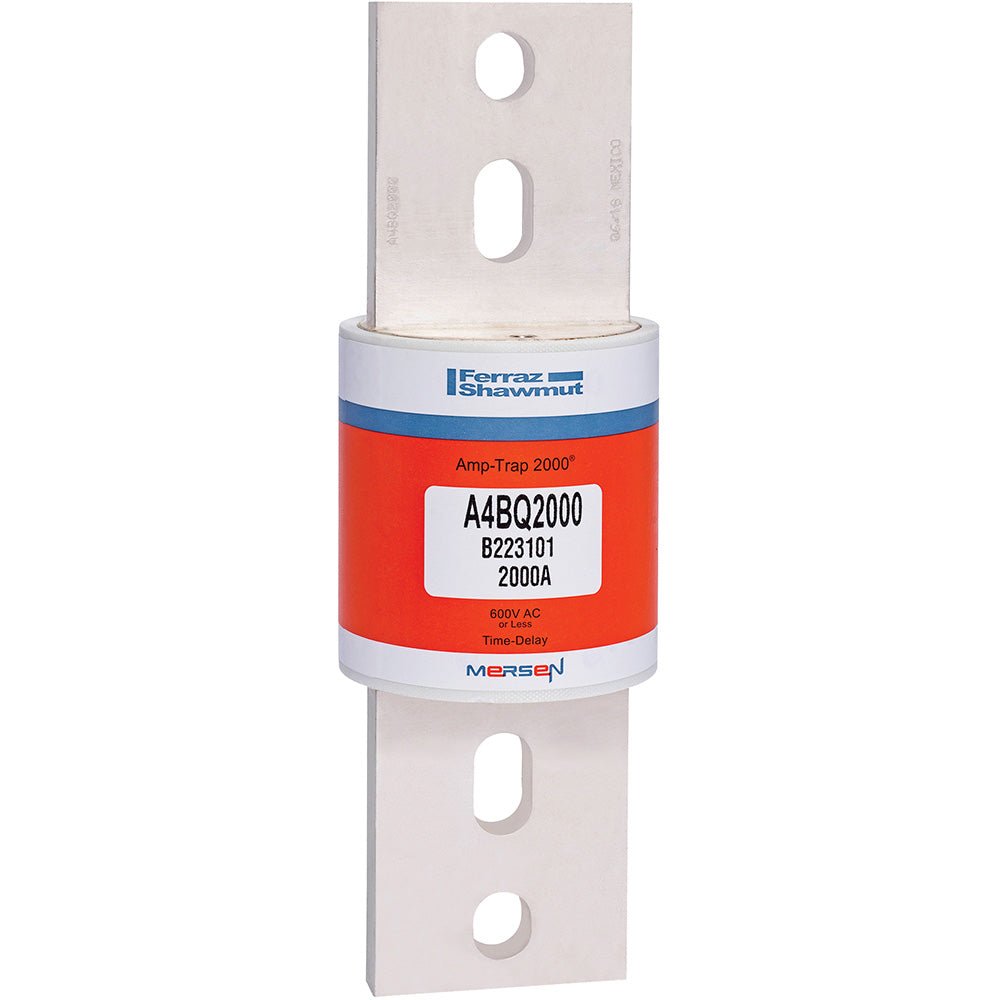

A4BQ2000
A4BQ2000 is a Ferraz Shawmut Class L time-delay fuse rated for 2000 amps and 600VAC/500VDC, designed for high current limiting and reliable protection.This Amp-Trap 2000 series fuse features a 4-second time delay at 500% rated current, providing superior current limiting with 20% more capacity than other Class L fuses. It has a bolted mounting type, silver-plated copper blade terminals, and a 200kA interrupt rating at 600V AC. The fuse body is made of fiberglass for durability and dimensional stability in industrial environments. It is UL listed to standard 248-10 and RoHS compliant.
- Fuse Class: Class L
- Amperage Rating: 2000 A
- Voltage Rating: 600 VAC / 500 VDC
- Time Delay: 4 seconds at 500% rated current
- Interrupt Rating: 200 kA at 600 V AC
- Mounting Type: Bolted
- Terminal Type: Silver-plated copper blade
- Body Material: Fiberglass
- Diameter: 3.5 inches
- Length: 10.75 inches
- Certifications: UL Listed 248-10, RoHS Compliant
Specifications
- Part Number: A4BQ2000
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Section : Fuses
- Family : Amp-Trap 2000
- Type : A4BQ
- Voltage : 600
- Amperage : 2000
- AIC rating : 200kA@600V
- Diameter : 3.5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 782001939410
- GTIN : 00782001939410
- Weight : 8
