Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A4BQ1500

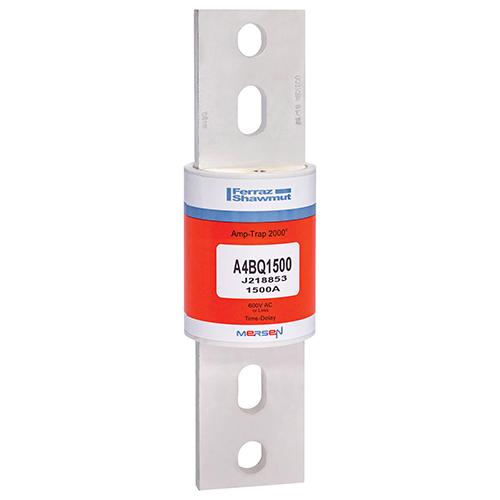

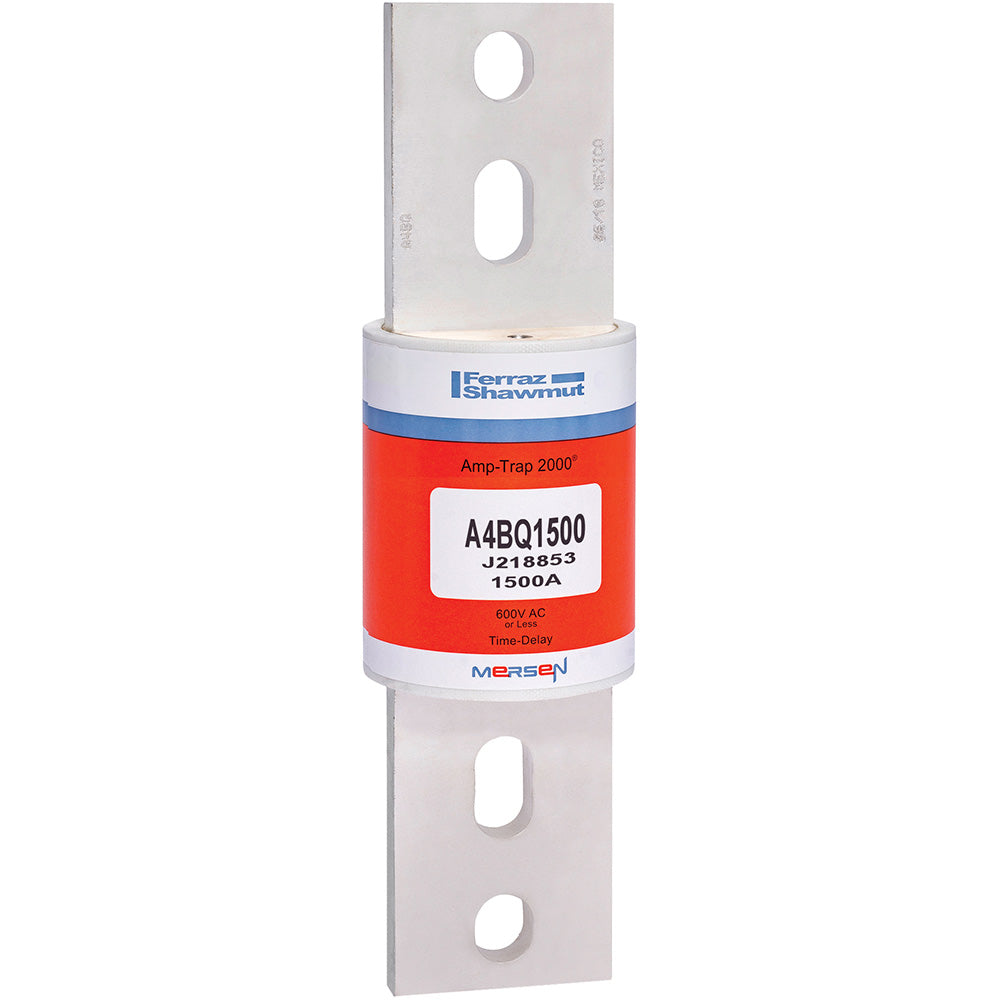

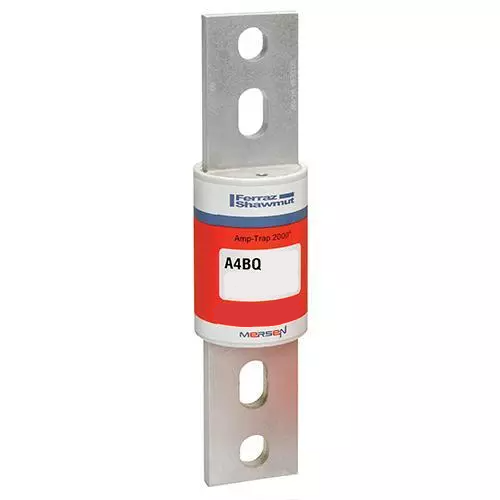

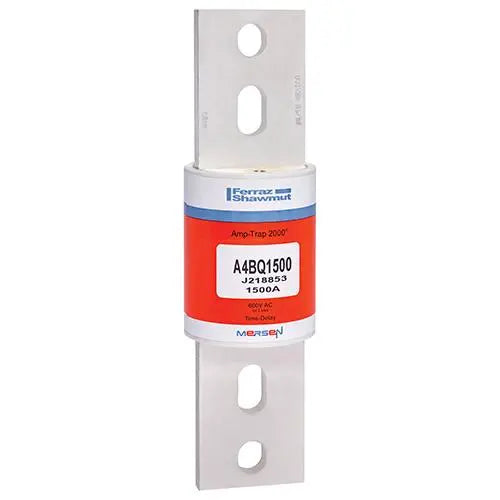

A4BQ1500 is a Ferraz Shawmut Amp-Trap 2000 Class L time-delay fuse designed for robust low-voltage circuit protection.
This current-limiting fuse features a 1500A ampere rating, 600VAC/500VDC voltage rating, and a 200kA AC interrupting capacity. It is UL and CSA certified, suitable for both AC and DC applications, and offers enhanced current-limiting performance compared to standard Class L fuses. The A4BQ1500 is constructed with silver-plated copper blade terminals for reliable connectivity and is mounted via bolted connection for secure installation.
-
Key Specifications
- Part Number: A4BQ1500
- Manufacturer: Ferraz Shawmut (Mersen)
- Amperage: 1500A
- Voltage: 600VAC, 500VDC
- Poles: 1
- Mounting Type: Bolted
- Interrupt Rating: 200kA AC
- Series/Frame: Amp-Trap 2000, Class L
- Trip Unit: Time-Delay (4 seconds)
- Certifications: UL 248, CSA C22.2, ROHS Compliant
- Terminal Material: Silver-plated copper
- Body Material: GMG (Glass-Mat Reinforced)
- Dimensions: 3" diameter x 10.75" length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A4BQ1500
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A4BQ
- Voltage : 600
- Amperage : 1500
- AIC rating : 200kA@600V
- Diameter : 3
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 782001930110
- GTIN : 00782001930110
- Country of Origin : Mexico
- Dimensions : x 10-3/4 in x
- Weight : 6
- Certification : CSA, UL
