Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

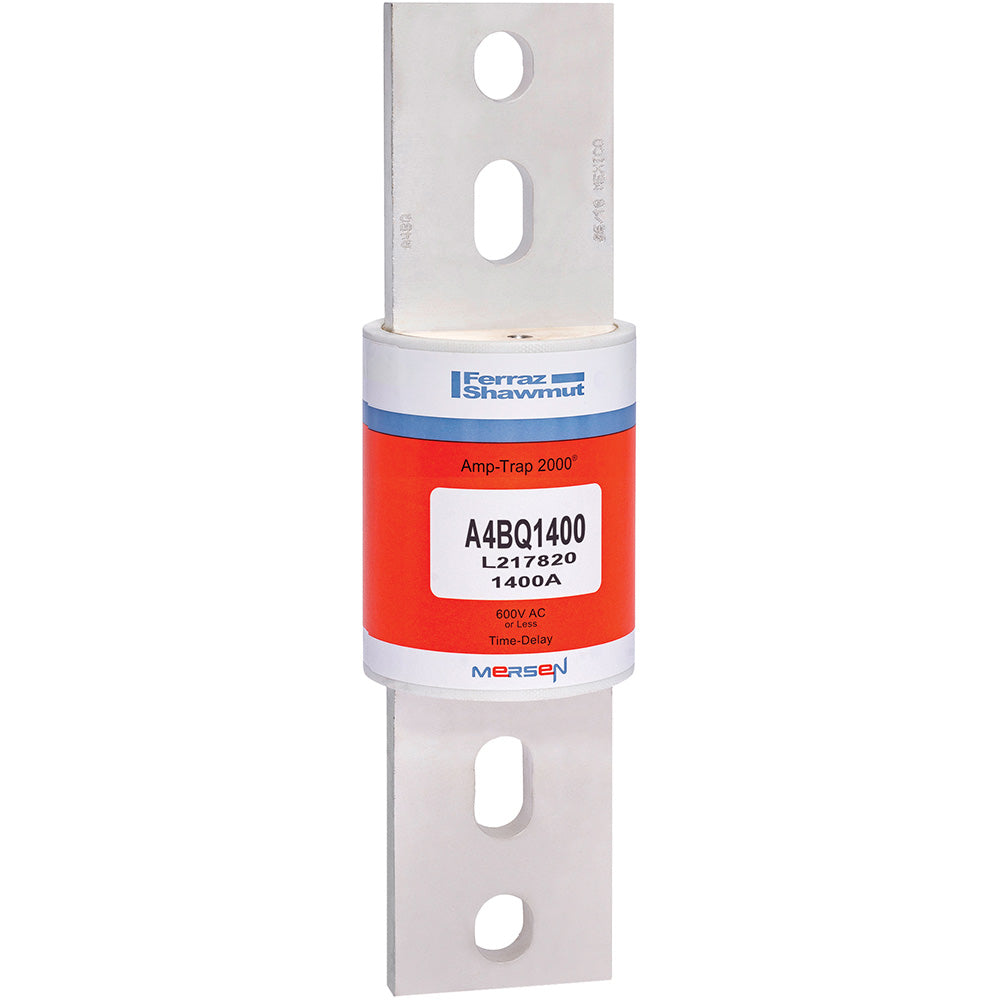

A4BQ1400
A4BQ1400 is a Class L time-delay fuse designed for high-current industrial applications, providing reliable protection with fast short-circuit response and high inrush tolerance. This Mersen Amp-Trap 2000 A4BQ fuse features a 1400A current rating, 600VAC/500VDC voltage rating, and a 300kA interrupting rating. Its time-delay characteristic allows it to handle high inrush currents from motors and transformers without nuisance tripping, while its current-limiting design minimizes let-thru energy and peak current during faults. The fuse is built with a fiberglass body for durability in harsh environments and includes a rejection-style design to prevent incorrect replacement.
- Part Number: A4BQ1400
- Manufacturer: Mersen
- Series: Amp-Trap 2000 A4BQ
- Amperage: 1400A
- Voltage Rating: 600VAC, 500VDC
- Interrupting Rating: 300kA
- Time-Delay: Yes (4-second at 500% rated current)
- Current Limiting: Yes
- Mounting Type: Blade
- Physical Size: 3" x 10 3/4"
- Certifications: UL 248-10, CSA C22.2 No. 248.10
- Features: Pure silver links, high-visibility orange label, metal-embossed date/catalog number
Specifications
- Part Number: A4BQ1400
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Section : Fuses
- Family : Amp-Trap 2000
- Type : A4BQ
- Voltage : 600
- Amperage : 1400
- AIC rating : 200kA@600V
- Diameter : 3
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 782001930097
- GTIN : 00782001930097
- Weight : 6
