Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A4BQ1000

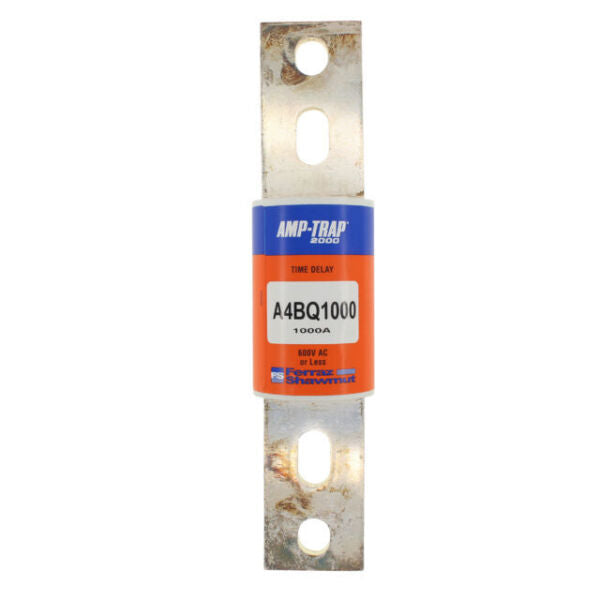

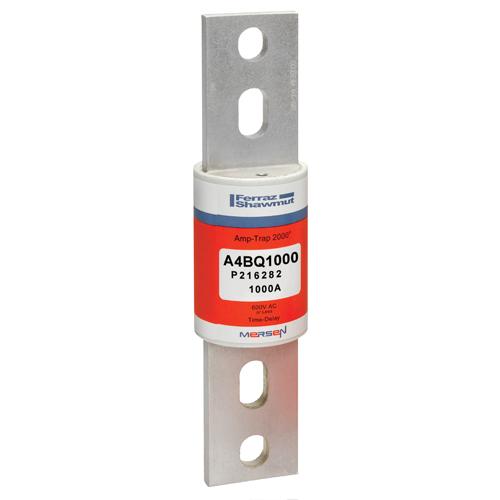

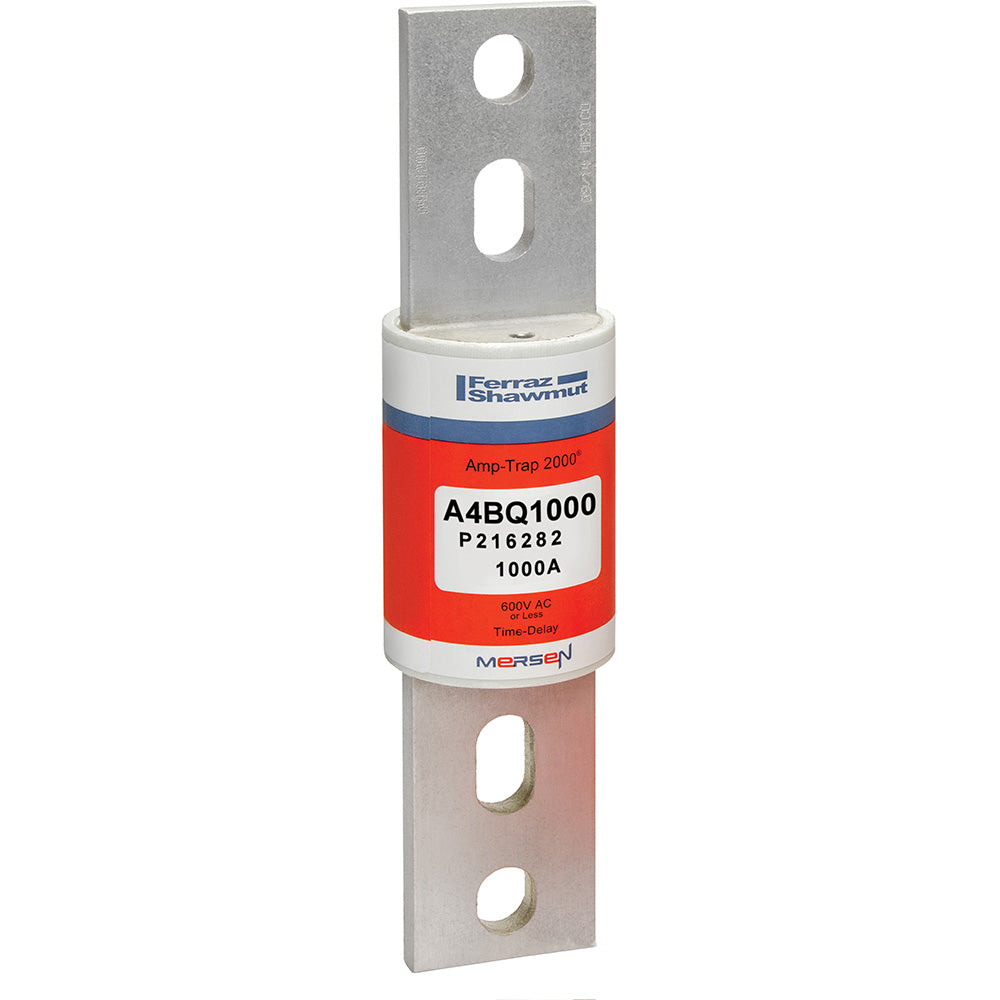

A4BQ1000 is a Mersen 1000 Amp, 600 Volt Class L time-delay fuse designed for reliable circuit protection.This fuse features a bolt-on mounting type and a 200kA interrupt rating, suitable for high inrush loads such as motors and transformers. It provides current-limiting protection with a time-delay characteristic to prevent nuisance openings. The fuse body is fiberglass for durability, and it includes a rejection-style design to prevent replacement errors. It complies with UL Class L standards and is part of the Amp-Trap 2000 series.
- Amperage: 1000 A
- Voltage Rating: 600 VAC, 500 VDC
- Fuse Class: UL Class L
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200 kA
- Mounting Type: Bolt-On
- Series: Amp-Trap 2000 A4BQ
- Body Material: Fiberglass
- Rejection-Style Design for Safety
- Current Limiting
- Suitable for High Inrush Loads
- Compliance: UL Listed
Specifications
- Part Number: A4BQ1000
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A4BQ
- Voltage : 600
- Amperage : 1000
- AIC rating : 200kA@600V
- Diameter : 2.5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 782001939380
- GTIN : 00782001939380
- Country of Origin : Mexico
- Dimensions : x 10-3/4 in x
- Weight : 4
- Certification : CSA, UL
