A4BQ100 - Eaton 100 Amp 600 Volt AC Class L Time Delay Fuse, 1-Pole, 200kA Interrupt Rating

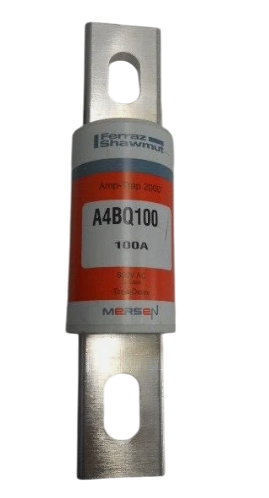

A4BQ100

A4BQ100 is a 100 Amp, 600 Volt AC Class L time delay fuse designed for reliable circuit protection.A4BQ100 features current limiting technology with a 4-second time delay, suitable for industrial and commercial applications. It has an AC interrupting rating of 200,000 amperes and a DC interrupting rating of 100,000 amperes. The fuse is UL listed to standard 248-10 and CSA certified, ensuring compliance with safety standards. It measures 2 inches in diameter by 8 5/8 inches in length and includes pure silver elements for enhanced performance.

Key Specifications
• Amperage: 100 Amps
• Voltage Rating: 600 VAC, 500 VDC
• Poles: 1
• Fuse Type: UL Class L Time Delay
• Interrupting Rating: 200,000 AIC (AC), 100,000 AIC (DC)
• Physical Size: 2" diameter x 8 5/8" length
• Mounting Type: Cartridge style
• Certifications: UL Listed, CSA Certified
• Current Limiting: Yes
• Element Material: Pure Silver

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BQ100
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Section : Fuses
• Family : Amp-Trap 2000
• Type : A4BQ
• Voltage : 600
• Amperage : 100
• AIC rating : 200kA@600V
• Diameter : 2
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 782001931070
• GTIN : 00782001931070
• Country of Origin : Mexico
• Dimensions : x 8-5/8 in x
• Weight : 2.6
• Certification : CSA, UL
