Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
A480T1E

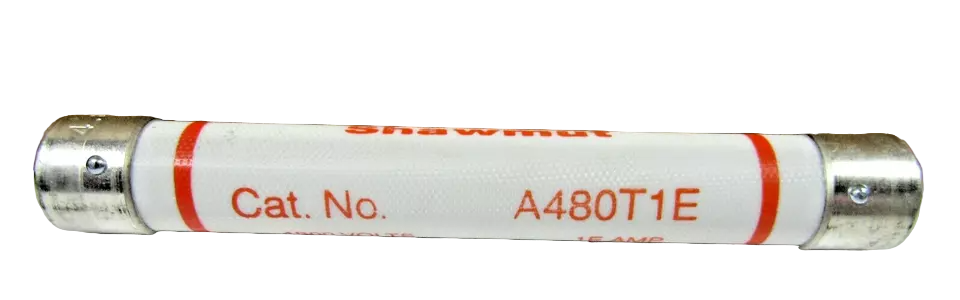

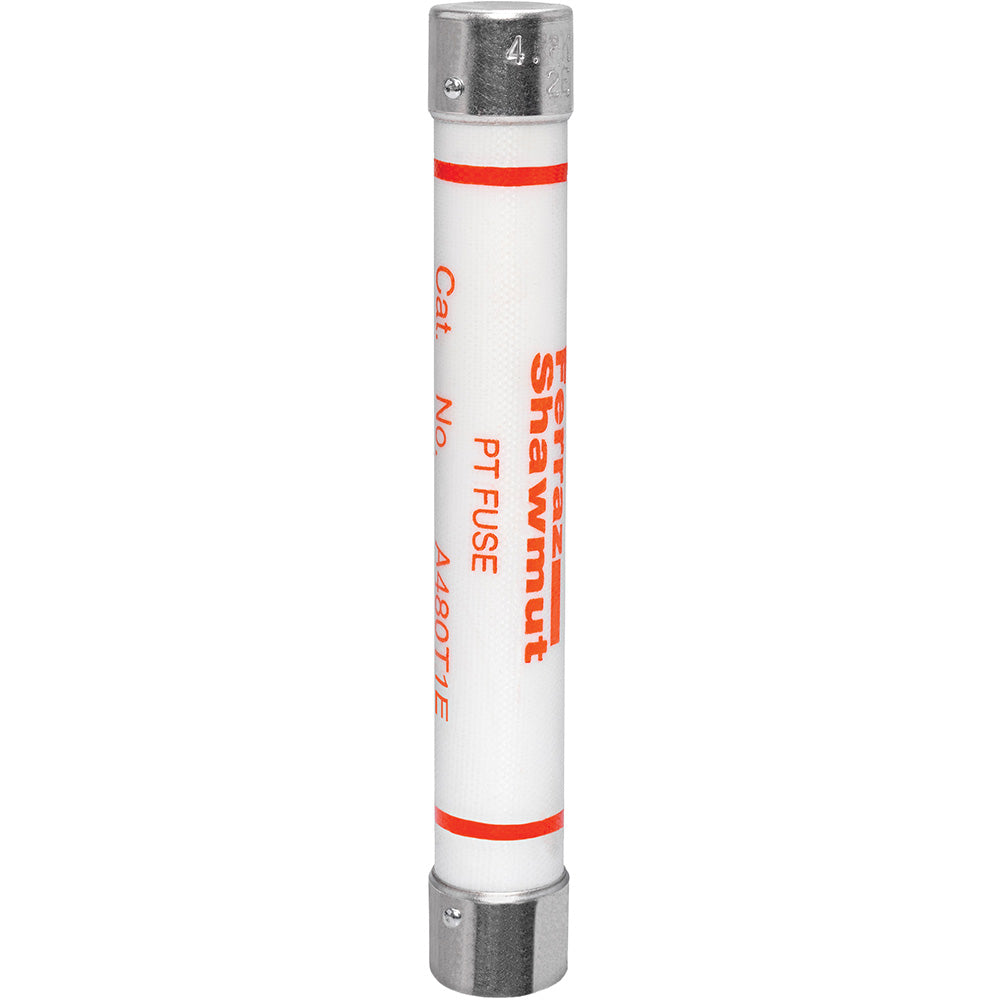

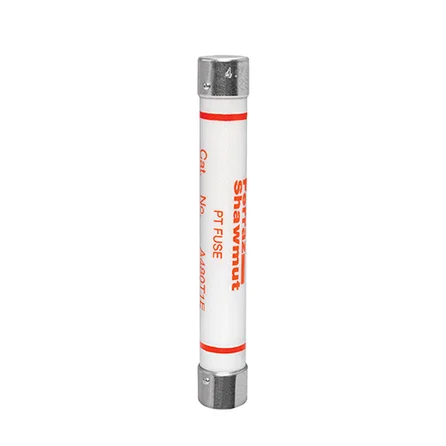

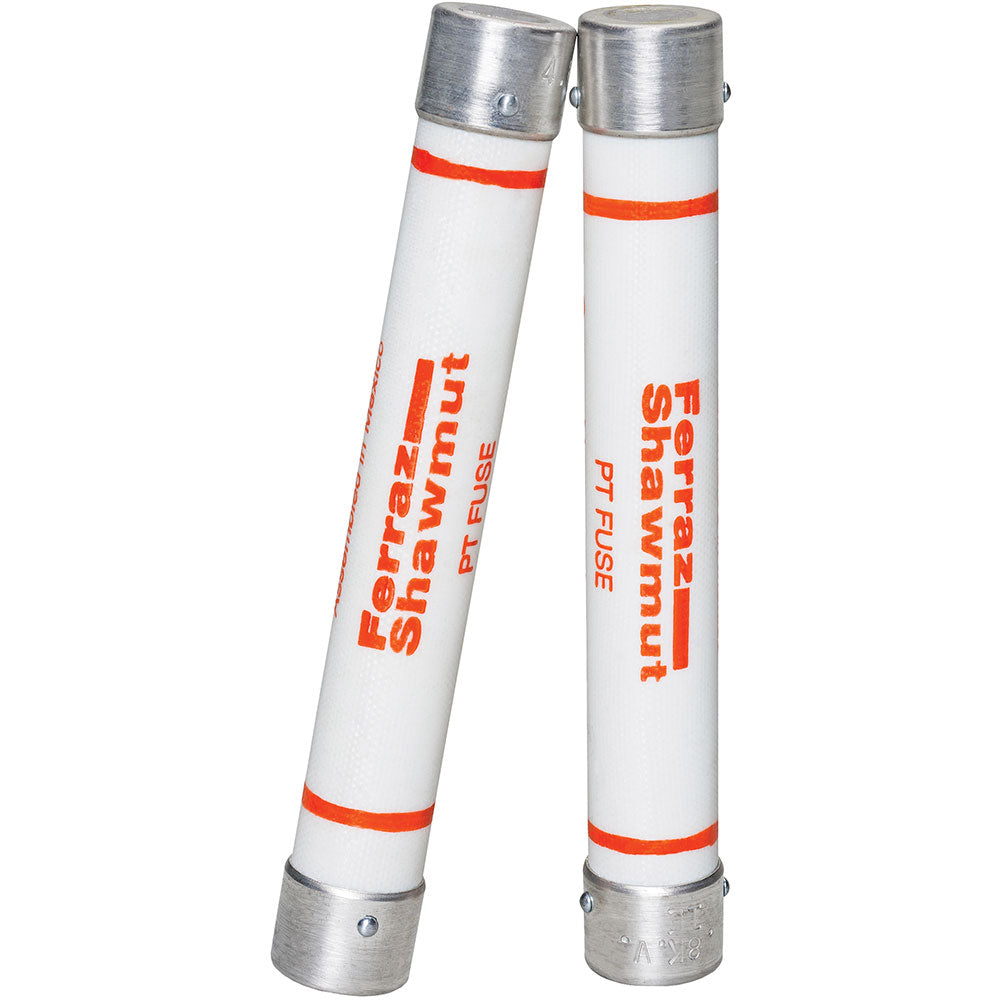

A480T1E is a medium voltage potential transformer fuse designed for primary winding protection in electrical systems. This Mersen Amp-Trap® fuse provides reliable current-limiting protection with a high interrupting rating, making it suitable for demanding applications. The A480T1E features a 4800VAC voltage rating, 1A current rating, and a 50kA interrupting rating at 4800VAC. It is E-rated, non-indicating, and uses a clip mounting style. The fuse is constructed with a ferrule terminal and is part of the Amp-Trap® series, known for superior equipment protection and durability in medium voltage environments.
- Part Number: A480T1E
- Manufacturer: Mersen
- Series: Amp-Trap®
- Type: Medium Voltage Potential Transformer Fuse
- Voltage Rating: 4800VAC
- Current Rating: 1A
- Interrupting Rating: 50kA at 4800VAC
- Mounting Type: Clip
- Terminal Type: Ferrule
- Indicator: Non-indicating
- Class Rating: E
- Protection Type: Current-Limiting
Specifications
- Part Number: A480T1E
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : Amp-Trap Series
- Type : A480T
- Voltage : 4800
- Amperage : 1
- AIC rating : [email protected]
- Diameter : 0.81
- Class Rating : E
- Barrels : 1
- Clip Center : 5
Product Data
- UPC : 782001800505
- GTIN : 00782001800505
- Country of Origin : Mexico
- Dimensions : x 5-5/8" x
- Weight : 0.4
