Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
A480R4R-1

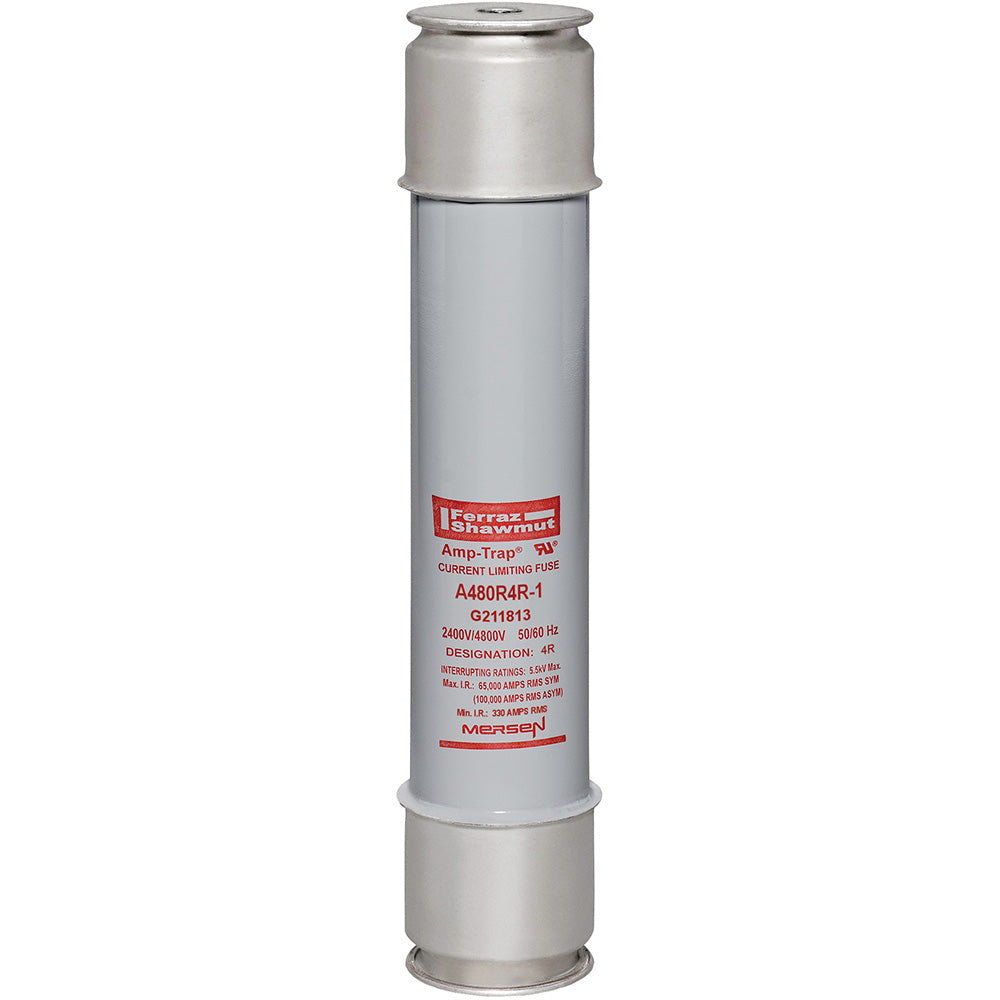

A480R4R-1 is a Mersen AMP-TRAP back-up current-limiting medium voltage motor protection fuse designed for industrial power distribution applications.
This R-rated fuse delivers reliable protection in medium voltage systems with a 4800V AC rating and 130 ampere capacity. The fuse features a 65 kA interrupt rating at 4.8 kV, time-delay operation, and clip mounting with visual indicator for easy identification. The unit operates at a maximum temperature of 80 degrees Celsius and includes a split crucible design for enhanced performance.
- Part Number: A480R4R-1
- Manufacturer: Mersen
- Amperage: 130 A
- Voltage Rating: 4800V AC
- Interrupt Rating: 65 kA
- Class: R-Rated
- Mounting Type: Clip
- Length: 15.88 inches
- Diameter: 3 inches
- Max Operating Temperature: 80 degrees C
- Type: Back-Up Current-Limiting
- UL Approved
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A480R4R-1
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : Amp-Trap
- Type : A480R
- Voltage : 4800
- Amperage : 130
- AIC rating : [email protected]
- Temp Rating : -13–158 °F (-25–70 °C)
- Diameter : 3
- Class Rating : R
- Barrels : 1
- Clip Center : 12.5
Product Data
- UPC : 782001800680
- GTIN : 00782001800680
- Country of Origin : Mexico
- Dimensions : x 15-7/8 in x
- Weight : 11
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : ANSI C37.46-2000, UL Recognized, UR
