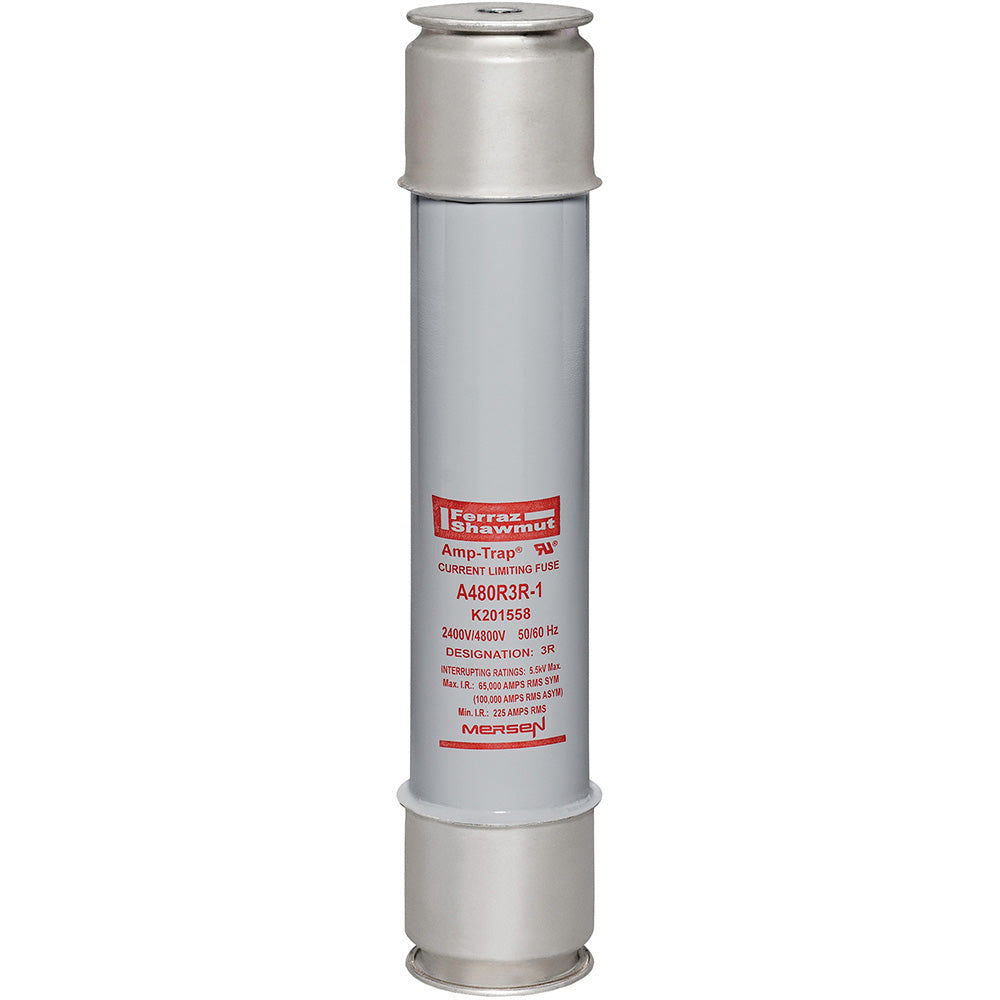

A480R3R-1 - Mersen 100A 4.8kV R-Rated Medium Voltage Motor Protection Fuse, Ferrule Mount, Indicating

A480R3R-1

A480R3R-1 is a Mersen 100 amp R-rated medium voltage motor protection fuse designed for reliable short circuit protection of medium voltage motors and motor controllers.This fuse features a 4.8 kV AC voltage rating and a 65 kA interrupt rating, providing high current-limiting performance. It has a 3-inch diameter barrel with ferrule mounting compatible with standard clips, and includes an indicating blown fuse indicator for positive identification of fuse status. The fuse body is epoxy coated and silver-plated copper contacts ensure excellent conductivity. It is UL recognized and RoHS compliant.

• Amperage: 100 A
• Voltage Rating: 4.8 kV AC
• Interrupt Rating: 65 kA at 4.8 kV AC
• Class: R (R-Rated)
• Mounting Type: Ferrule
• Indicating Fuse: Yes
• Body Diameter: 3 inches
• Body Length: 15.97 inches
• Silver Plated Copper Contacts
• UL Recognized and RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A480R3R-1
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : Amp-Trap
• Type : A480R
• Voltage : 4800
• Amperage : 100
• AIC rating : [email protected]
• Diameter : 3
• Class Rating : R
• Barrels : 1
• Clip Center : 12.5

Product Data

• UPC : 782001800697
• GTIN : 00782001800697
• Country of Origin : Mexico
• Dimensions : x 15-7/8" x
• Weight : 11
• Certification : ANSI C37.46-2000, UL Recognized, UR
