Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A3T90

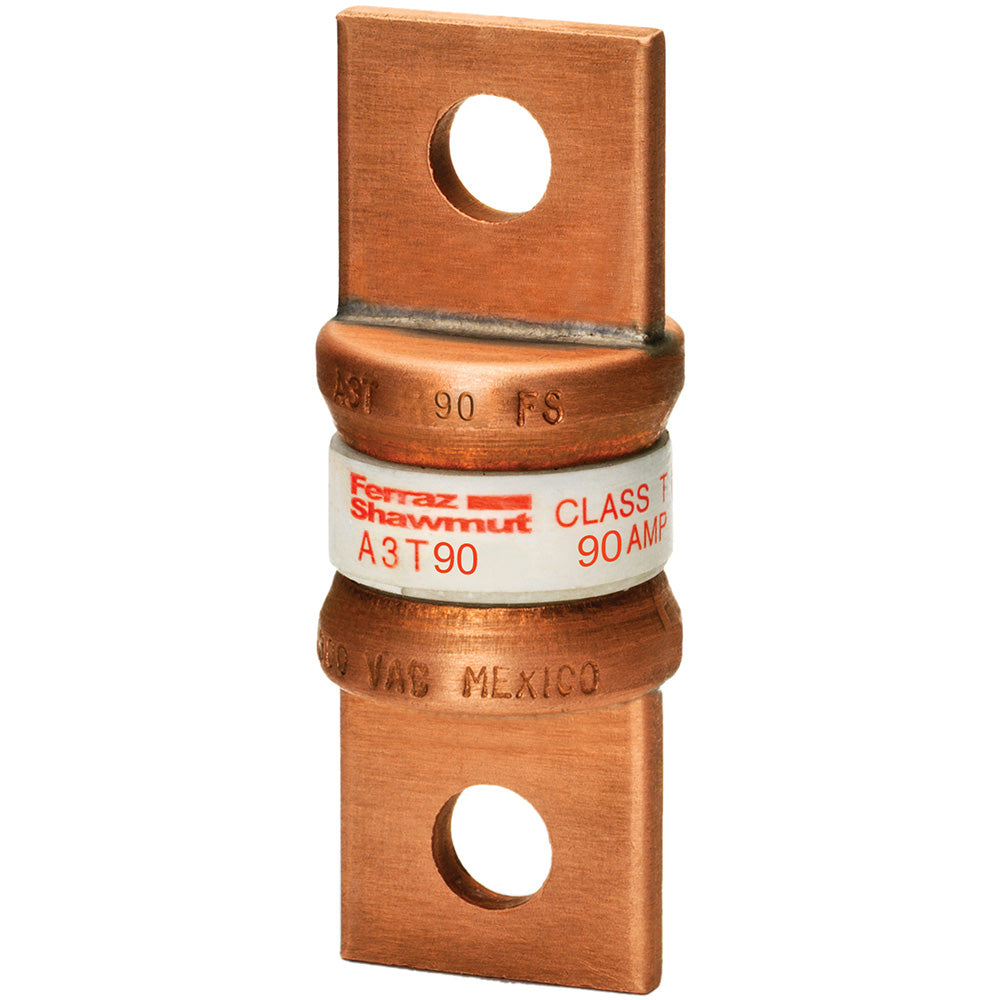

A3T90 is a 90 Amp Class T fast-acting fuse designed for compact electrical systems requiring high current-limiting protection.
This Eaton A3T90 fuse operates at 300VAC and 160VDC with an interrupting rating of 200kA AC and 50kA DC, providing rapid fault interruption to minimize damage. Its compact glass melamine body ensures dimensional stability and prevents substitution with lower-rated fuses. The fuse features a blade-stamped catalog number for permanent identification and is suitable for bolt mounting in loadcenter applications.
- Amperage: 90 Amps
- Voltage Rating: 300VAC / 160VDC
- Interrupting Rating: 200kA AC / 50kA DC
- Fuse Type: Class T, Fast-Acting
- Mounting Type: Bolt Mount
- Body Material: Glass Melamine
- Dimensions: 2.16 inches length x 0.81 inches diameter
- Frequency: 50/60 Hz
- Non-Indicating
- Blade-stamped catalog number for identification
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A3T90
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A3T
- Type : A3T
- Voltage : 300
- Amperage : 90
- AIC rating : 200kA@300V
- Diameter : 0.81
- Class Rating : T
- Barrels : 1
- Clip Center : 1.56
Product Data
- UPC : 782001890179
- GTIN : 00782001890179
- Weight : 5
