Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A3T800

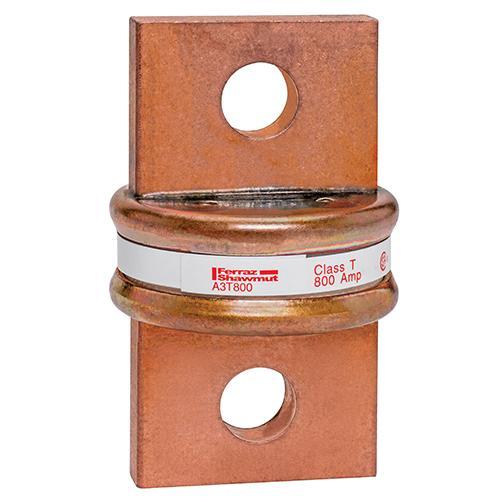

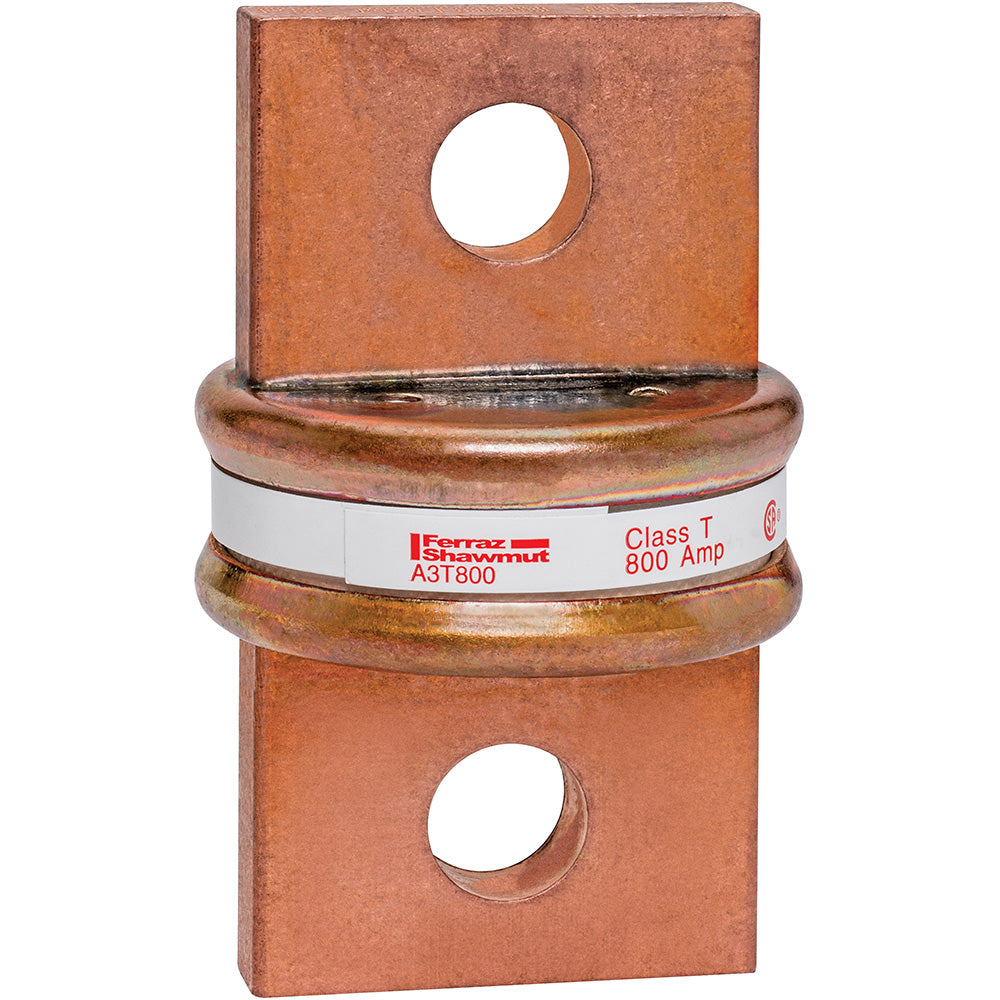

A3T800 is a Mersen Class T, fast-acting, current limiting fuse rated for 800 amps and 300 volts AC. This fuse is designed for high interrupting capacity and reliable circuit protection in demanding electrical applications. The A3T800 features a compact, blade terminal design for easy installation and permanent identification. It is non-indicating and non-rejection, ensuring compatibility with Class T fuse holders. The fuse is current limiting and provides excellent protection against short circuits and overloads.
- 800 Amps
- 300 Volts AC
- 160 Volts DC
- Class T Fuse
- Fast-Acting
- Current Limiting
- 200,000 AIC Interrupt Rating (AC)
- 50,000 AIC Interrupt Rating (DC)
- Non-Indicating
- Non-Rejection
- UL Listed
- CSA Certified
Specifications
- Part Number: A3T800
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A3T
- Type : A3T
- Voltage : 300
- Amperage : 800
- AIC rating : 200kA@300V
- Diameter : 2.08
- Class Rating : T
- Barrels : 1
- Clip Center : 2.22
Product Data
- UPC : 782001890810
- GTIN : 00782001890810
- Weight : 3
