Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A3T70

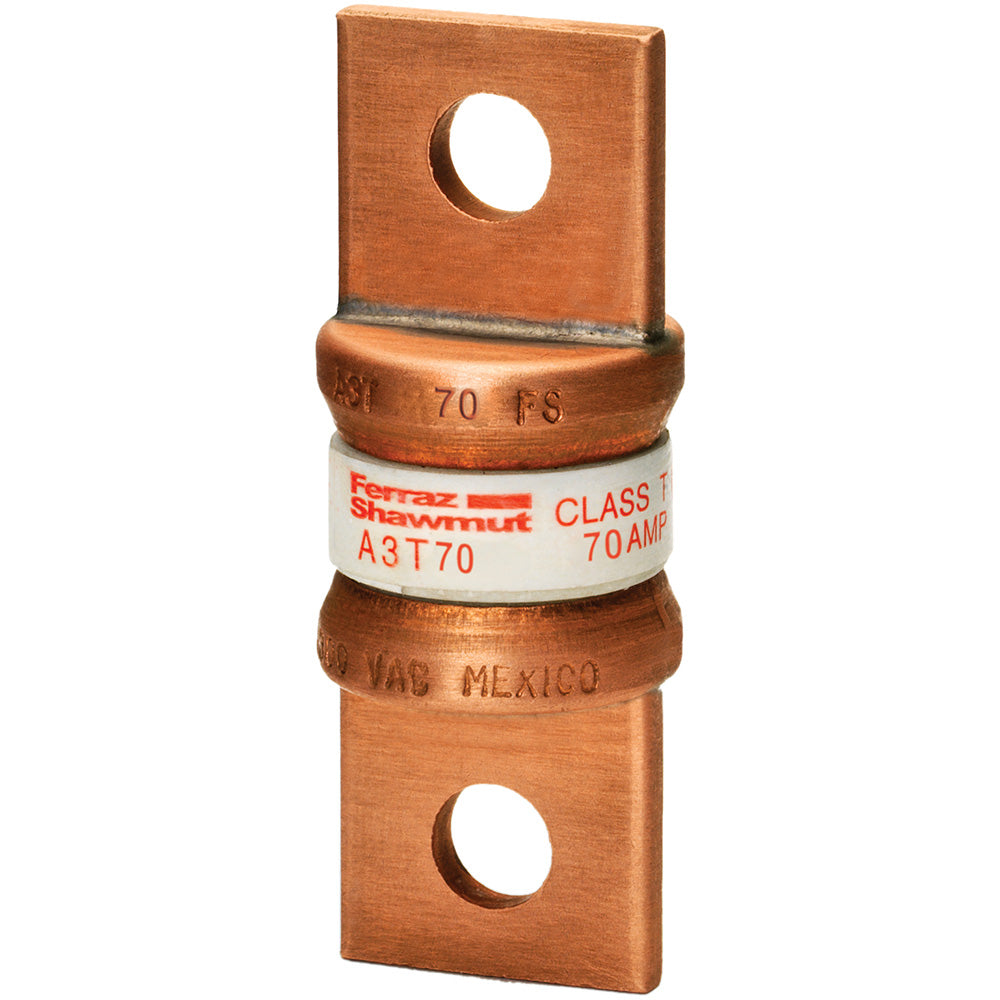

A3T70 is a 70 Amp, 300 Volt AC Class T fast acting fuse designed for reliable circuit protection.This Eaton fuse features a compact 0.81" x 2.16" cylindrical body with bolted mounting and is UL listed and CSA certified for safety and performance.
- Amperage: 70A
- Voltage Rating: 300V AC, 160V DC
- Poles: 1
- Mounting Type: Bolted
- Interrupting Rating: 200,000 AIC AC, 50,000 AIC DC
- Fuse Class: Class T
- Speed Type: Fast Acting
- Body Material: Glass Melamine
- Dimensions: 0.81" diameter x 2.16" length
- UL Listed to standard 248-15 File E2137
- CSA Certified to standard C22.2 no. 248.15
- Unique dimensions prevent replacement by other fuse classes
Specifications
- Part Number: A3T70
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A3T
- Type : A3T
- Voltage : 300
- Amperage : 70
- AIC rating : 200kA@300V
- Diameter : 0.81
- Class Rating : T
- Barrels : 1
- Clip Center : 1.56
Product Data
- UPC : 078200189015
- GTIN : 00782001890155
- Weight : 5
