Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A3T600

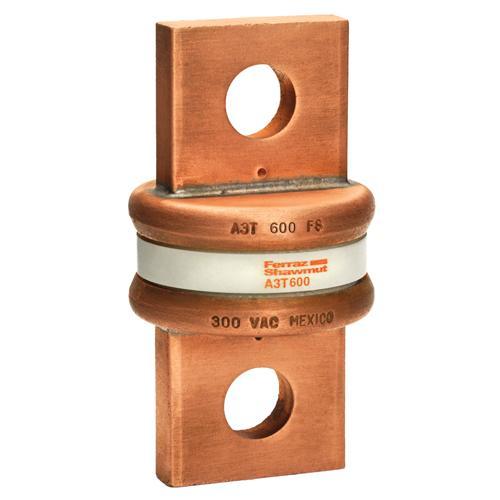

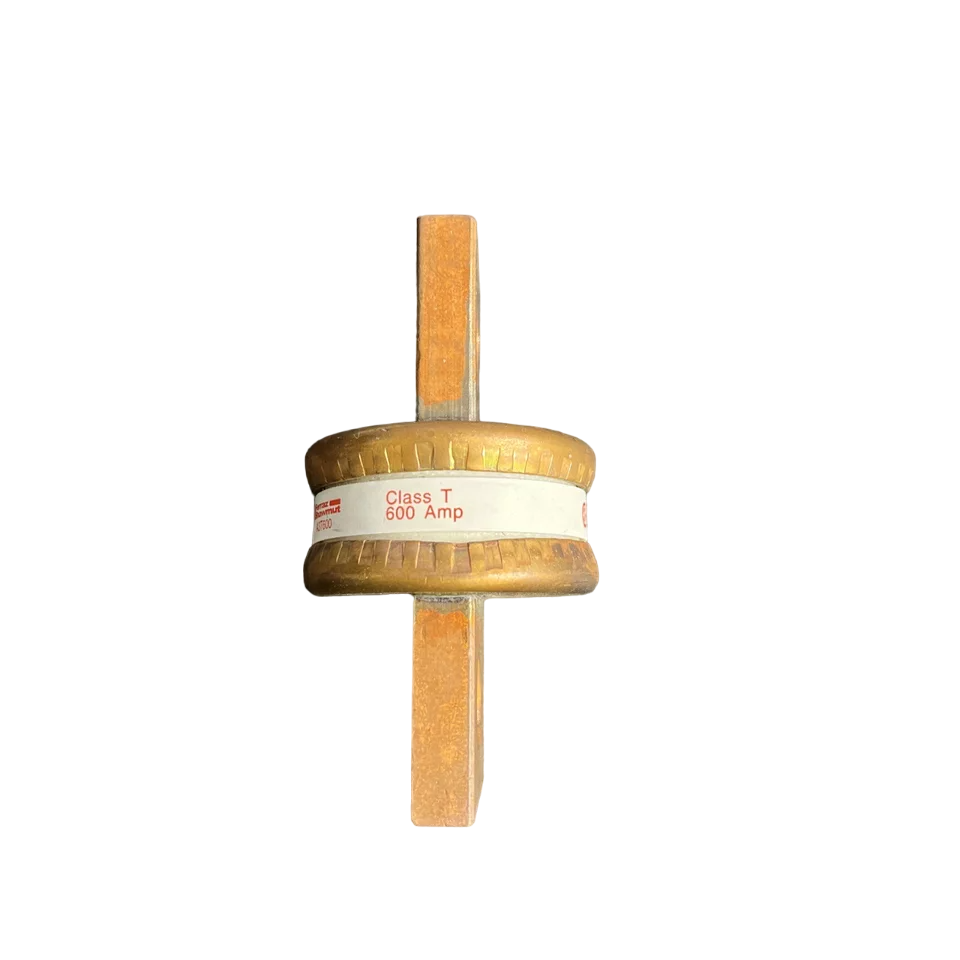

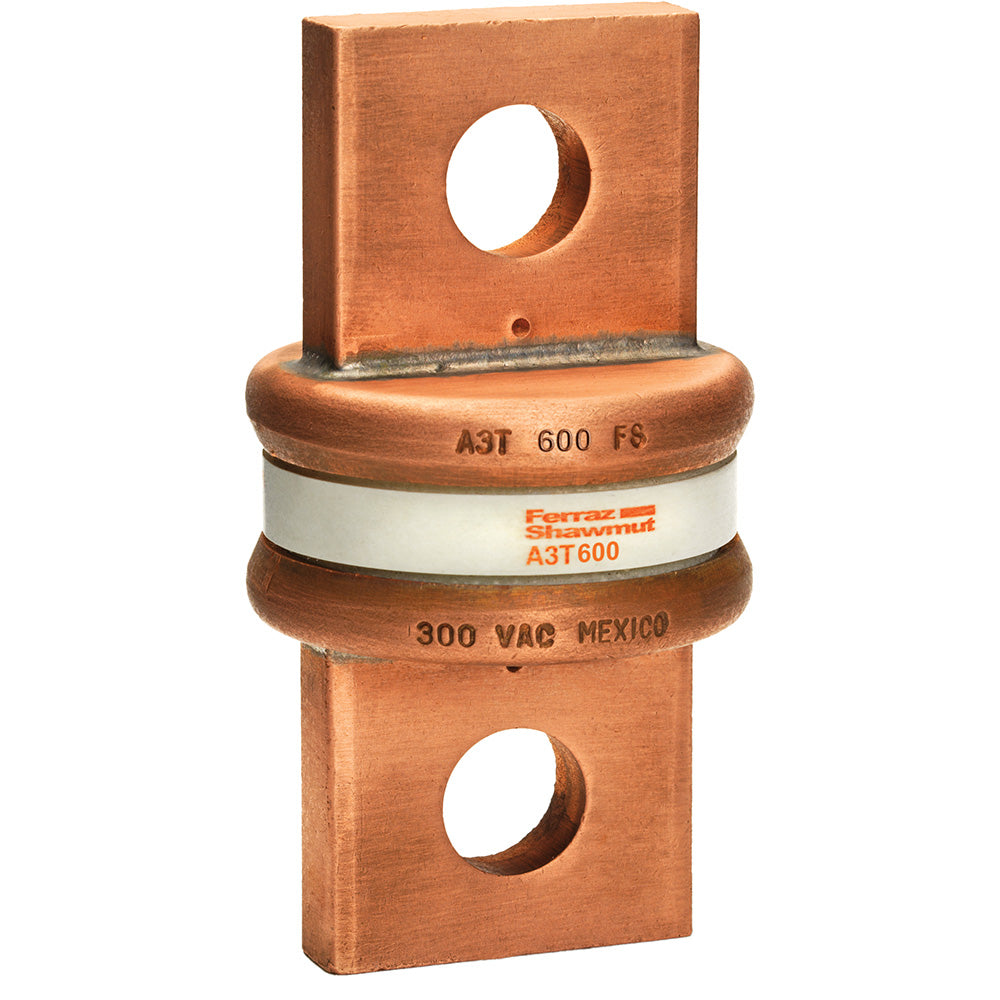

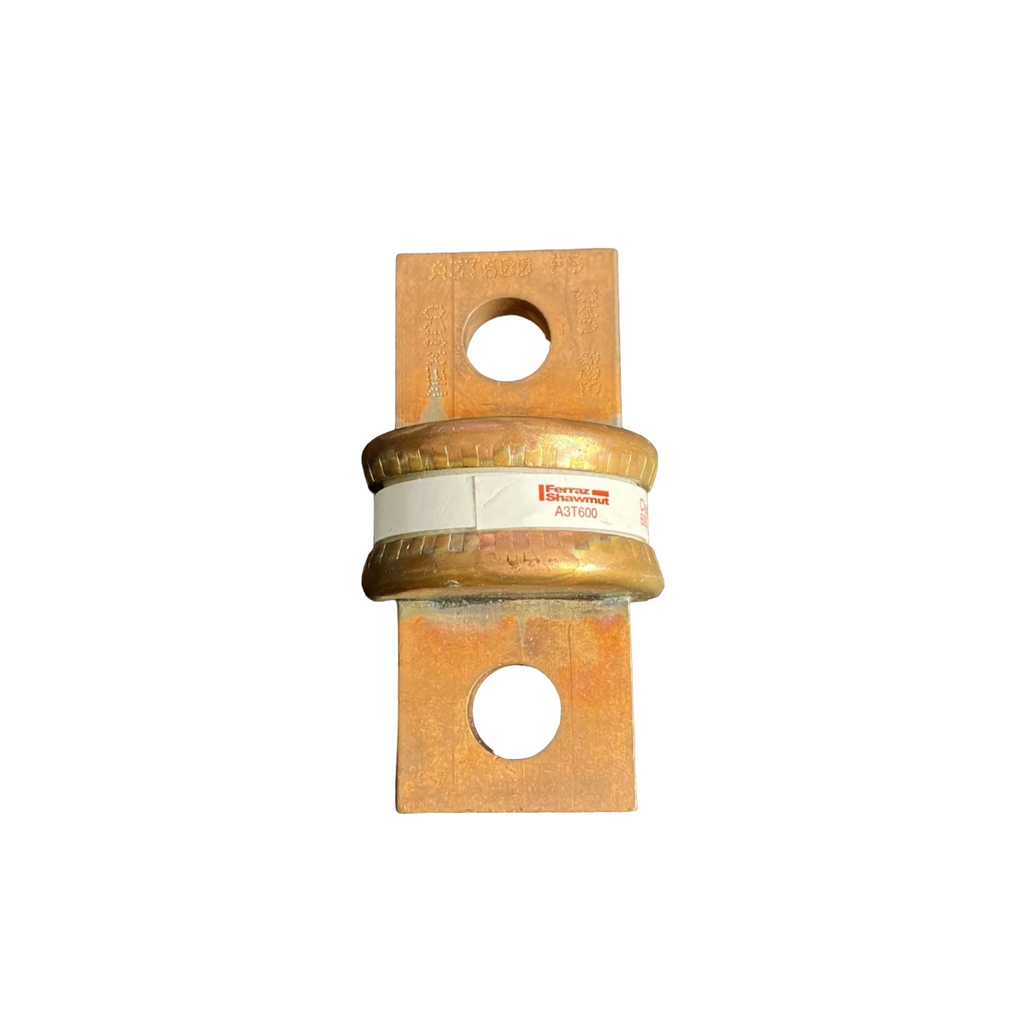

A3T600 is a 600 Amp Class T fast acting fuse designed for reliable circuit protection in industrial applications.This Mersen fuse features a 300 Volt AC and 160 Volt DC rating with a bolt-on mounting type. It offers a high interrupt rating of 200,000 amperes (200 kA) at 300 VAC, ensuring excellent current-limiting performance with low peak let-thru current. The fuse has a cylindrical body, measures approximately 1.62 inches in diameter and 3.06 inches in length, and complies with UL 248/248-15 and CSA C22.2 certifications.
- Key Specifications
- Amperage: 600 Amp
- Voltage Rating: 300 VAC, 160 VDC
- Interrupt Rating: 200 kA at 300 VAC
- Fuse Class: T
- Mounting Type: Bolt-On
- Poles: 1
- Body Type: Cylindrical
- Dimensions: 1.62" diameter x 3.06" length
- Certifications: UL 248/248-15, CSA C22.2
- Fast Acting, Current-Limiting
- Part Number: A3T600
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A3T
- Type : A3T
- Voltage : 300
- Amperage : 600
- AIC rating : 200kA@300V
- Diameter : 1.62
- Class Rating : T
- Barrels : 1
- Clip Center : 2.03
- UPC : 782001890315
- GTIN : 00782001890315
- Weight : 2
