Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

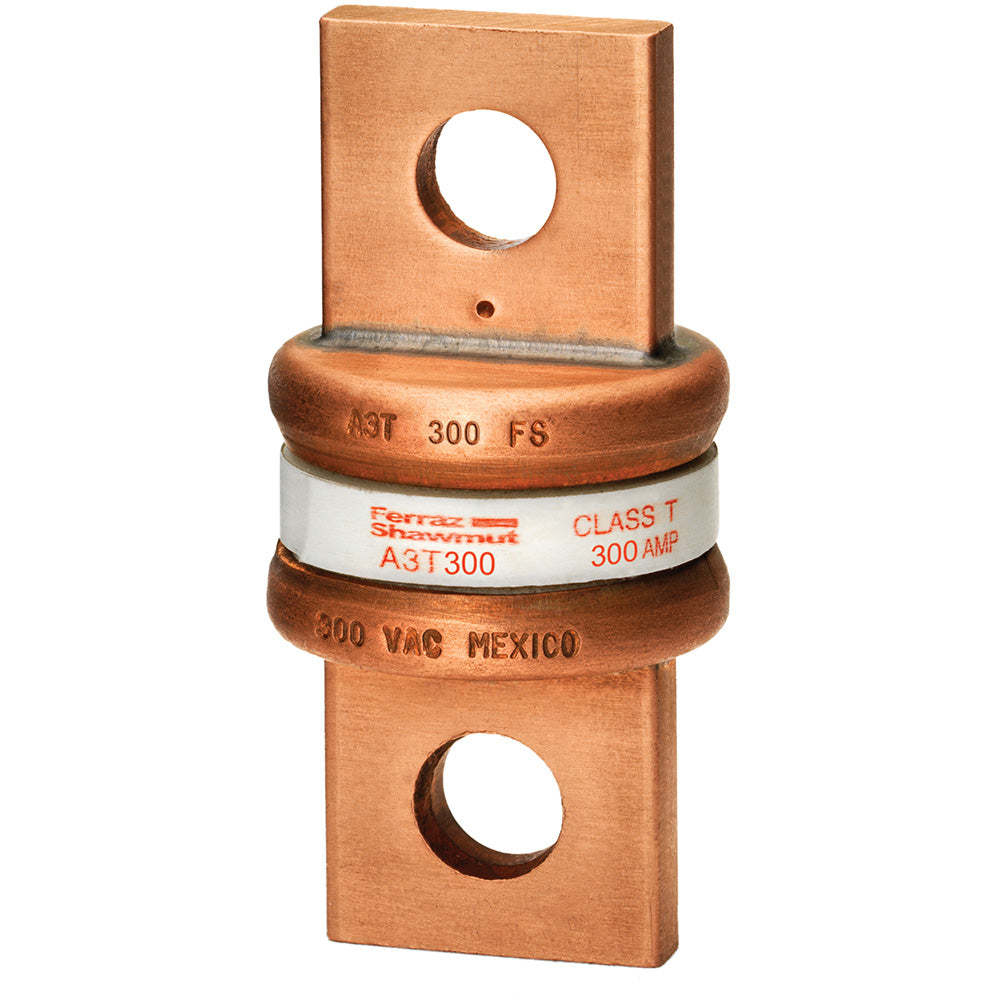

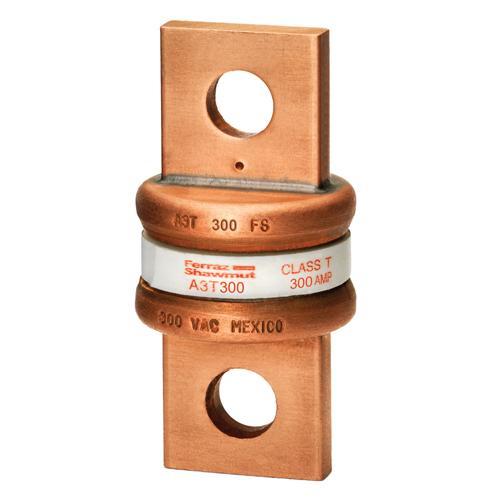

A3T300
A3T300 is a Mersen Class T fast-acting, current-limiting fuse designed for robust circuit protection in demanding applications.
This fuse features a compact, rejection-style design that prevents substitution with lower-rated fuses, ensuring safety and compliance. It is engineered for high interrupting capacity and rapid response to overcurrent conditions, making it ideal for switchboard and circuit breaker protection where space and performance are critical.
-
Key Specifications
- Amperage: 300A
- Voltage: 300VAC / 160VDC
- Poles: Single
- Mounting Type: Bolt-On
- Interrupt Rating: 200kA AC / 50kA DC
- Series/Frame: A3T (Amp-Trap®)
- Trip Unit: Not applicable (fuse)
- Certifications: UL Listed (248-15), CSA Certified (C22.2 No. 248.15), ROHS Compliant
- Speed: Fast-Acting
- Connection: Blade, Copper
- Dimensions: 1.33" diameter x 2.75" length
- Body Material: GMG
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A3T300
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A3T
- Type : A3T
- Voltage : 300
- Amperage : 300
- AIC rating : 200kA@300V
- Diameter : 1.33
- Class Rating : T
- Barrels : 1
- Clip Center : 1.84
Product Data
- UPC : 782001890261
- GTIN : 00782001890261
- Weight : 2
