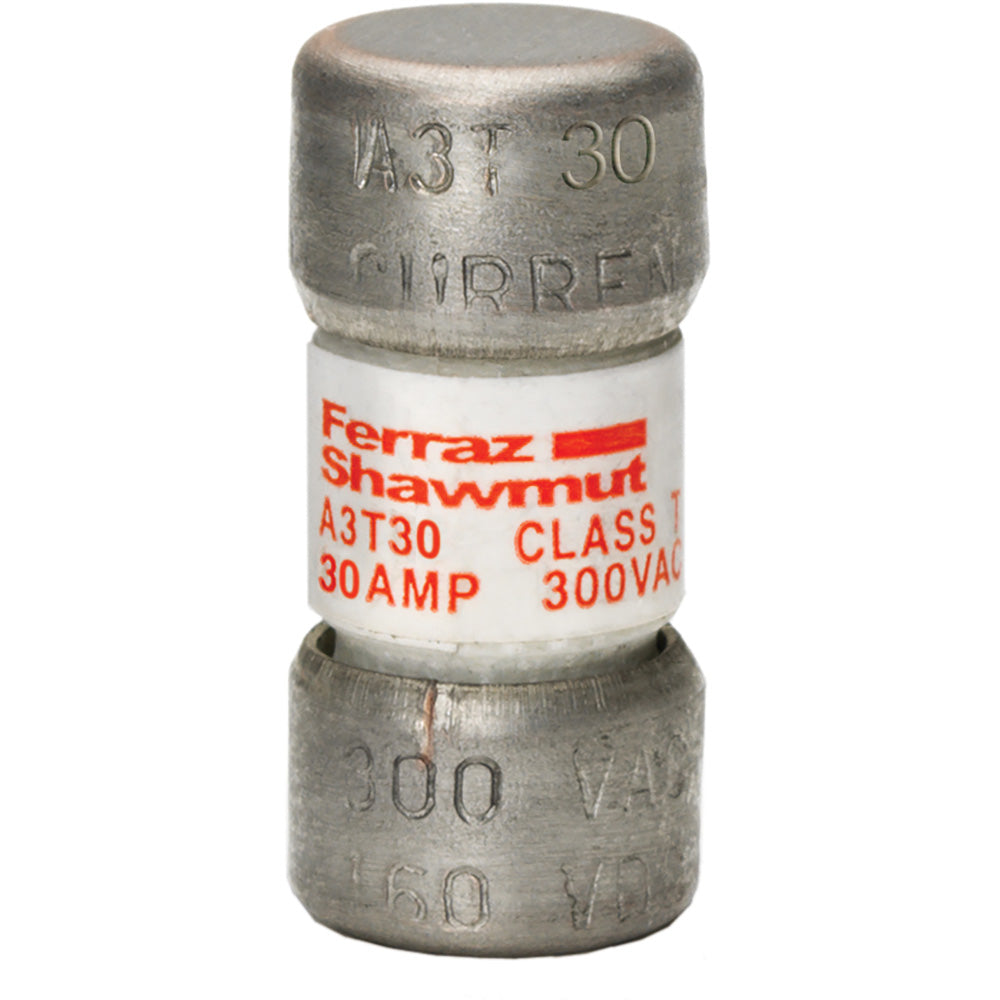

A3T30 - Eaton (Mersen) 30A 300V AC Class T Fast Acting Fuse

A3T30

A3T30 is a 30 amp, 300 volt AC Class T fast acting fuse designed for superior current limiting and compact size.This Eaton (Mersen) A3T30 fuse features a fast-acting characteristic with an AC interrupt rating of 200,000 AIC and DC interrupt rating of 50,000 AIC. It has a cylindrical glass melamine body measuring 0.41" x 0.88" for enhanced dimensional stability and design flexibility. The fuse is UL listed to standard 248-15 and CSA certified, ensuring reliable performance and safety compliance.

Key Specifications
• Amperage: 30A
• Voltage Rating: 300V AC, 160V DC
• Fuse Class: T
• Speed: Fast Acting
• Interrupt Rating: 200,000 AIC (AC), 50,000 AIC (DC)
• Poles: 1
• Body Size: 0.41" x 0.88"
• Mounting Type: Ferrule (cylindrical)
• Certifications: UL Listed (File E2137), CSA Certified
• Series/Frame: A3T
• Trip Unit: None (fuse element)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A3T30
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : A3T
• Type : A3T
• Voltage : 300
• Amperage : 30
• AIC rating : 200kA@300V
• Diameter : 0.41
• Class Rating : T
• Barrels : 1



Product Data

• UPC : 782001890094
• GTIN : 00782001890094
• Weight : 0.01
