2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A3T3

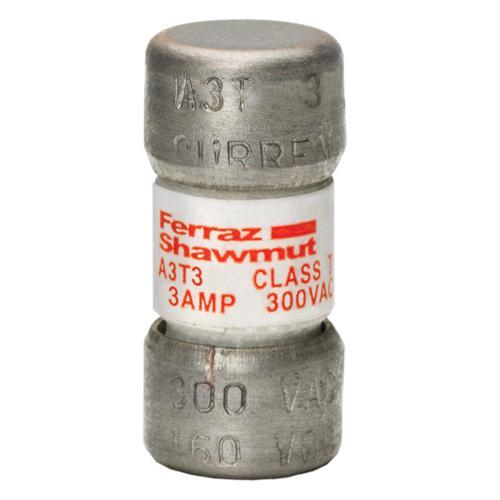

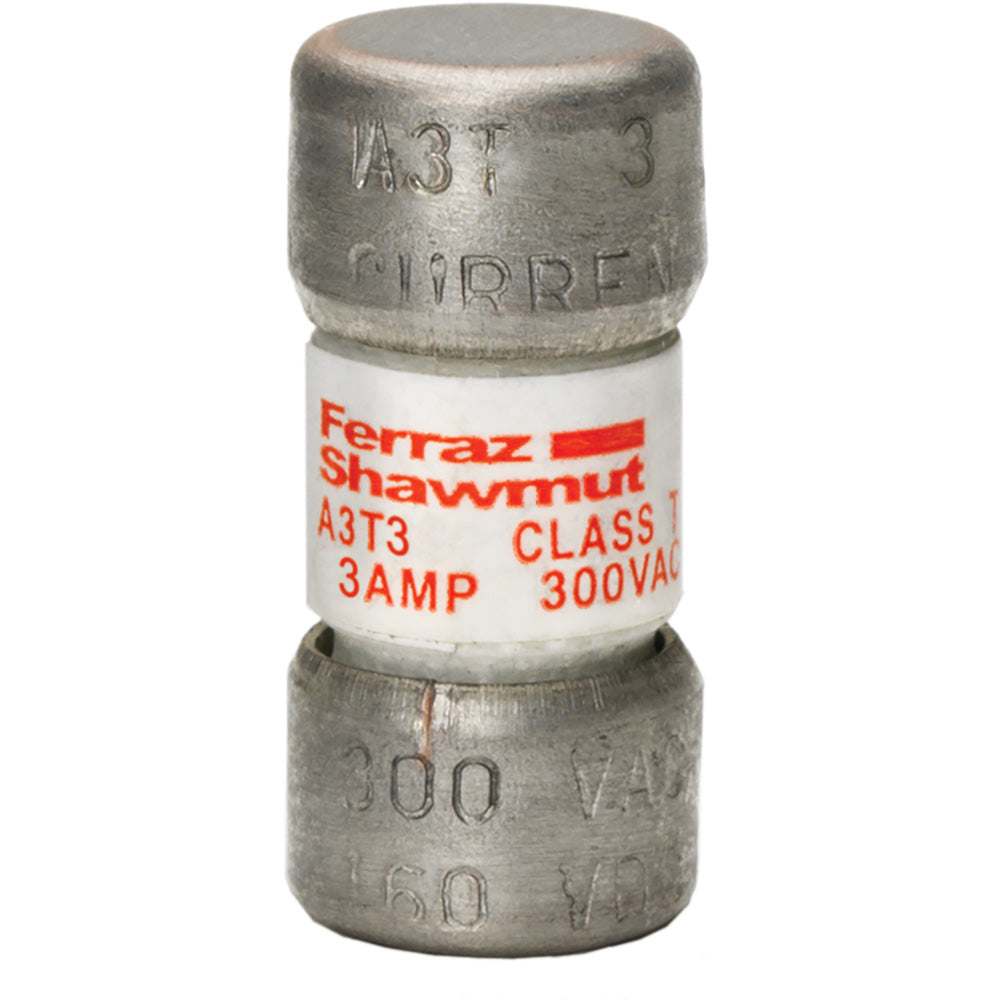

A3T3 is a Mersen Class T fast-acting fuse rated for 3 amperes and designed for low voltage applications up to 300 VAC and 160 VDC. A3T3 features a compact cylindrical glass body with a diameter of 0.41 inches and length of 0.88 inches, and uses a clip mounting type with ferrule terminals. It offers a high interrupt rating of 200 kA AC, providing excellent current-limiting protection for circuit breakers and switchboards. Certified to UL 248-15 and CSA C22.2 standards, this fuse ensures reliable and safe operation in demanding electrical environments.
- Key Specifications
- Amperage: 3 A
- Voltage Rating: 300 VAC / 160 VDC
- Fuse Class: Class T
- Trip Characteristic: Fast-Acting
- Interrupt Rating: 200 kA AC
- Mounting Type: Clip
- Terminal Type: Ferrule
- Body Material: Glass (GMG)
- Dimensions: 0.41 in diameter x 0.88 in length
- Certifications: UL 248-15, CSA C22.2
- Connection Material: Copper
- RoHS Compliant: Yes
Specifications
- Part Number: A3T3
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A3T
- Type : A3T
- Voltage : 300
- Amperage : 3
- AIC rating : 200kA@300V
- Diameter : 0.41
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 782001890032
- GTIN : 00782001890032
- Weight : 5
