Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

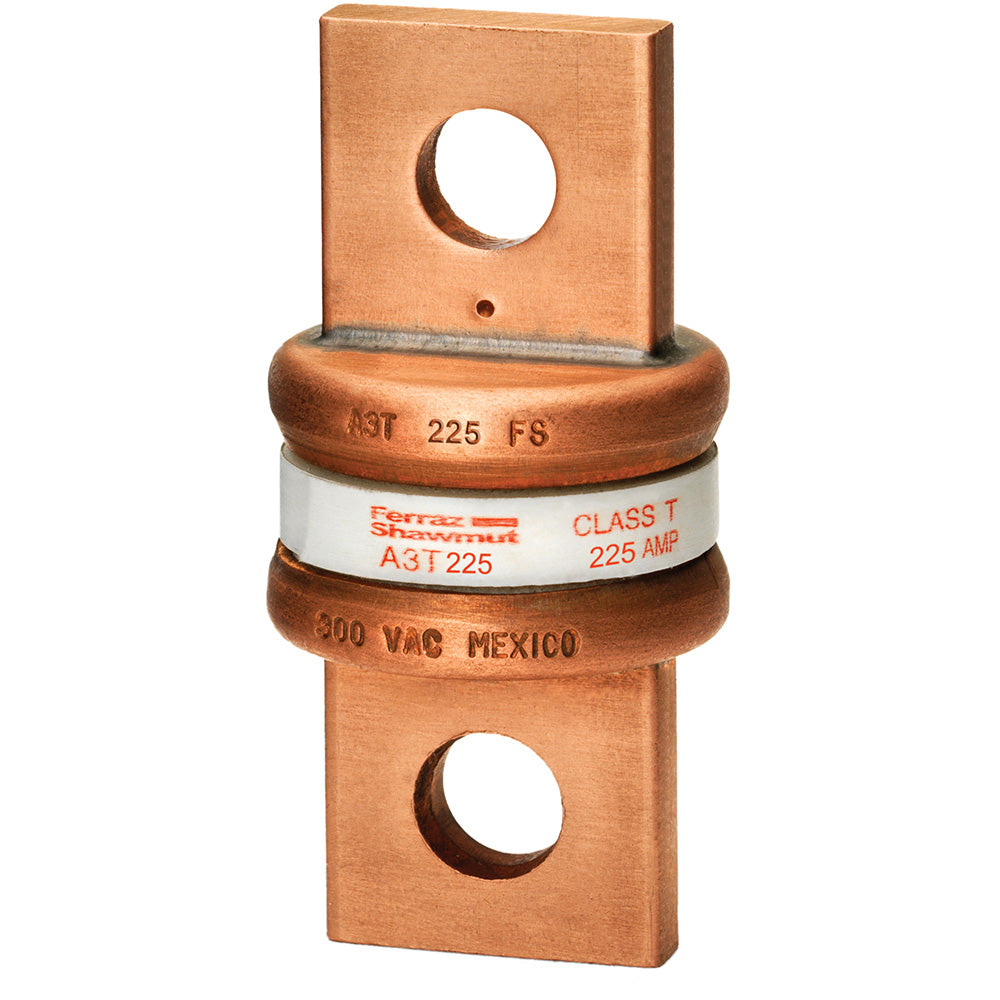

A3T225
A3T225 is a Mersen Class T fast-acting blade fuse rated for 225 amps and 300VAC/160VDC operation.This fuse features a compact design with high current-limiting capability, making it ideal for load centers, panelboards, switchboards, and metering centers.
- Current Rating: 225 Amps
- Voltage Rating: 300 VAC / 160 VDC
- Fuse Class: Class T
- Speed: Fast-Acting
- Interrupting Rating: 200 kA at 300 VAC
- Terminal Type: Blade
- Mounting Type: Bolted
- Body Material: Glass Melamine (GMG)
- UL Listed (UL 248-15, File E2137)
- CSA Certified (C22.2 No. 248.15)
- Dimensions: 1.33 inch diameter x 2.75 inch length
- RoHS Compliant
Specifications
- Part Number: A3T225
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A3T
- Type : A3T
- Voltage : 300
- Amperage : 225
- AIC rating : 200kA@300V
- Diameter : 1.33
- Class Rating : T
- Barrels : 1
- Clip Center : 1.84
Product Data
- UPC : 782001890247
- GTIN : 00782001890247
- Weight : 1
- Certification : UL, CSA
