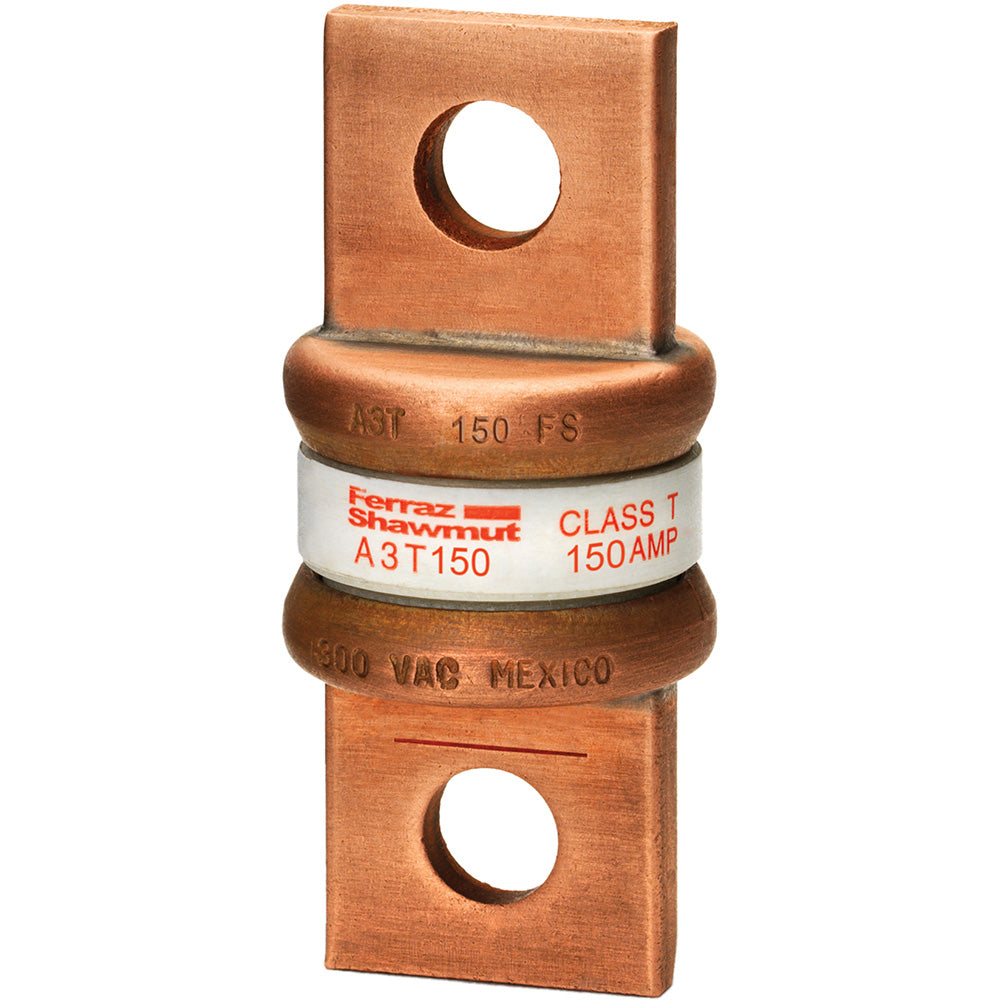

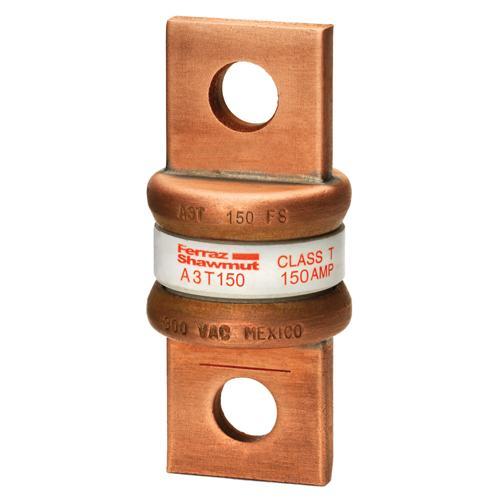

A3T150 - Mersen 150 Amp 300 Volt Class T Fast Acting Fuse

A3T150

A3T150 is a 150 Amp, 300 Volt AC Class T fast acting fuse designed for high current-limiting and compact size.A3T150 features a small physical size of 1.06" diameter by 2.44" length, providing greater design flexibility. It is UL listed to standard 248-15 and CSA certified to C22.2 no. 248.15, with an AC interrupting rating of 200,000 AIC and DC interrupting rating of 50,000 AIC. The fuse has blade-stamped catalog numbers for permanent identification and unique dimensions that prevent substitution by other fuse classes. It is suitable for load centers, panelboards, switchboards, circuit breakers, and metering centers.

Key Specifications
• Amperage: 150 Amp
• Voltage Rating: 300 Volt AC, 160 Volt DC
• Fuse Type: Class T Fast Acting
• Physical Size: 1.06" diameter x 2.44" length
• Interrupt Rating: 200,000 AIC AC, 50,000 AIC DC
• Mounting Type: Blade
• Certifications: UL 248-15, CSA C22.2 no. 248.15
• Current Limiting: Extremely Current Limiting
• Catalog Numbers: Blade stamped for permanent ID
• Unique Dimensions: Prevent replacement by other fuse classes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A3T150
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : A3T
• Type : A3T
• Voltage : 300
• Amperage : 150
• AIC rating : 200kA@300V
• Diameter : 1.06
• Class Rating : T
• Barrels : 1
• Clip Center : 1.7

Product Data

• UPC : 782001890216
• GTIN : 00782001890216
• Weight : 1
