Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A3T125

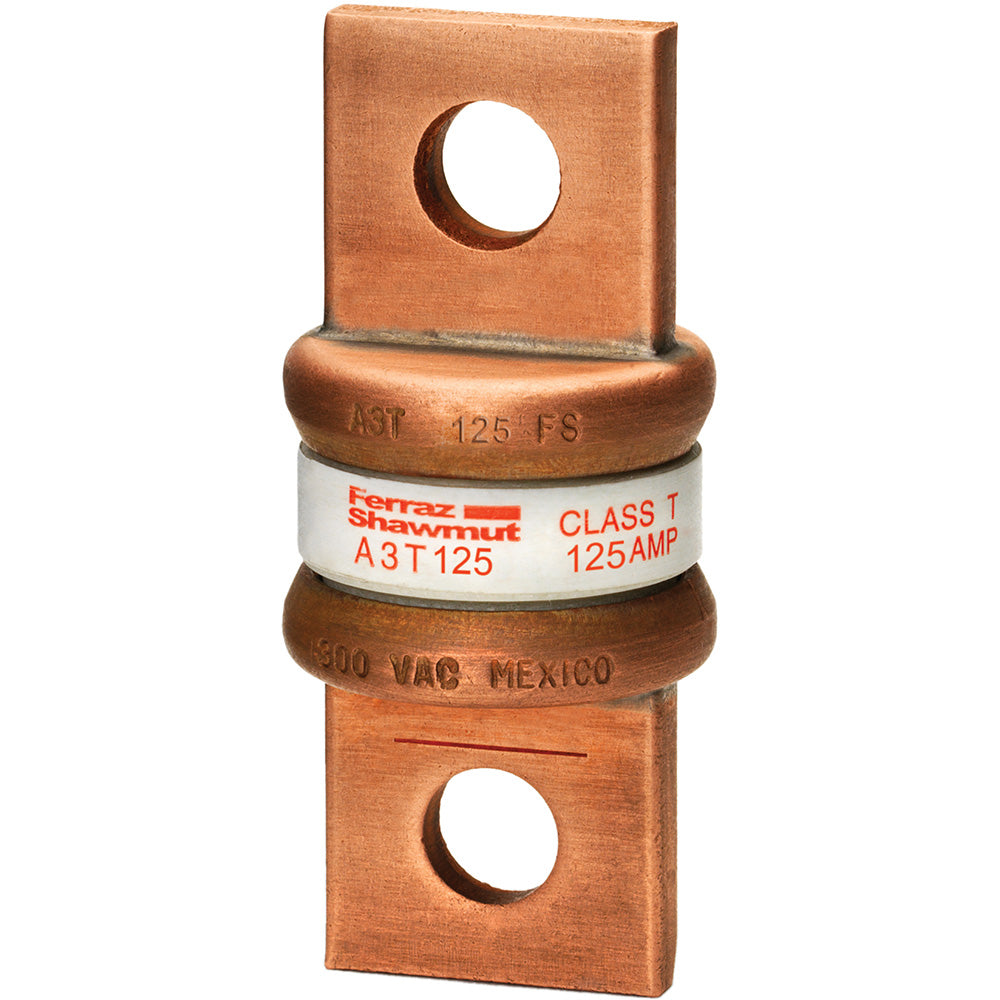

A3T125 is a Mersen Class T fast-acting fuse designed for high current-limitation in a compact, blade-terminal package.
This fuse features a glass melamine body for dimensional stability, unique dimensions to prevent substitution by lower-rated fuses, and blade-stamped catalog numbers for permanent identification. It is ideal for load centers, panelboards, switchboards, circuit breakers, and metering centers where space-saving and high interrupting capacity are critical.
-
Key Specifications
- Amperage: 125 A
- Voltage: 300 V AC / 160 V DC
- Poles: Not applicable (fuse, single element)
- Mounting Type: Blade terminal
- Interrupt Rating: 200,000 A AC / 50,000 A DC
- Series/Frame: Class T (A3T)
- Trip Unit: Fast-acting
- Certifications: UL Listed (248-15, File E2137), CSA Certified (C22.2 No. 248.15)
- Physical Size: 1.06" x 2.44"
- Operating Temperature: Up to 80°C
- Storage Temperature: -25°C to 80°C
- Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A3T125
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A3T
- Type : A3T
- Voltage : 300
- Amperage : 125
- AIC rating : 200kA@300V
- Diameter : 1.06
- Class Rating : T
- Barrels : 1
- Clip Center : 1.7
Product Data
- UPC : 782001890209
- GTIN : 00782001890209
- Weight : 1
