Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

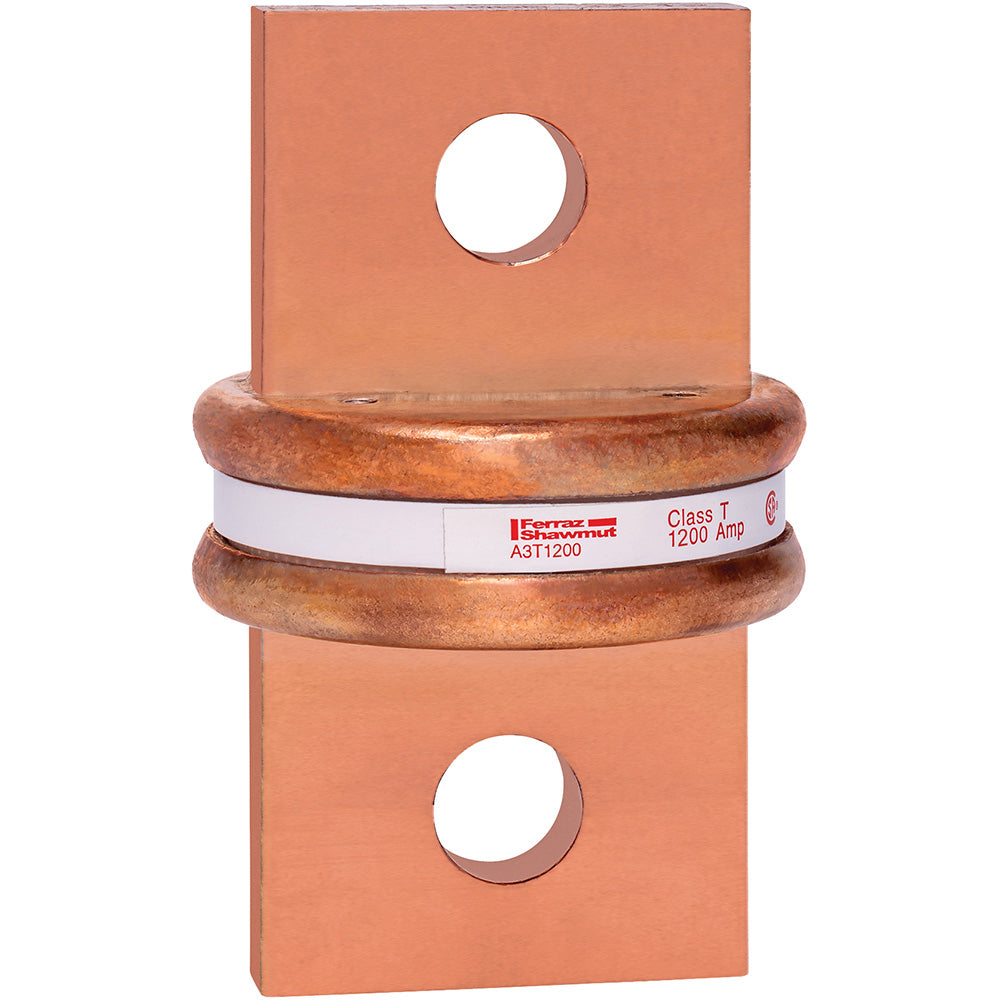

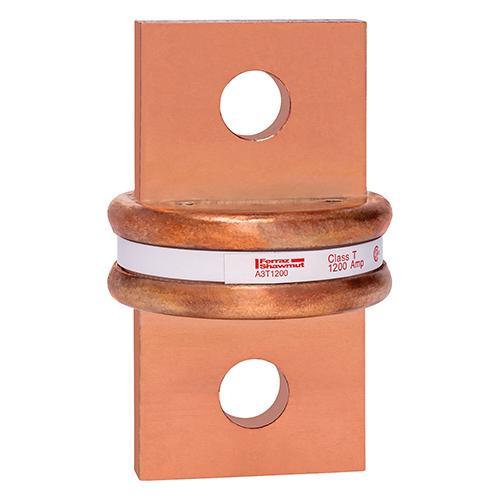

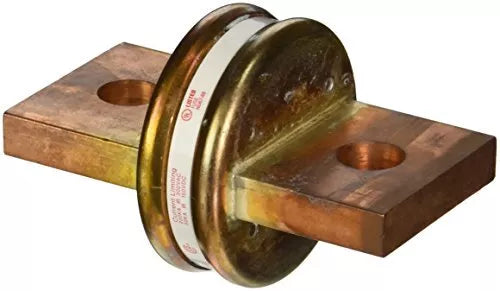

A3T1200
A3T1200 is a Mersen 1200 Amp 300 Volt Class T fast acting fuse designed for bolted mounting applications.This fuse features a 1200 Ampere rating with a 300 VAC and 160 VDC voltage rating. It is a Class T fast-acting fuse with a blade-type connection, providing extremely current-limiting protection. The fuse has a bolted mounting type and a high interrupt rating of 200,000 amperes at 300 VAC and 50,000 amperes at 160 VDC. It complies with UL 248/248-15 and CSA C22.2 certifications.
- Key Specifications
- Amperage: 1200 Amp
- Voltage Rating AC: 300 Volt
- Voltage Rating DC: 160 Volt
- Fuse Type: Class T Fast Acting
- Mounting Type: Bolted
- Connection Type: Blade
- Interrupt Rating: 200 kA at 300 VAC, 50 kA at 160 VDC
- Dimensions: Approximately 2.52" diameter x 4" length
- Certifications: UL 248/248-15, CSA C22.2
- Part Number: A3T1200
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A3T
- Type : A3T
- Voltage : 300
- Amperage : 1200
- AIC rating : 200kA@300V
- Diameter : 2.52
- Class Rating : T
- Barrels : 1
- Clip Center : 2.53
- UPC : 782001890841
- GTIN : 00782001890841
- Weight : 4
