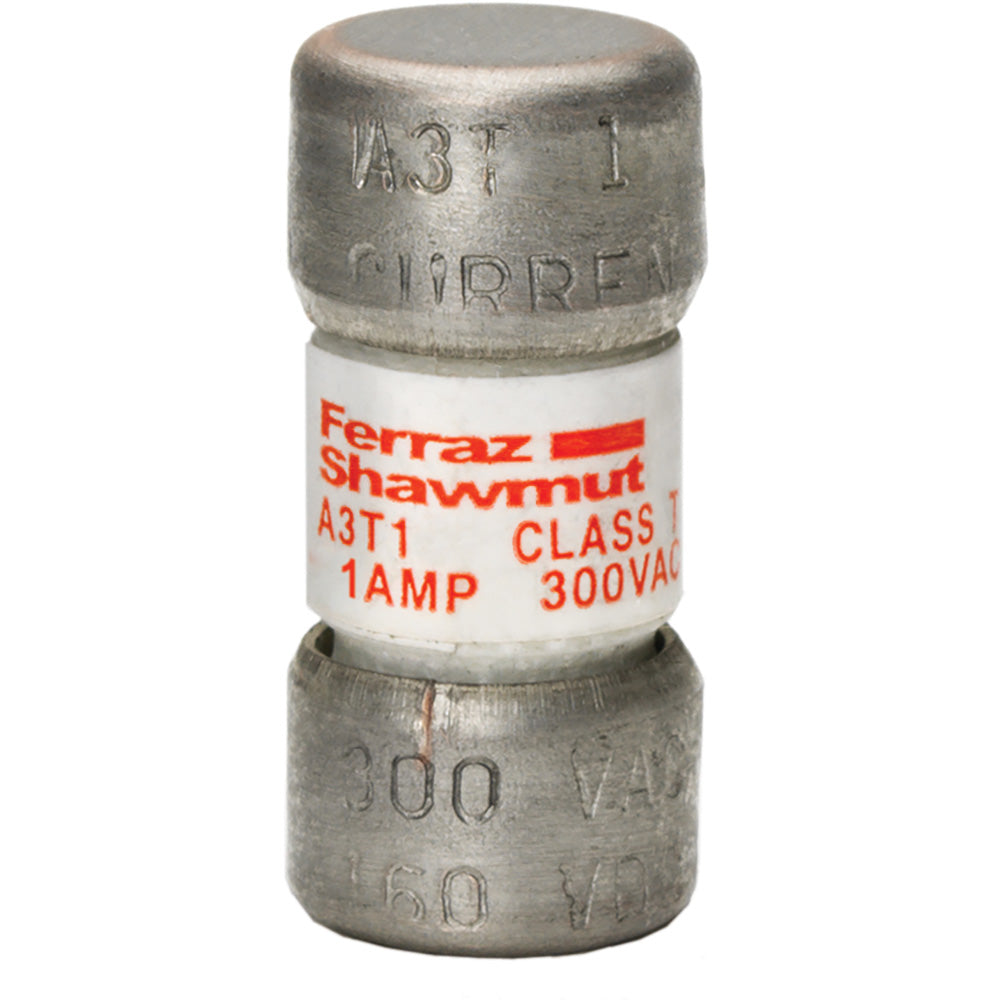

A3T1 - Mersen 1 Amp 300V Class T Fast-Acting Fuse, 1 Pole, Clip Mount, 200kA Interrupt Rating

A3T1

A3T1 is a Mersen Class T fast-acting fuse rated for 1 Amp and 300 Volts AC with a 1 pole clip mounting design.This fuse features extremely current limiting characteristics with a compact cylindrical glass melamine body measuring 0.41" x 0.88". It is UL listed to standard 248-15 File E2137 and CSA certified to C22.2 no. 248.15. The fuse has an AC interrupting rating of 200,000 AIC and DC interrupting rating of 50,000 AIC, suitable for low voltage circuit protection. The ferrule terminal type and copper connection material ensure reliable electrical contact.

Key Specifications
• Amperage: 1 Amp
• Voltage Rating: 300 VAC / 160 VDC
• Fuse Class: Class T
• Trip Type: Fast-Acting
• Interrupt Rating: 200,000 AIC AC / 50,000 AIC DC
• Poles: 1
• Mounting Type: Clip
• Body Material: Glass Melamine
• Terminal Type: Ferrule
• UL Listed: Yes, UL 248-15 File E2137
• CSA Certified: Yes, C22.2 no. 248.15
• Dimensions: 0.41" diameter x 0.88" length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A3T1
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : A3T
• Type : A3T
• Voltage : 300
• Amperage : 1
• AIC rating : 200kA@300V
• Diameter : 0.41
• Class Rating : T
• Barrels : 1



Product Data

• UPC : 782001890018
• GTIN : 00782001890018
• Weight : 5
