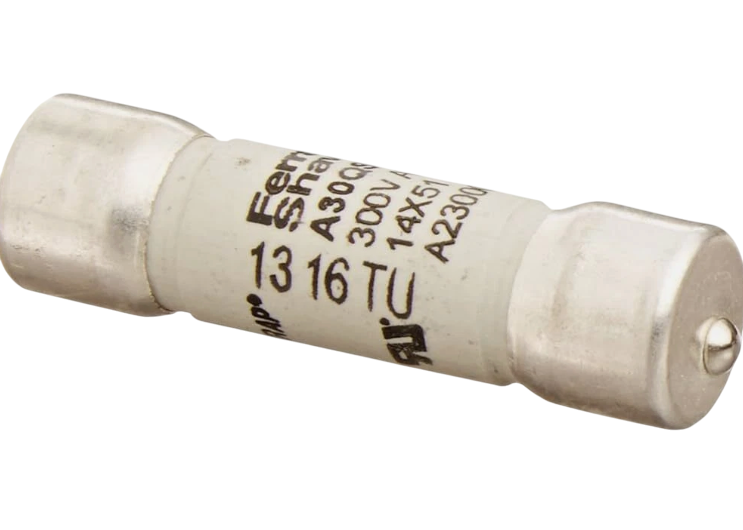

A30QS8-1 - Eaton 8A 300V Semiconductor Fast Acting Fuse, 1 Pole, 200kA AC Interrupt Rating

A30QS8-1

A30QS8-1 is an 8 amp, 300 volt semiconductor fast acting fuse designed for high-speed current limiting protection.This Eaton semiconductor fuse provides reliable protection for power semiconductors and heavy-duty rectifiers up to 300V AC/DC. It features a 1 pole configuration with a fast acting trip unit and a high interrupting rating of 200,000 AIC AC and 100,000 AIC DC. The fuse is UL recognized (UL File E60314) and suitable for use in demanding industrial and electronic applications requiring superior DC capabilities.

• Amperage: 8 Amps
• Voltage Rating: 300V AC/DC
• Poles: 1
• Mounting Type: Semiconductor Fuse
• Interrupting Rating: 200,000 AIC AC, 100,000 AIC DC
• Fast Acting, Current Limiting
• Physical Size: 0.56" x 2"
• UL Recognized Component (UL File E60314)
• Protection for Power Semiconductors and Heavy Duty Rectifiers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A30QS8-1
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A30QS
• Voltage : 300
• Amperage : 8
• AIC rating : 200kA@300V
• Connection : Ferrule
• Diameter : 0.56
• Barrels : 1

Product Data

• UPC : 782001311865
• Country of Origin : Tunisia
• Dimensions : Not Applicable x 2" x
• Weight : 0.08
• Certification : CE, UL Recognized, Guide JFHR2, CSA Approved
