Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
A30QS60-4

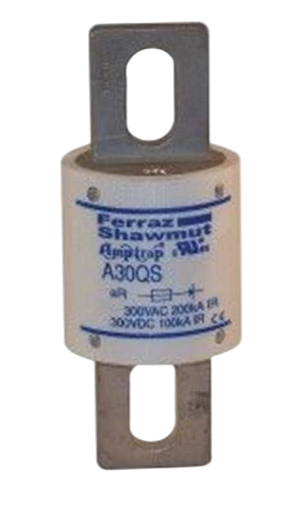

A30QS60-4 is a Ferraz Shawmut semiconductor fuse designed for fast acting current limiting protection at 60 amps and 300 volts AC/DC.
This fuse provides superior protection for power semiconductors such as diodes and SCRs, featuring a 1.5" x 3.84" ceramic body with bolt-on mounting. It has an interrupt rating of 200,000 AIC AC and 100,000 AIC DC, making it suitable for heavy-duty rectifiers and power supplies up to 300V. The A30QS60-4 is UL recognized and equivalent to Bussmann FWX style fuses.
- Key Specifications
- Amperage: 60A
- Voltage Rating: 300V AC/DC
- Fuse Type: Semiconductor, Fast Acting
- Interrupt Rating: 200,000 AIC AC, 100,000 AIC DC
- Mounting Type: Bolt-On (Stud Mount compatible)
- Body Material: Ceramic
- Physical Size: 1.5" x 3.84"
- Series: A30QS Amp-Trap
- UL Recognized Component (UL File E60314)
- Current Limiting
- Equivalent to Bussmann FWX Style
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A30QS60-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A30QS
- Voltage : 300
- Amperage : 60
- AIC rating : 200kA@300V
- Connection : Bolt-In
- Diameter : 0.08
- Barrels : 1
Product Data
- Weight : 0.15
