Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
A30QS5-1

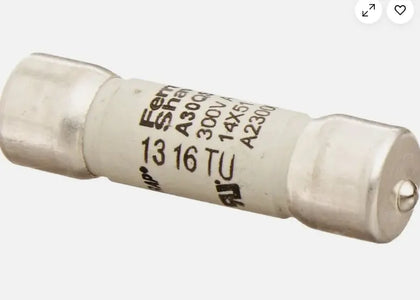

A30QS5-1 is a Ferraz Shawmut A30QS 5A 300V semiconductor fast-acting fuse designed for reliable circuit protection in low-voltage applications. This cylindrical ceramic fuse features a 0.56" diameter and 2" length, providing high-speed, current-limiting protection for sensitive semiconductor equipment. It is UL recognized and meets CE, CSA, and JFHR2 standards for safety and performance.
- Amperage: 5A
- Voltage: 300V AC/DC
- Interrupt Rating: 200kA AC, 100kA DC
- Series: A30QS
- Speed: Fast Acting
- Body Material: Ceramic
- Mounting Type: Non-Rejection Block
- Standards: UL Recognized, CE, CSA, JFHR2
- Physical Size: 0.56" x 2"
- Visual Indication: Non-Indicating
- Element: Single
- Application: Semiconductor Protection
Specifications
- Part Number: A30QS5-1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A30QS
- Voltage : 300
- Amperage : 5
- AIC rating : 200kA@300V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- Weight : 0.08
