Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

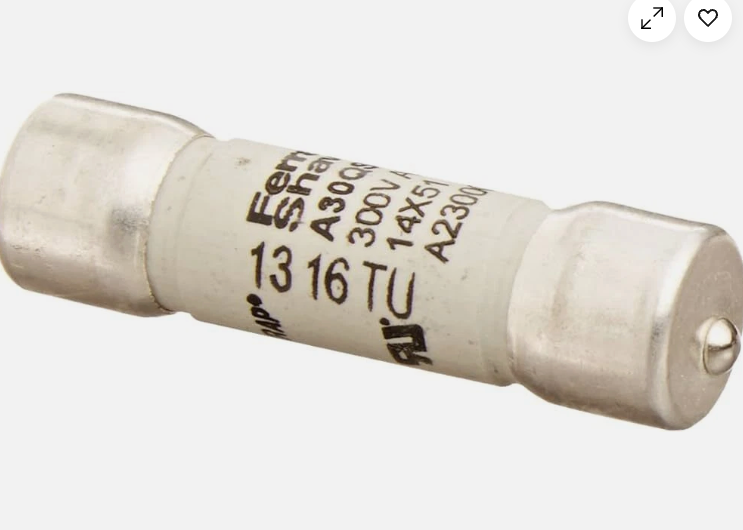

A30QS4-1
A30QS4-1 is a 4 amp, 300 volt fast acting semiconductor fuse from Eaton's A30QS series designed for power semiconductor protection.This fuse features low I2t to minimize damage to protected components during short circuits, controlled arc voltage to reduce stress on circuit components, and is current limiting with superior DC capabilities. It is UL recognized and suitable for protecting power semiconductors such as diodes and SCRs at 300V or less.
- Amperage: 4A
- Voltage Rating: 300VAC/DC
- Poles: Single pole
- Mounting Type: Ferrule (1 barrel)
- Interrupt Rating: 200kA AC, 100kA DC
- Series/Frame: A30QS
- Fuse Type: Fast acting semiconductor fuse
- UL Recognized component
- Current limiting
- Low I2t for component protection
- Controlled arc voltage
- Indicator options available
Specifications
- Part Number: A30QS4-1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A30QS
- Voltage : 300
- Amperage : 4
- AIC rating : 200kA@300V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 782001311827
- Country of Origin : Tunisia
- Dimensions : Not Applicable x 2" x
- Weight : 12
- Certification : CE, UL Recognized, Guide JFHR2, CSA Approved
