Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

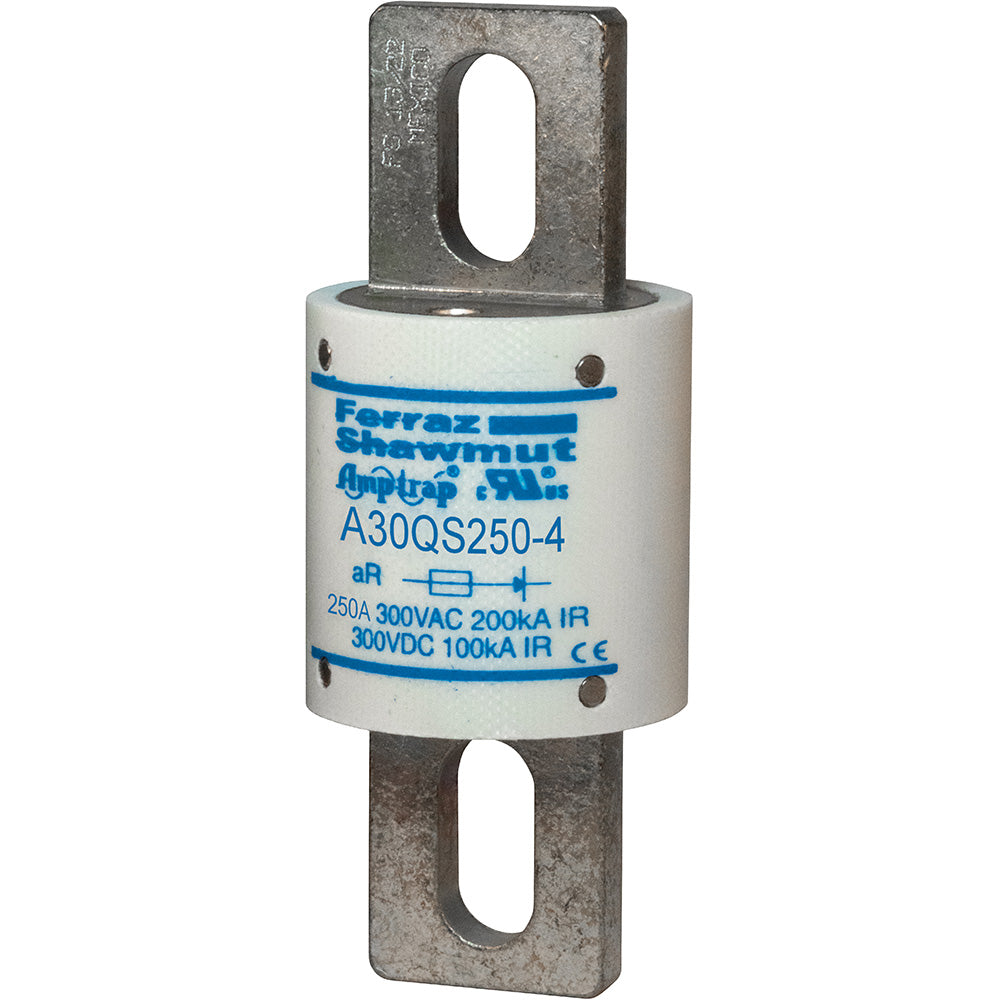

A30QS250-4
A30QS250-4 is a high-speed semiconductor fuse designed for the protection of power semiconductors such as rectifiers and power supplies. This fuse features a fast-acting, current-limiting design for reliable circuit protection in demanding applications. The A30QS250-4 is part of the Amp-Trap A30QS series and is suitable for both AC and DC circuits up to 300 volts. Its bolt-on mounting style provides secure installation, and the fuse is UL recognized for safety and compliance. The robust construction ensures superior DC capabilities and high interrupting ratings for enhanced protection.
- 250 Amps
- 300 Volts AC/DC
- Fast Acting
- Current Limiting
- Bolt-On Mounting
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- Series: A30QS
- UL Recognized
- Physical Size: 1.50" x 3.84"
- Protection of Power Semiconductors
- Superior DC Capabilities
Specifications
- Part Number: A30QS250-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 300
- Amperage : 250
- AIC rating : 200kA@300V
- Connection : Bolt-In
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 078200128082
- GTIN : 00782001280826
- Country of Origin : Mexico
- Dimensions : x 3.84 in x
- Weight : 1
- Certification : CE, UL Recognized, Guide JFHR2, File E60314
