Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A30QS200-4

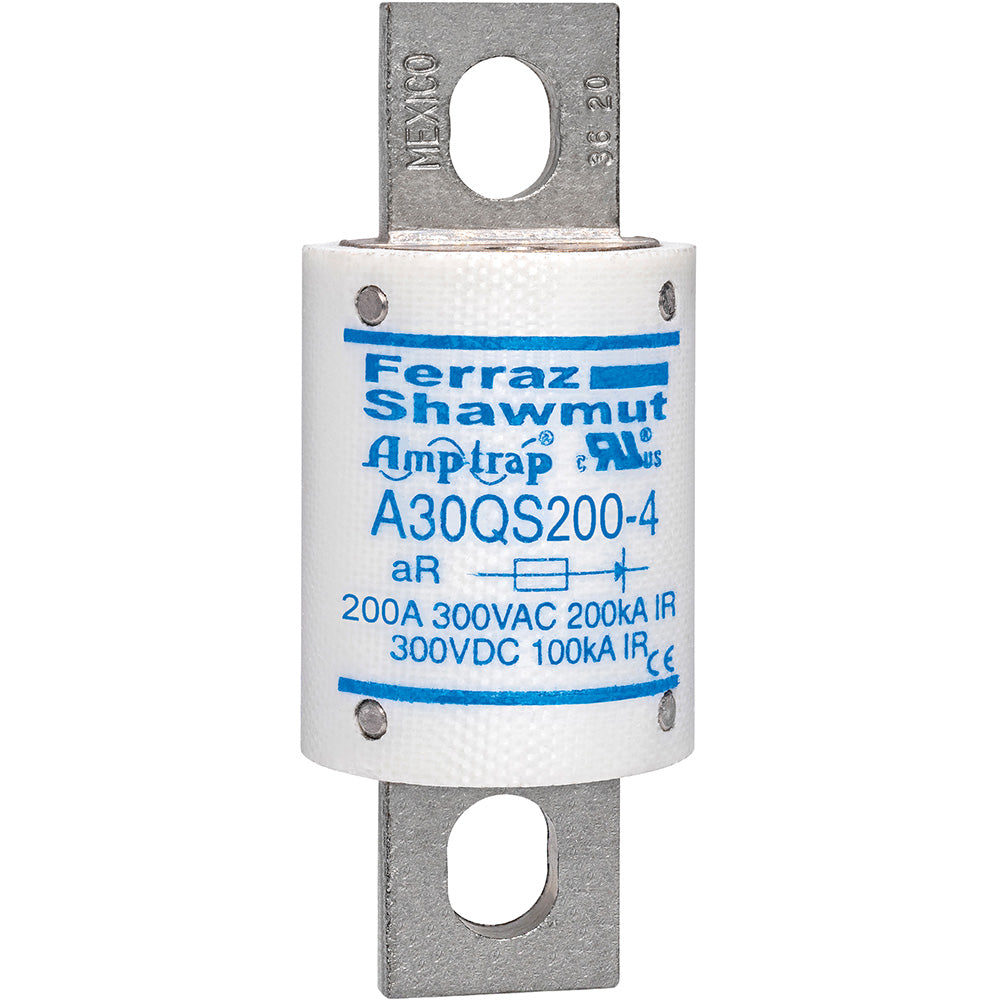

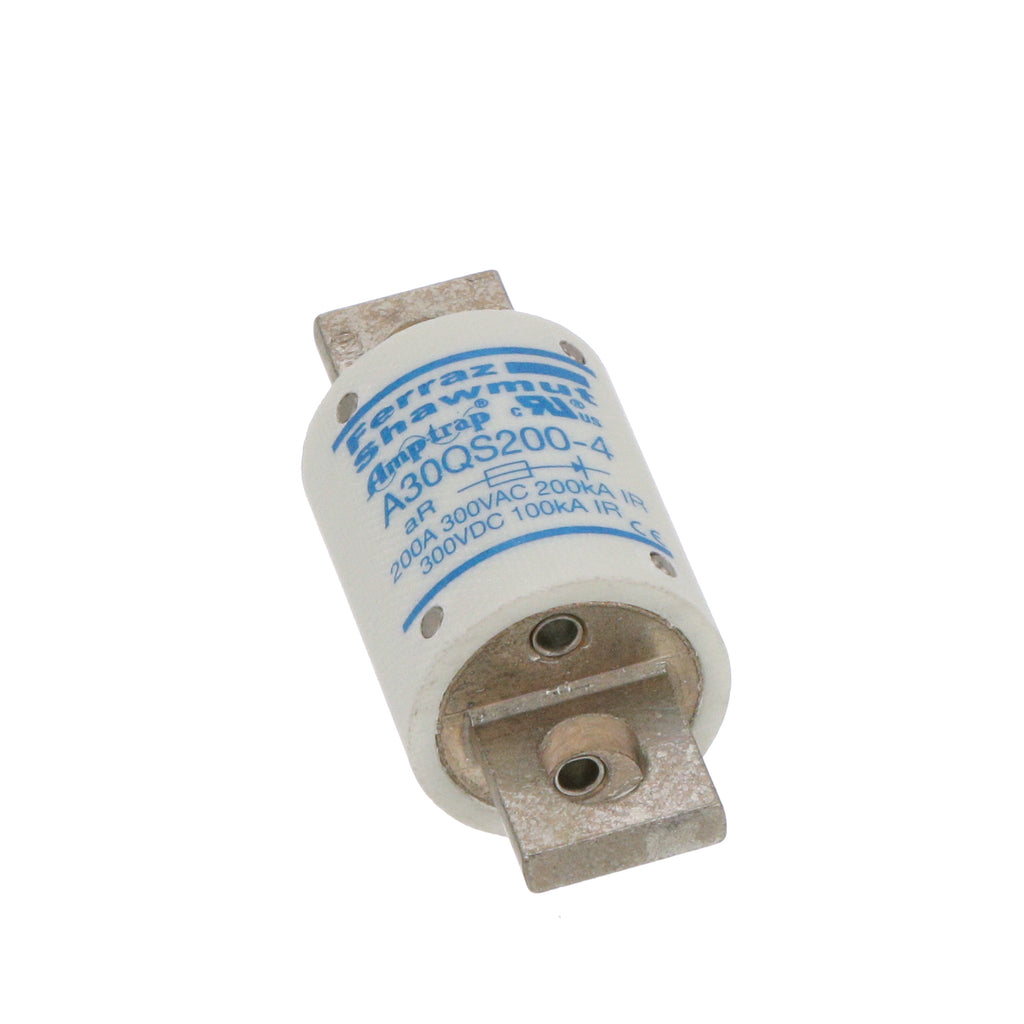

A30QS200-4 is a 200 Amp, 300 Volt semiconductor fuse from Eaton's A30QS series designed for fast-acting protection.This fuse features a bolt-on body style and is suitable for protecting power semiconductors and heavy-duty rectifiers.
- Amperage: 200A
- Voltage Rating: 300V AC / 300V DC
- Poles: 1 Pole
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA at 300V DC, 200kA at 300V AC
- Series: A30QS
- Speed Type: Fast-Acting
- Body Material: Fiberglass
- Fuse Size: 3 1/8 in length x 1 1/4 in diameter
- UL Recognized Component (UL File E60314, Guide JFHR2)
- Non-Indicating, Single Element
- Equivalent to Bussmann FWX Style
Specifications
- Part Number: A30QS200-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A30QS
- Voltage : 300
- Amperage : 200
- AIC rating : 200kA@300V
- Connection : Bolt-In
- Diameter : 1.22
- Barrels : 1
Product Data
- UPC : 782001280802
- GTIN : 00782001280802
- Country of Origin : Mexico
- Dimensions : x 3.13 in x
- Weight : 5
- Certification : CE, UL Recognized, Guide JFHR2, File E60314
