Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

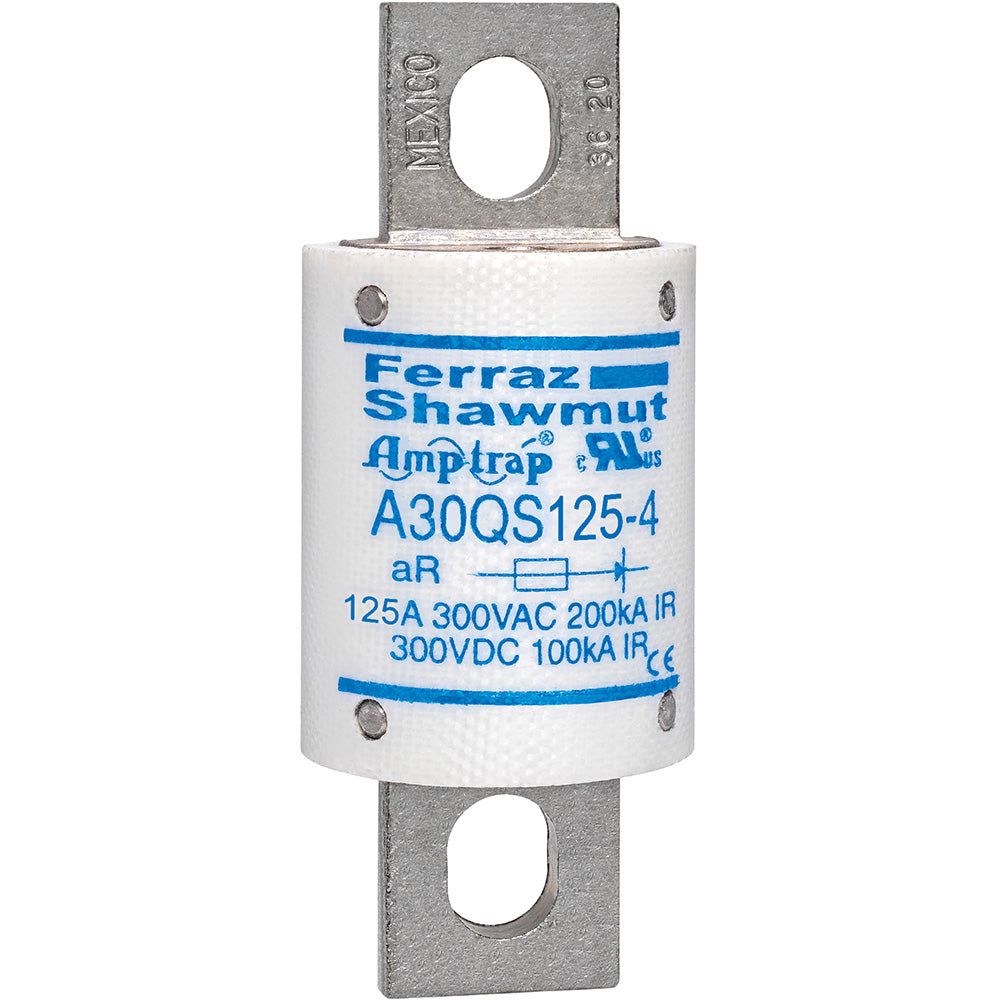

A30QS125-4
A30QS125-4 is a 125 amp, 300 volt semiconductor fuse from Eaton's Amp-Trap series designed for fast acting protection.This Eaton A30QS125-4 fuse features a bolted mounting type with tin-plated brass blade terminals, providing reliable current limiting and high interrupt rating suitable for semiconductor protection applications. It is UL recognized and designed for both AC and DC voltages up to 300 volts.
- Amperage: 125 A
- Voltage: 300 VAC/DC
- Poles: Single pole
- Mounting Type: Bolted
- Connection Type: Blade terminals
- Interrupt Rating: 200kA AC, 100kA DC

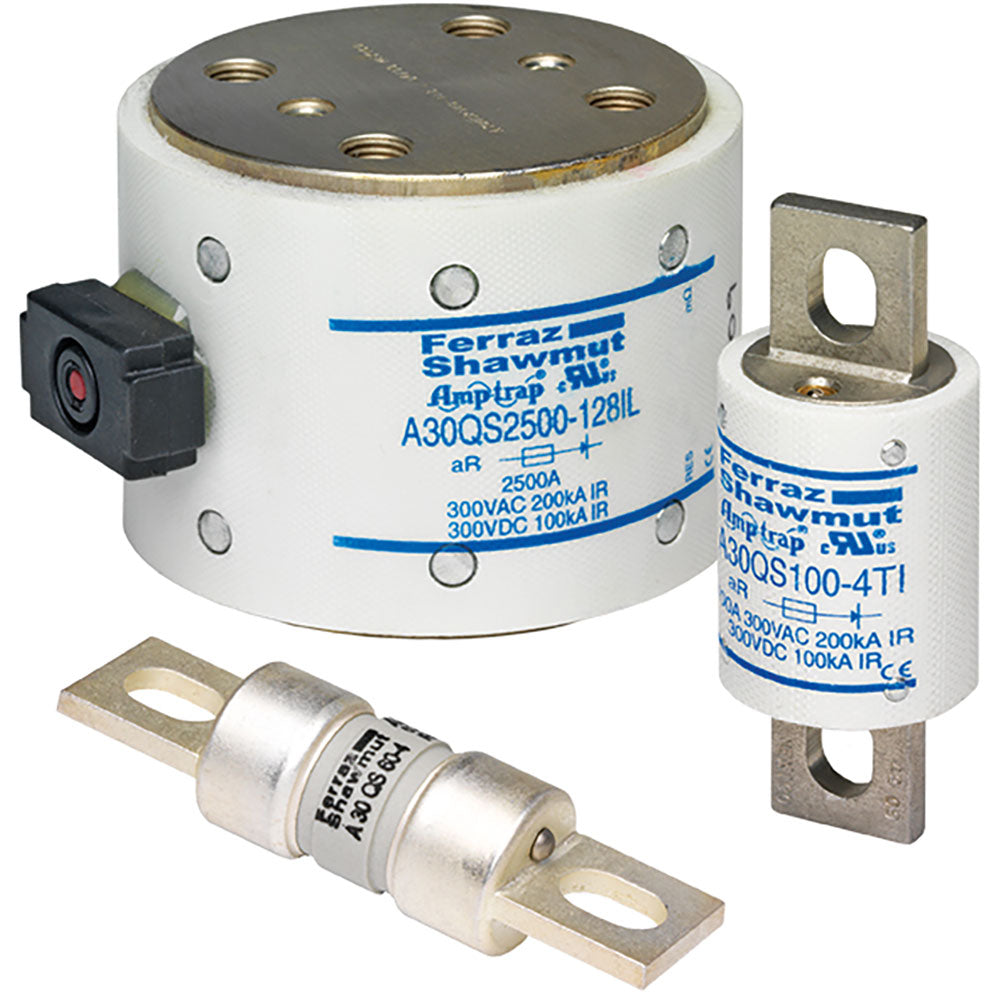

- Series: Amp-Trap A30QS
- Fast acting, current limiting
- UL recognized component
- Connection Material: Tin-plated brass
Specifications
- Part Number: A30QS125-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A30QS
- Voltage : 300
- Amperage : 125
- AIC rating : 200kA@300V
- Connection : Bolt-In
- Diameter : 1.22
- Barrels : 1
Product Data
- UPC : 782001280758
- GTIN : 00782001280758
- Country of Origin : Mexico
- Dimensions : x 3.13 in x
- Weight : 0.3
- Certification : CE, UL Recognized, Guide JFHR2, File E60314
