Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

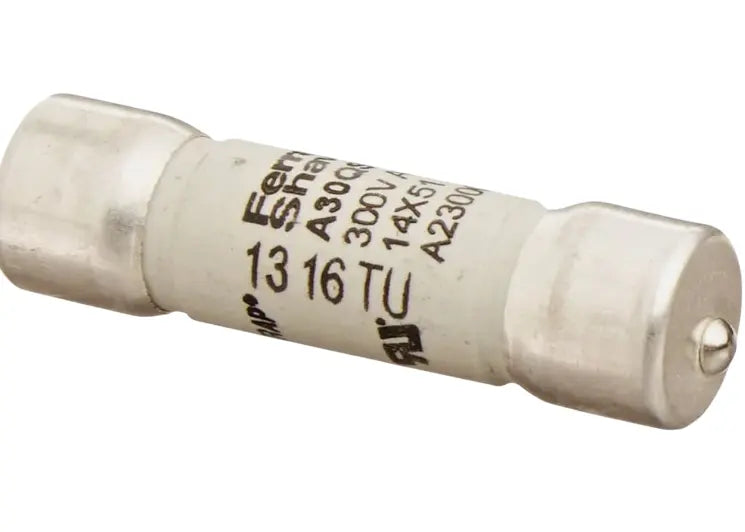

A30QS12-1
A30QS12-1 is a 12 amp, 300 volt semiconductor fast-acting fuse from Eaton's A30QS series designed for reliable protection of power semiconductors.This fuse features a bolt-on body style with a fast-acting trip unit, suitable for AC and DC applications up to 300 volts. It provides current-limiting protection with a high interrupt rating of 200kA, minimizing damage to sensitive components such as diodes and SCRs. The compact physical size and controlled arc voltage reduce stress on circuit elements, ensuring enhanced durability and performance.
- Amperage: 12A
- Voltage Rating: 300V AC/DC
- Series: A30QS
- Fuse Type: Semiconductor Fast-Acting
- Body Style: Bolt-On
- Interrupt Rating: 200kA
- Poles: 1 (single barrel)
- Mounting Type: Bolt-On
- Current Limiting: Yes
- Physical Size: 0.56" diameter x 2" length
- Application: Power semiconductor protection
- Certifications: Industry standard semiconductor fuse certifications
Specifications
- Part Number: A30QS12-1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 300
- Amperage : 12
- AIC rating : 200kA@300V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 782001311896
- Country of Origin : Tunisia
- Dimensions : x 2 in x
- Weight : 12
- Certification : CE, UL Recognized, Guide JFHR2, CSA Approved
