Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage
Description

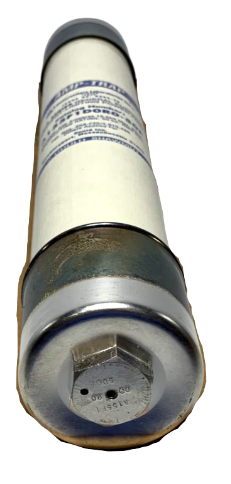

A3-66S1000TD
A3-66S1000TD is a Mersen A3T Class T fast-acting fuse designed for high current-limitation applications in power distribution equipment. This fuse combines superior current-limiting capability with a compact physical size, making it ideal for load centers, panelboards, switchboards, circuit breakers, and metering centers. The bolted mounting configuration and unique dimensions prevent substitution by other fuse classes while ensuring permanent identification through blade-stamped catalog numbers. The glass melamine body provides superior dimensional stability and reliable performance in demanding electrical environments.
- Amperage Rating: 1000 A
- Voltage Rating: 660 VAC
- Fuse Class: Class T
- Speed/Characteristic: Fast-Acting
- Mounting Type: Bolted
- Interrupt Rating: 200 kA
- AC/DC Rated: AC/DC
- UL Category Code: JDDZ
- Frequency: 50/60 Hz
- RoHS Compliant: Yes
- Max Operating Temperature: 80 degrees C
- UL File Number: File E2137
Specifications
- Part Number: A3-66S1000TD
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage
- Type : A
- Voltage : 660
- Amperage : 1000
- Class Rating : SB
Product Data
- Weight : 3
