Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

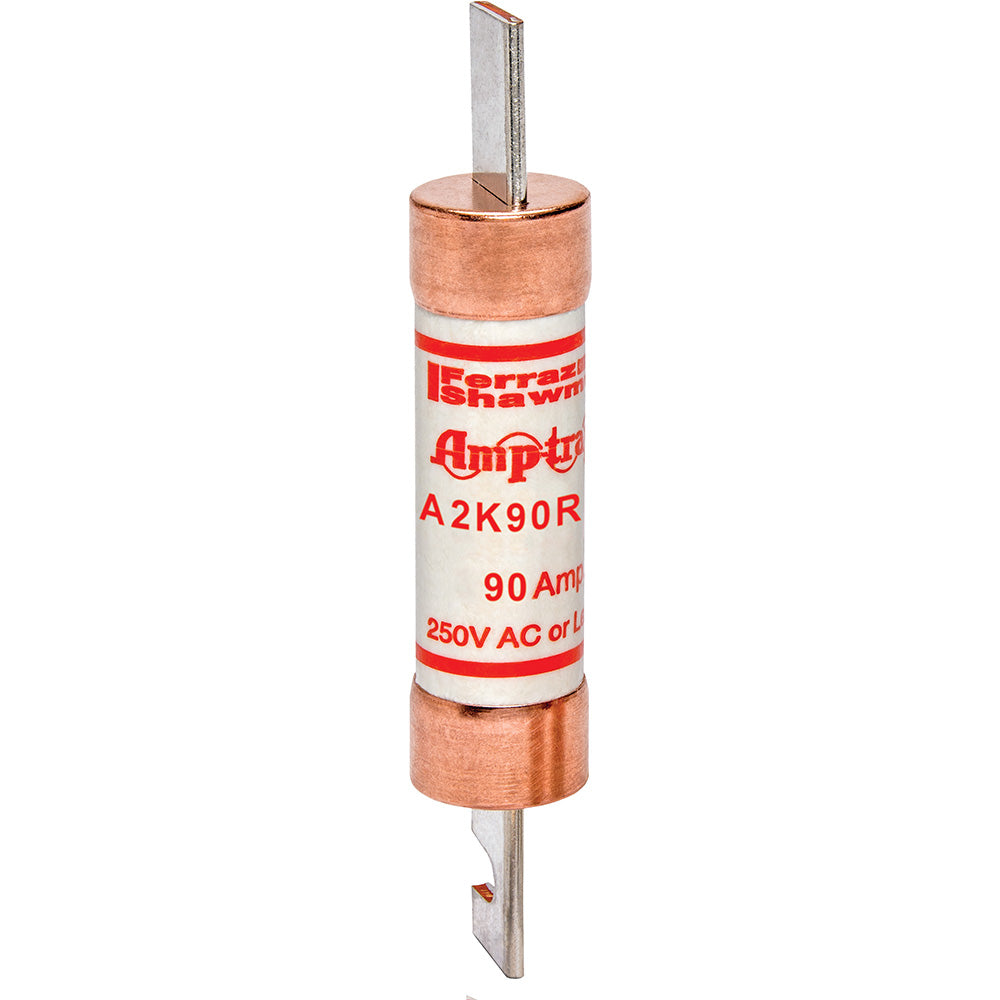

A2K90R
A2K90R is a Class RK1 fast-acting current-limiting fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a 90A current rating and a 250V AC/DC voltage rating, making it suitable for a wide range of electrical systems. The A2K90R fuse is constructed with a blade Amp-Trap design for secure mounting and rejection style to prevent incorrect installation. It offers a high interrupting rating of 200kAIC and is UL 248/248-12 and CSA C22.2 certified for safety and compliance. The fuse is current-limiting and fast-acting, providing excellent protection against short circuits and overloads.
- Part Number: A2K90R
- Manufacturer: Mersen, Ferraz Shawmut
- Amperage: 90A
- Voltage: 250V AC/DC
- Class: RK1
- Interrupting Rating: 200kAIC
- Mounting Type: Blade Amp-Trap
- Physical Size: 1 1/16" x 5 7/8"
- Acting Type: Fast-Acting
- Current Limiting: Yes
- Rejection Style: Yes
- Certifications: UL 248/248-12, CSA C22.2
Specifications
- Part Number: A2K90R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A2K-R Series
- Type : A2K-R
- Voltage : 250
- Amperage : 90
- AIC rating : 200kA@250V
- Diameter : 1.06
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001915216
- GTIN : 00782001915216
- Weight : 5
