Product Info
- Manufacturer: Mersen
- Sub-Category: Low Voltage Fuse
Description

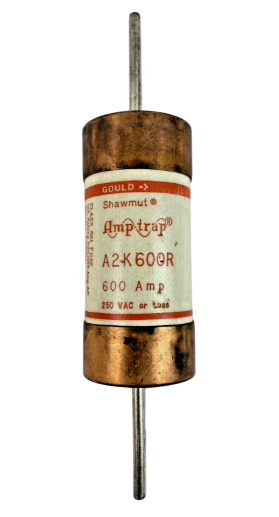

A2K600R
A2K600R is a Mersen Ferraz Shawmut Class RK1 fast-acting fuse rated for 600 Amps and 250 Volts AC/DC.This A2K-R series fuse features a current-limiting design with a clip mounting type and a 200kA interrupt rating.
- Key Specifications
- Amperage: 600A
- Voltage Rating: 250VAC/VDC
- Fuse Class: RK1
- Fuse Type: Fast-Acting Blade Amp-Trap
- Interrupt Rating: 200kAIC
- Mounting Type: Clip
- Physical Size: 2 9/16 inch diameter x 10 3/8 inch length
- Insulation Material: PolyTube
- Series: A2K-R
- Certifications: UL 248/248-12, CSA C22.2
- Part Number: A2K600R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A2K-R Series
- Type : A2K-R
- Voltage : 250
- Amperage : 600
- AIC rating : 200kA@250V
- Diameter : 2.56
- Class Rating : RK1
- Barrels : 1
- UPC : 782001915414
- GTIN : 00782001915414
- Weight : 2
